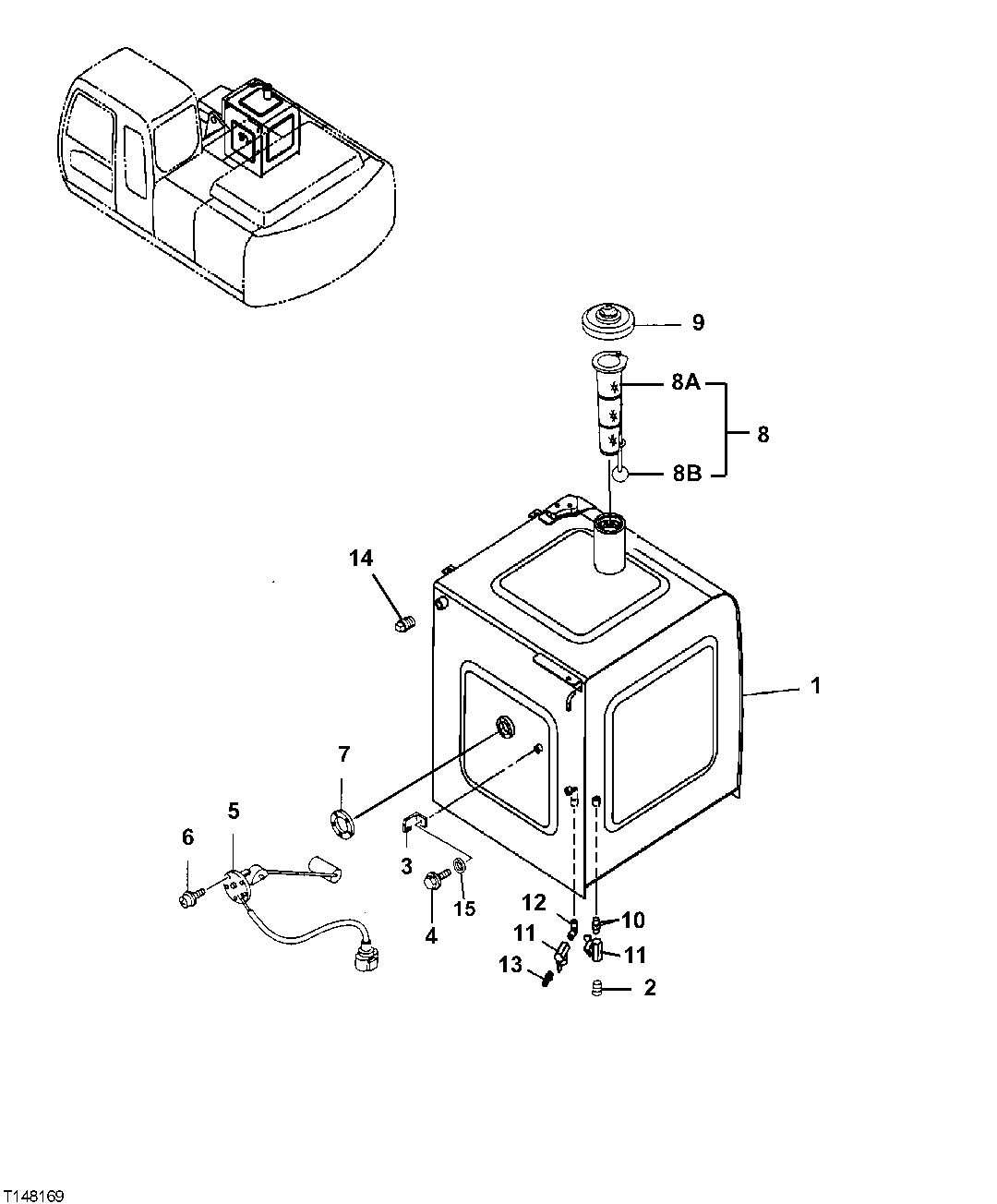

Запчасти John Deere 30CLC 85 - FUEL TANK 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

5007087J

Fuel Tank

SUB FOR TH5007087J

1шт.

2

94-2013

Fitting Plug

1шт.

3

4257159

Bracket

SUB FOR AT154243

1шт.

4

19M8324

Cap Screw

M10 X 16 ( AT153802 NLA)

1шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

5

4660782

Float

SUB FOR AT154239, 4257128

1шт.

6

21M7278

Screw

M5 X 10

5шт.

7

T211051

Gasket

SUB FOR U42323

1шт.

8

4353560

Strainer

SUB FOR AT213970

1шт.

8A

4121496

Fuel Filter

SUB FOR TH100509

1шт.

8B

Float

1шт.

9

4361638

Cap

KEY LOCKABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

AT323462

Filler Cap

(SUB FOR AT175989 OR 4361638)(CAN BE LOC KED WITH PADLOCK) (PADLOCK NOT INCLUDED)

1шт.

10

T116057

Fitting

1шт.

11

4374265

Drain Valve

SUB FOR AT177419

2шт.

12

4449361

Elbow Fitting

SUB FOR TH4449361

1шт.

13

4449362

Adapter Fitting

SUB FOR TH4449362

1шт.

14

94-2013

Fitting Plug

SUB FOR TH100648

1шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

1шт.
