Запчасти John Deere 30CLC 80 - AIR CLEANER (SN 603841- ) 0520 INTAKE SYSTEM

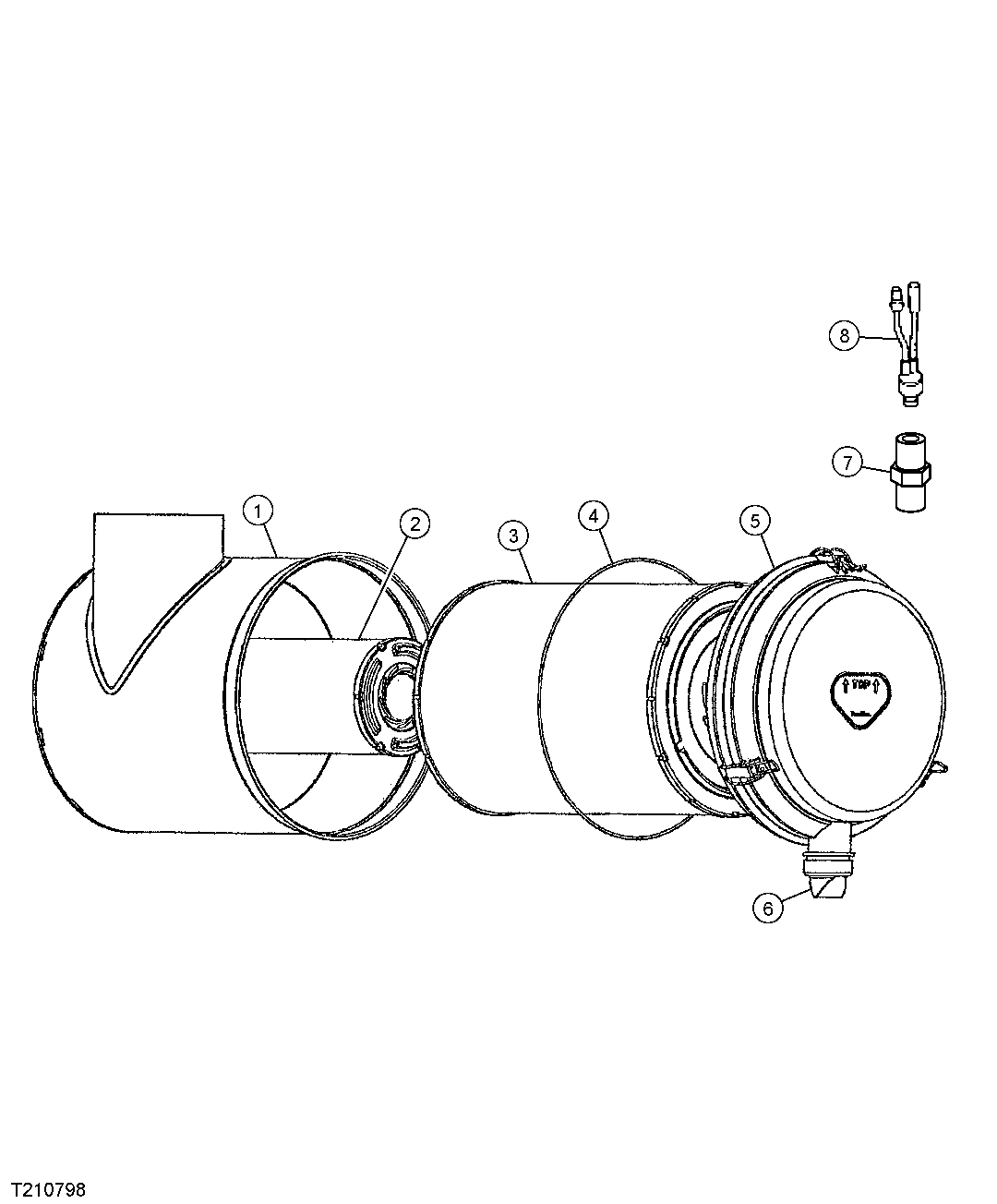

Схема запчастей John Deere 30CLC - 80 - AIR CLEANER (SN 603841- ) 0520 INTAKE SYSTEM

Артикул

Название

Примечание

Количество

1

AT324260

Air Cleaner

(SUB FOR 4620618)(USE WITH INTAKE COVER DH700114 USED ON MACHINE SN 505731- )

1шт.

2

AT323638

Filter Element

Secondary (SUB FOR P811312 OR P532504)

1шт.

3

T191321

Filter Element

Primary (SUB FOR P812362, P532503, F434391, F435741)

1шт.

4

T216561

O-Ring

(SUB FOR P778220 OR P537699)

1шт.

5

AT300707

Cover

(SUB FOR P836956)

1шт.

6

R48568

Valve

(SUB FOR P826060)

1шт.

7

AR44361

Fitting

(SUB FOR P800124 OR AT323639)

1шт.

8

AT323641

Indicator

(SUB FOR REX018171)

1шт.

Выбрано товаров: 8
