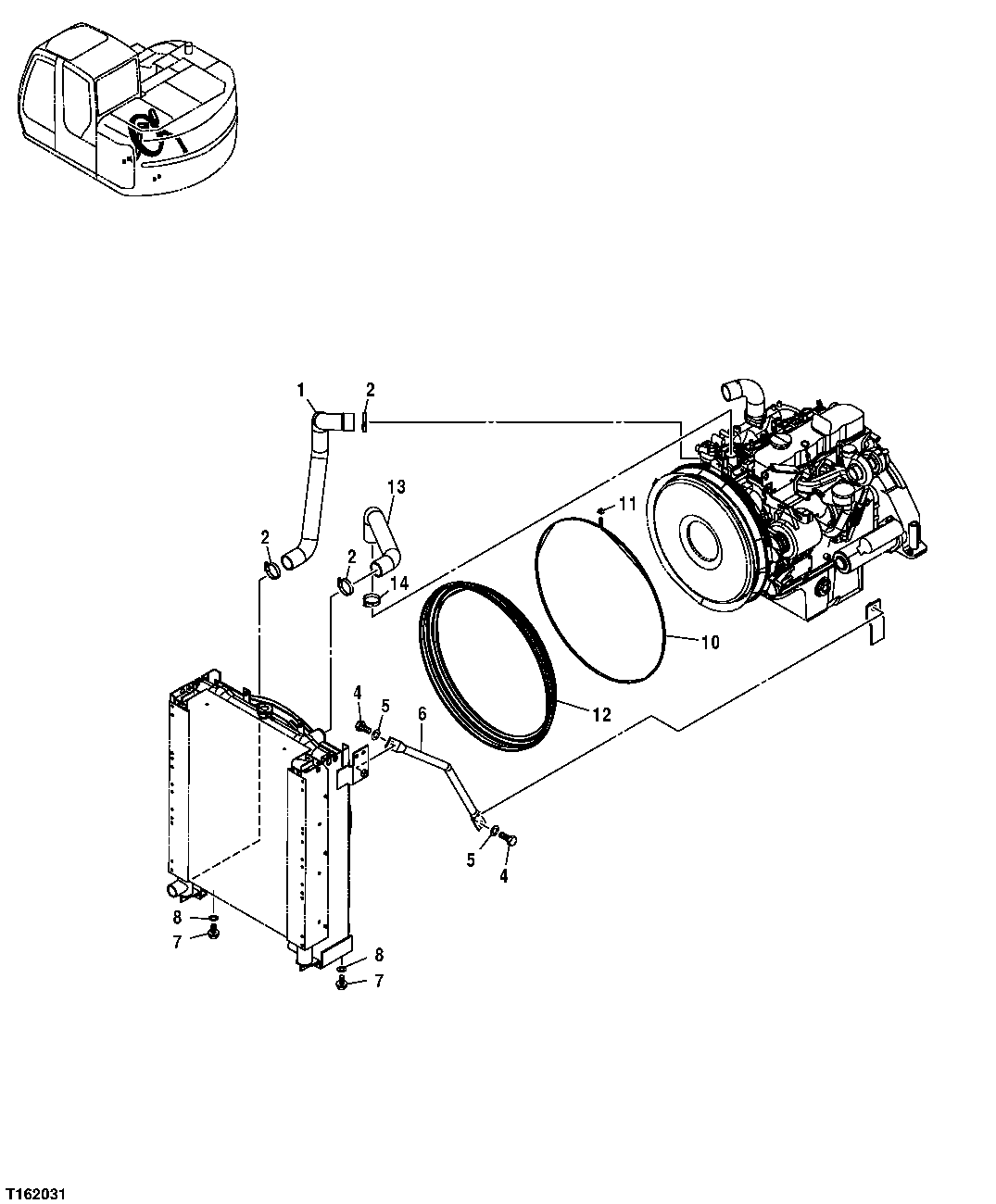

Запчасти John Deere 25CLC RTS 52 - RADIATOR SUPPORT 0511 RADIATOR & FAN SHROUD

1

2046565

Radiator Hose

1шт.

2

AR65293

Clamp

3шт.

4

19M8035

Cap Screw

M16 X 35 (SUB FOR J921635)

2шт.

5

12H294

Lock Washer

5/8" (SUB FOR A590916)

2шт.

6

3088910

Latch

1шт.

7

19M8011

Cap Screw

M12 X 30 (SUB FOR J011230)

4шт.

12M7067

Lock Washer

12 mm

4шт.

8

24M7345

Washer

13.500 X 24 X 2.500 mm (SUB FOR J222012)

4шт.

10

4426225

Band

1шт.

11

4426044

Lock

1шт.

12

4444905

Isolator

1шт.

13

4618712

Radiator Hose

(SUB FOR 4446034, 4456330)

1шт.

14

TY22485

Hose Clamp

(SUB FOR 4357297)

1шт.
