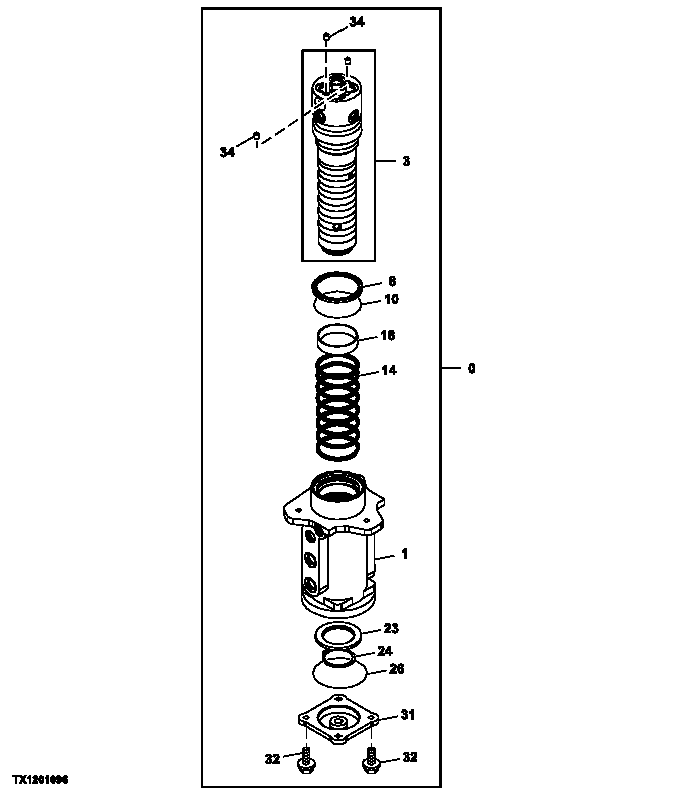

Запчасти John Deere 25CLC RTS 264 - Rotary Manifold Components (For Use With Blade) 4362 VALVES

0

PG200512

Manifold

SUB FOR 9193338 AND 9196167

1шт.

9219800

Manifold

NLA

1шт.

PG200516

Manifold Reman

REMAN FOR 9219800 OR 9196167

1шт.

1

Housing

1028616 NSEP

1шт.

3

Spindle

9181699 NSEP

1шт.

8

4410445

Seal

1шт.

10

4410446

O-Ring

1шт.

14

4406165

Seal

8шт.

18

4410066

Bushing

1шт.

23

3070250

Ring

1шт.

24

40M7048

Snap Ring

SUB FOR 991347

1шт.

26

CH16109

Packing

SUB FOR A810100

1шт.

31

2034607

Cover

1шт.

32

Screw With Washer

J271030 NLA

4шт.

19M7662

Cap Screw

M10 X 30

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

34

942011

Fitting Plug

SUB FOR 94-2011

2шт.
