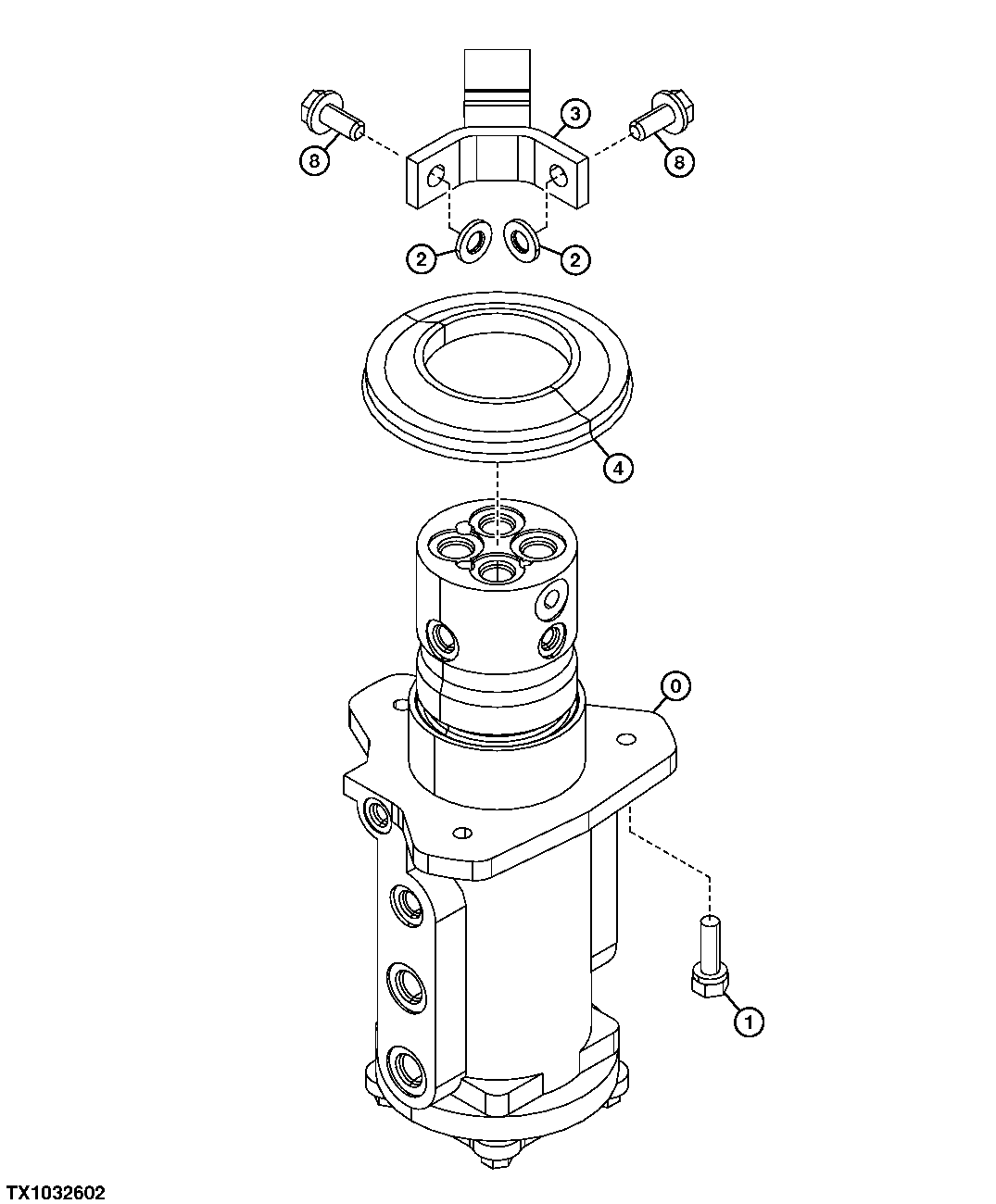

Запчасти John Deere 25CLC RTS 263 - Rotary Manifold and Mounting Hardware (With Blade) 4362 VALVES

0

PG200512

Manifold

(SUB FOR (1) 9193338 AND (1) 9196 167) See Separate Page For Detail

1шт.

9219800

Manifold

NLA

1шт.

PG200516

Manifold Reman

(REMAN FOR 9219800 OR 9196167)

1шт.

1

Bolt

( J271035 NLA)

3шт.

19M7550

Cap Screw

M10 X 35 (SUB FOR J901035)

3шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J222010)

3шт.

2

24M7345

Washer

13.500 X 24 X 2.500 mm (SUB FOR J222012)

2шт.

3

9755255

Stop

1шт.

4

4425270

Cover

1шт.

8

Bolt

( J271230 NLA)

2шт.

19M8011

Cap Screw

M12 X 30 (SUB FOR J901230)

2шт.

24M7345

Washer

13.500 X 24 X 2.500 mm (SUB FOR J222012)

2шт.
