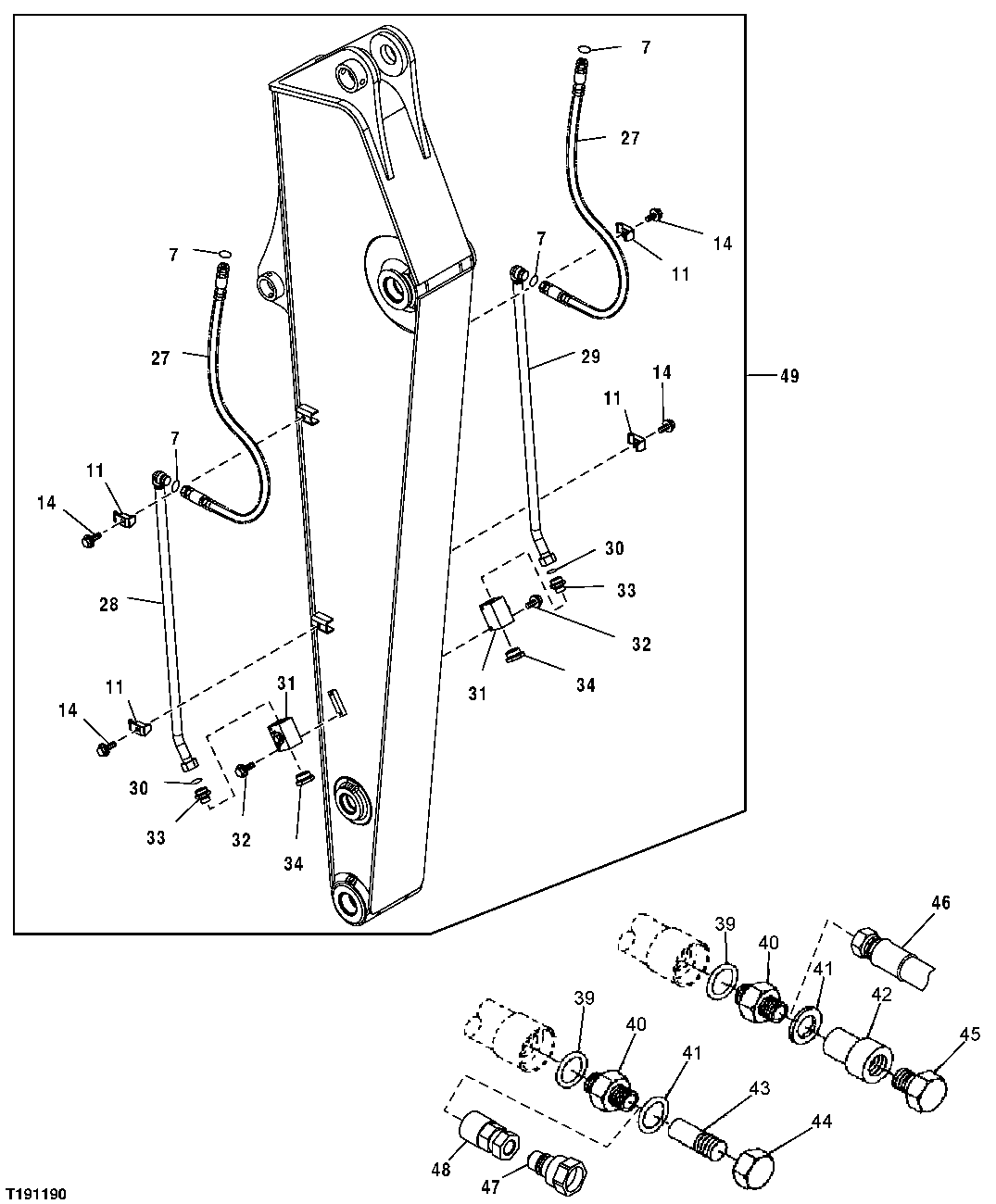

Запчасти John Deere 25CLC RTS 242 - Auxiliary Hydraulic Lines, Arm Lines 3363 LINES, HOSES AND FITTINGS

7

T77858

O-Ring

2шт.

8

9200504

Pressure Relief Valve

(NOT ILLUSTRATED)

2шт.

11

4190126

Clamp

4шт.

13

4141806

Clamp

6шт.

14

19M7363

Cap Screw

M12 X 60

6шт.

27

AT176051

Hydraulic Hose

SUB FOR AT302877

2шт.

28

AT318039

Line

SUB FOR 8083834

1шт.

29

AT318040

Line

SUB FOR 8084096

1шт.

30

T76938

O-Ring

2шт.

31

4447675

Flow Control Hyd. Valve

SUB FOR 4600164

2шт.

33

A853188

Adapter Fitting

2шт.

34

A885008

Pipe Plug

SUB FOR 4113926

2шт.

39

TH101926

O-Ring

2шт.

40

4189535

Adapter Fitting

(1" ORIFICE)

2шт.

AT318016

Adapter Fitting

SUB FOR 4189537, 3/4" ORIFICE

2шт.

AT301151

Fitting

(1" SAE, MALE)

2шт.

X1216F4OMXS

Adapter Fitting

(3/4", 37°)

2шт.

X16F4OMXS

Adapter Fitting

(1", 37°)

2шт.

AT305641

Fitting

(3/4" SAE, MALE)

2шт.

41

R29936

O-Ring

2шт.

42

AT186111

Quick Coupler

(1" FEMALE) (SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189410 NLA)

1шт.

43

AT186112

Quick Coupler

(1" MALE) (SCREW TOGETHER COUPLER)

1шт.

Kit

AT189409 NLA

1шт.

44

AT186113

Cap

1шт.

45

AT186114

Plug

1шт.

46

X1JS782016

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J97820-6

Hose Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

47

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16" SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16" SAE O-RING

2шт.

48

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16" SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16" SAE O-RING

2шт.

49

Field Installation Kit

(AUXILIARY HYDRAULIC LINE KIT) (ADDITI ONAL COMPONENTS ON PREVIOUS PAGES) (FOR MACHINES WITH LONG ARM (3.01M), ALSO O RDER (2) AT305719 HOSES) ( AT302700 NLA )

1шт.
