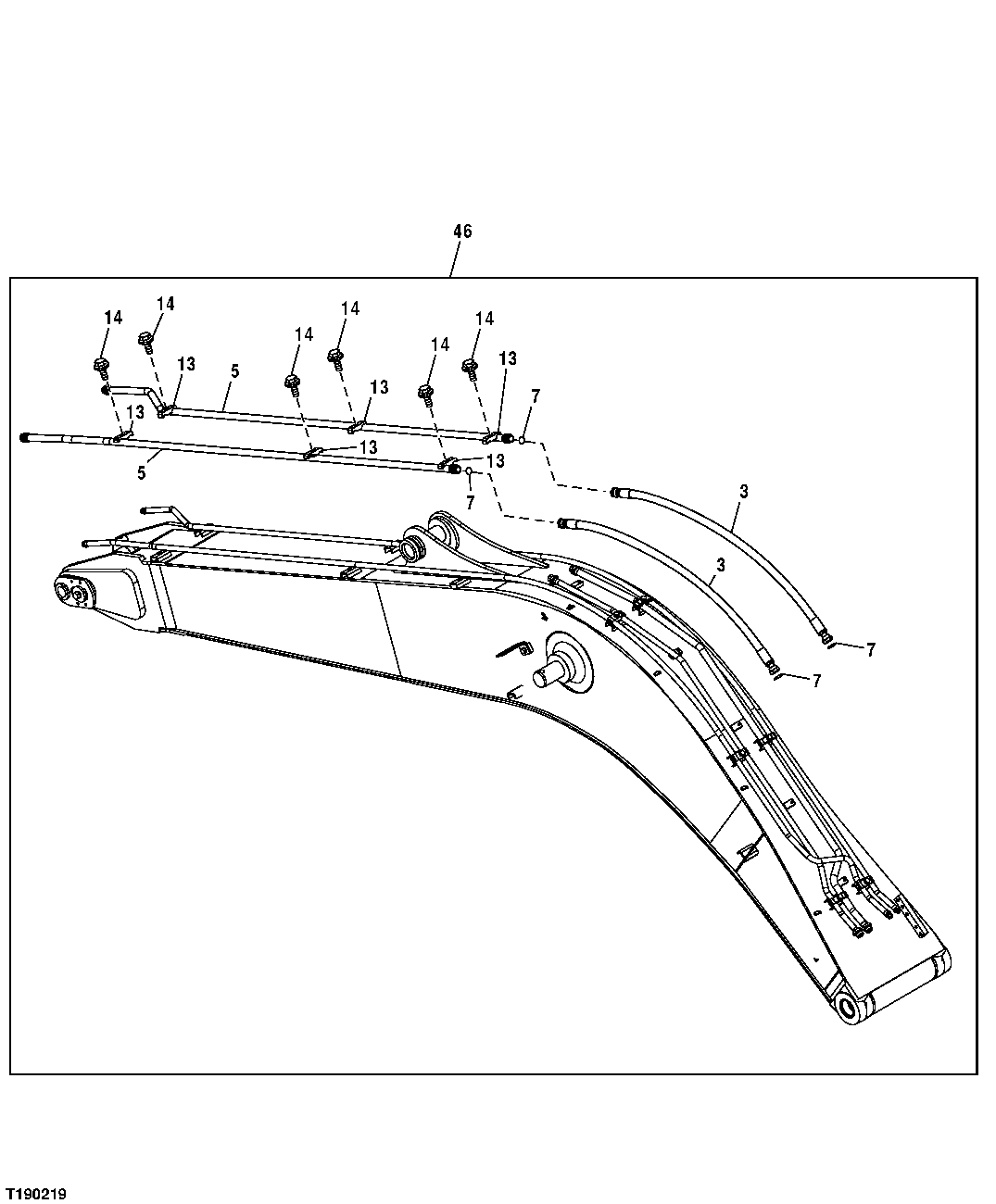

Запчасти John Deere 25CLC RTS 241 - AUXILIARY HYDRAULIC LINES (BOOM LINES) 3363 LINES, HOSES AND FITTINGS

3

AT302876

Hydraulic Hose

Fabricate

2шт.

5

AT160159

Oil Tube

2шт.

7

T77858

O-Ring

2шт.

13

4141806

Clamp

6шт.

14

19M7363

Cap Screw

M12 X 60

6шт.

46

Field Installation Kit

(AUXILIARY HYDRAULIC LINE KIT) (INCLUDES ITEMS ON PREVIOUS AND FOLLOWING PAGES) ( FOR MACHINES WITH LONG ARM (3.01M), ALSO ORDER (2) AT305719 HOSES) ( AT302700 NLA)

1шт.
