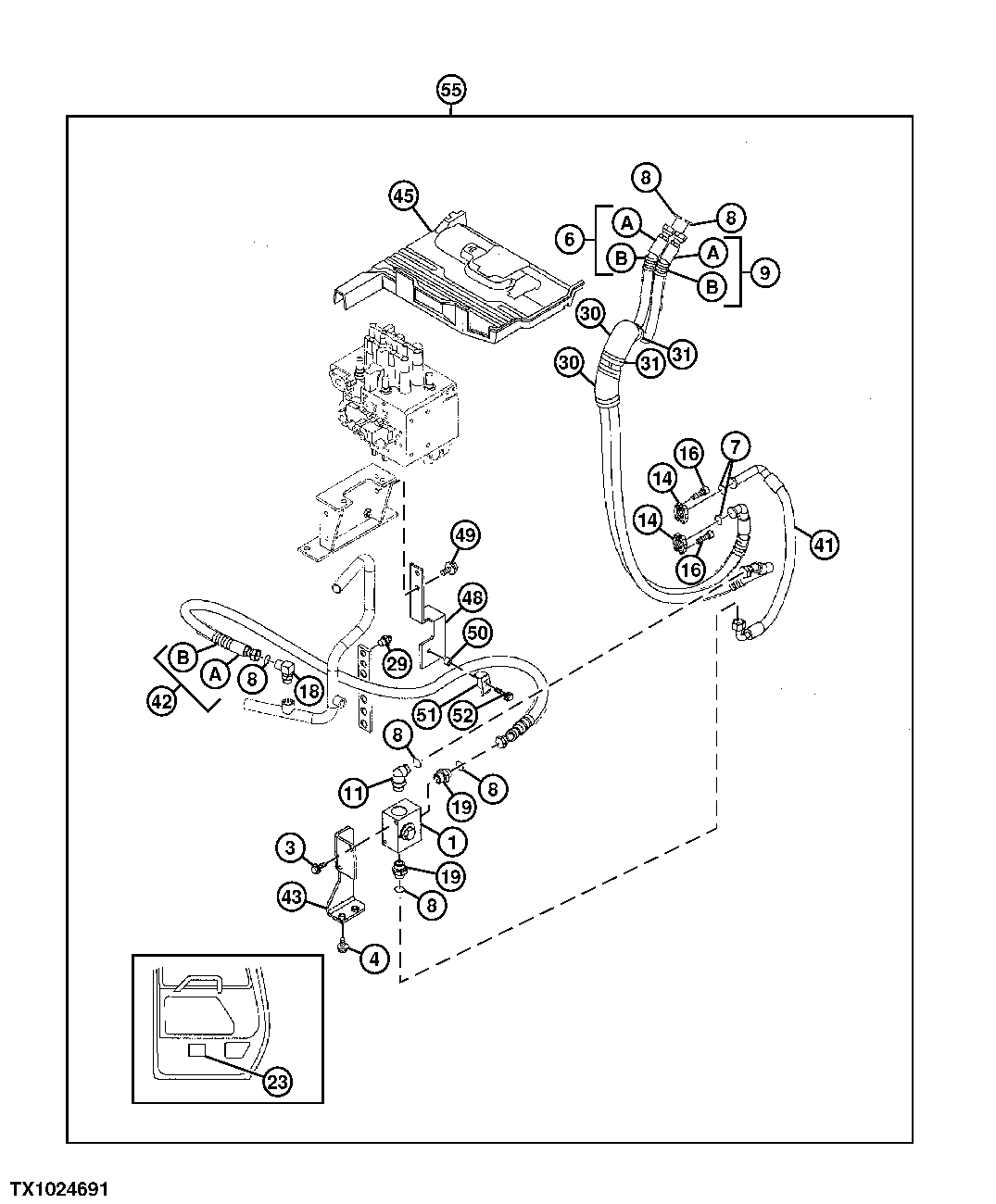

Запчасти John Deere 25CLC RTS 240 - AUXILIARY HYDRAULIC HOSES (BASE AUXILIARY KIT) 3363 LINES, HOSES AND FITTINGS

1

4455599

Valve

1шт.

3

Screw With Washer

( J271230 NLA)

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

2шт.

4

Screw With Washer

( J271235 NLA)

2шт.

19M7403

Cap Screw

M12 X 35

2шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

2шт.

6

Hydraulic Hose

( 9237884 NLA)

1шт.

6A

4438402

Hydraulic Hose

(SUB FOR 4618277)

1шт.

6B

Hose Guard

(MF XHG-075, CTL) ( 4327294 NLA)

4шт.

7

T59014

O-Ring

(SUB FOR 971489)

2шт.

8

T77858

O-Ring

(SUB FOR 4187308)

6шт.

9

Hydraulic Hose

( 9237883 NLA)

1шт.

9A

4618276

Hose

1шт.

9B

Hose Guard

(MF XHG-075, CTL) ( 4327294 NLA)

5шт.

11

A853386

Elbow Fitting

1шт.

TH101926

O-Ring

(SUB FOR 4506429)

1шт.

14

R29424

Flange Fitting

(SUB FOR 986910)

4шт.

16

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

18

A853366

Elbow Fitting

1шт.

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

19

A853186

Adapter Fitting

2шт.

TH101926

O-Ring

(SUB FOR 4506429)

2шт.

23

3100948

Label

1шт.

29

A852122

Adapter Fitting

1шт.

M800650

Packing

(SUB FOR 957366)

1шт.

30

4219918

Isolator

2шт.

31

H77698

Tie Band

(SUB FOR 4121859)

4шт.

41

4461963

Hydraulic Hose

1шт.

42

Hydraulic Hose

( 9237251 NLA)

1шт.

42A

4461966

Hydraulic Hose

Fabricate

1шт.

42B

Hose Guard

(MF XHG-075, CTL) ( 4327294 NLA)

7шт.

43

8085618

Bracket

1шт.

45

3093065

Mat

1шт.

48

8094492

Bracket

1шт.

49

Screw With Washer

( J271030 NLA)

2шт.

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

50

4613622

Spacer

1шт.

51

4190127

Clamp

1шт.

52

Screw With Washer

( J271270 NLA)

1шт.

19M7753

Cap Screw

M12 X 70

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

1шт.

55

Field Installation Kit

(AUXILIARY HYDRAULIC LINE KIT) (INCLUDES ITEMS ON PREVIOUS AND FOLLOWING PAGES) ( FOR MACHINES WITH LONG ARM (3.01M), ALSO ORDER (2) AT305719 HOSES) ( AT302700 NLA)

1шт.
