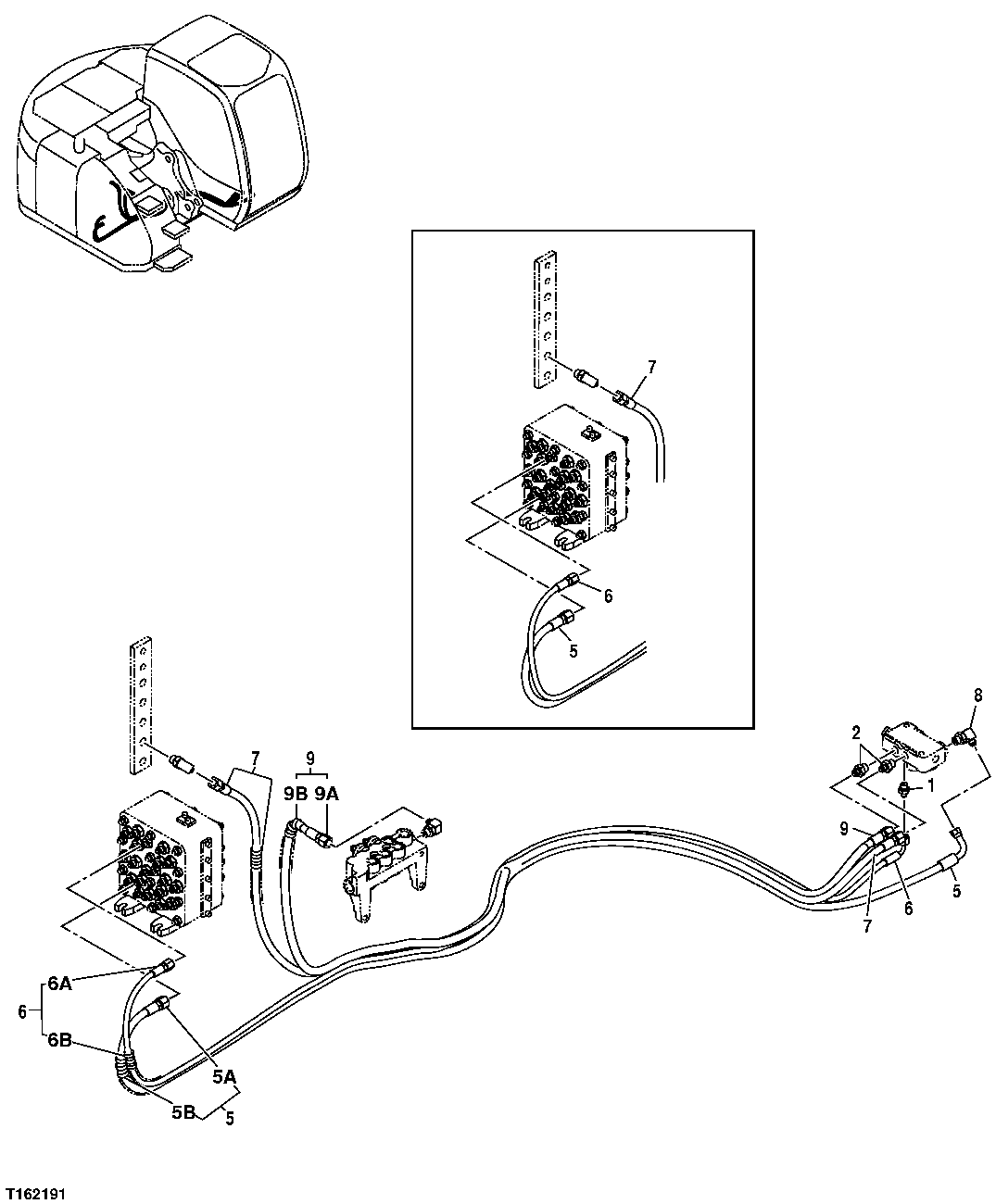

Запчасти John Deere 25CLC RTS 238 - PILOT HYDRAULIC LINES (PILOT SIGNAL MANIFOLD TO SOLENOID) 3363 LINES, HOSES AND FITTINGS

1

A852122

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

2

A852133

Adapter Fitting

2шт.

4674883

O-Ring

SUB FOR 4509180

2шт.

5

Hydraulic Hose

1шт.

5A

4448765

Hydraulic Hose

1шт.

5B

4327315

Hose Guard

4327293 NLA

1шт.

6

Hydraulic Hose

1шт.

6A

4451813

Hydraulic Hose

1шт.

6B

4327315

Hose Guard

4327293 NLA

1шт.

7

4455183

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA

1шт.

8

A852333

Elbow Fitting

1шт.

4674883

O-Ring

SUB FOR 4509180

1шт.

9

Hydraulic Hose

9203266 NLA ORDER INDIVIDUAL COMPONENTS

1шт.

9A

4448756

Hydraulic Hose

1шт.

9B

4327315

Hose Guard

4327293 NLA

4шт.
