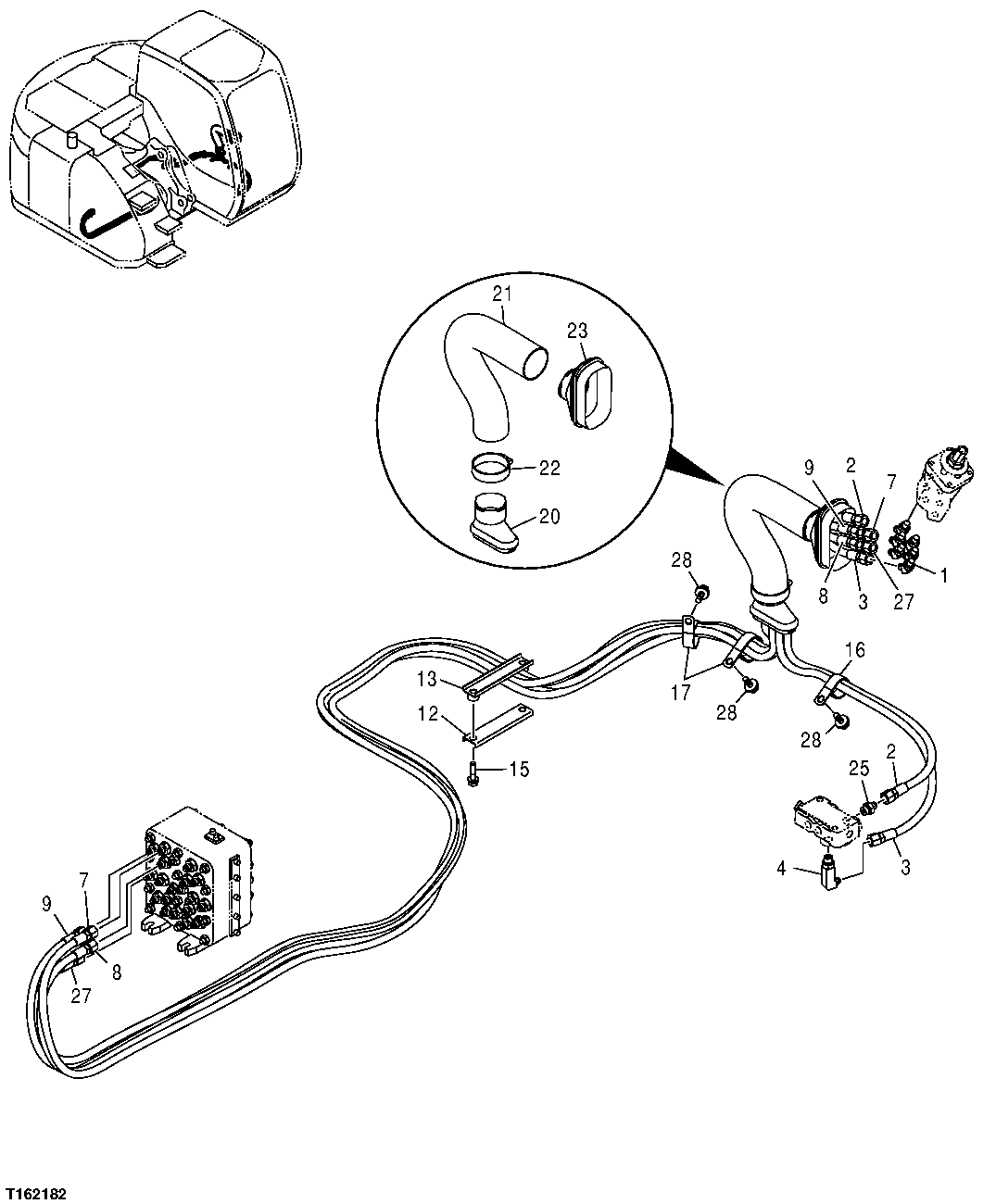

Запчасти John Deere 25CLC RTS 234 - PILOT HYDRAULIC LINES (PILOT SIGNAL MANIFOLD TO PILOT CONTROLLER) 3363 LINES, HOSES AND FITTINGS

1

A852223

Elbow Fitting

6шт.

M800650

Packing

SUB FOR 957366

1шт.

2

4355415

Hose

SUB FOR 4437095

1шт.

3

4398898

Hydraulic Hose

SUB FOR 4437096

1шт.

4

4277650

Elbow Fitting

1шт.

4297380

O-Ring

SUB FOR 4622346, 4674883 OR 4509180

1шт.

7

4436312

Hydraulic Hose

1шт.

8

4436313

Hydraulic Hose

1шт.

9

4436314

Hydraulic Hose

1шт.

12

4412666

Clamp

1шт.

13

9751787

Clamp

1шт.

15

19M8162

Screw

M10 X 40 SUB FOR J021045

2шт.

16

XCL-29

Hose Clamp

SUB FOR 4193848 OR AT131725

1шт.

17

N198631

Clamp

SUB FOR 4190265

2шт.

20

2046296

Bushing

1шт.

21

Hose

(IF AVAILABLE ORDER 4351175)

1шт.

22

4351774

Clamp

1шт.

23

2045998

Bushing

1шт.

25

4261938

Fitting

1шт.

4297380

O-Ring

SUB FOR 4622346, 4674883 OR 4509180

1шт.

27

4448918

Hydraulic Hose

1шт.

28

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.
