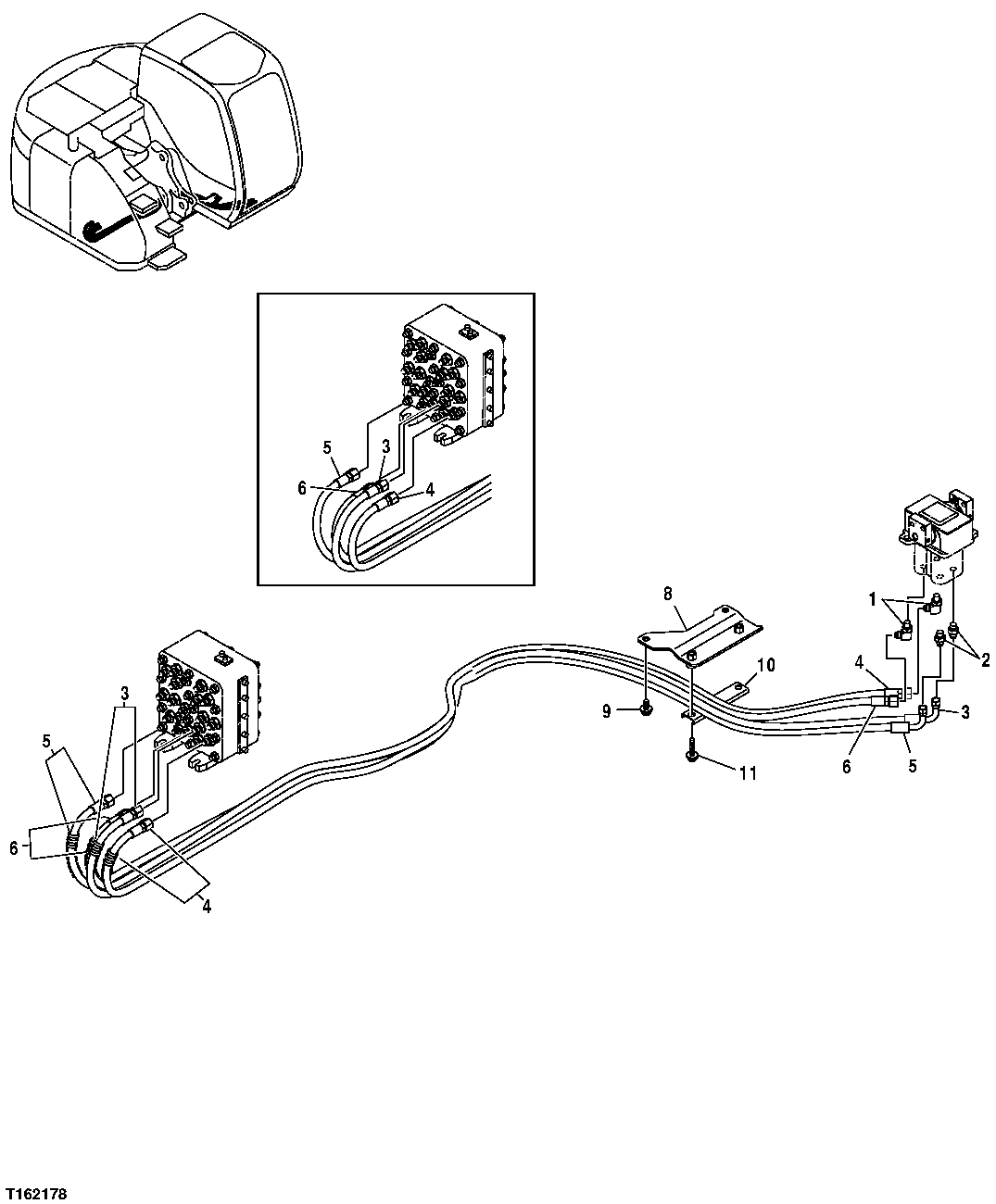

Запчасти John Deere 25CLC RTS 232 - PILOT HYDRAULIC LINES (PILOT SIGNAL MANIFOLD TO PROPEL VALVE) 3363 LINES, HOSES AND FITTINGS

1

A852323

Elbow Fitting

2шт.

M800650

Packing

SUB FOR 957366

1шт.

2

A852123

Adapter Fitting

2шт.

M800650

Packing

SUB FOR 957366

1шт.

3

4448768

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA

1шт.

4

4448759

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA

1шт.

5

4451814

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA

1шт.

6

4447441

Hose

SUB FOR 4448758

1шт.

4327315

Hose Guard

4327293 NLA

1шт.

8

8083070

Bracket

1шт.

9

19M7402

Cap Screw

M10 X 25 SUB FOR J021025

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

10

4412666

Clamp

1шт.

11

19M7835

Screw

M10 X 35 SUB FOR J021040

2шт.
