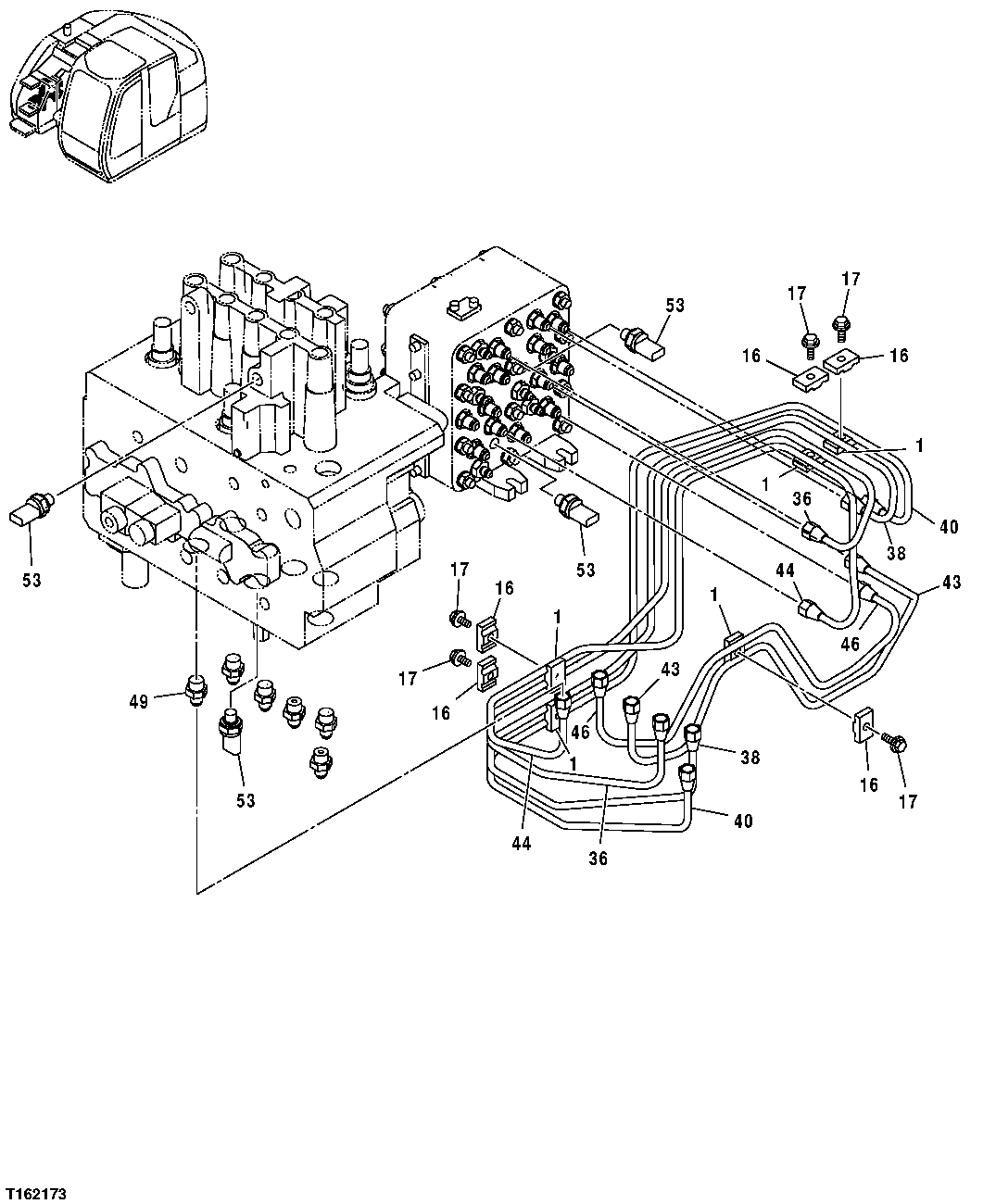

Запчасти John Deere 25CLC RTS 230 - PILOT HYDRAULIC LINES (PILOT SIGNAL MANIFOLD TO BOTTOM OF CONTROL VALVE) 3363 LINES, HOSES AND FITTINGS

1

9735305

Clamp

SUB FOR AP33637

5шт.

16

9735306

Clamp

SUB FOR AP33638

5шт.

17

19M7163

Cap Screw

M8 X 25 SUB FOR J010825

5шт.

Washer

12M7065 NLA

5шт.

36

3091816

Oil Line

1шт.

38

3091818

Oil Line

1шт.

40

3091820

Oil Line

1шт.

43

3091823

Oil Line

1шт.

44

3091824

Oil Line

1шт.

46

3091826

Oil Line

1шт.

49

4255305

Fitting

6шт.

4622346

O-Ring

SUB FOR 4674883, 4509180

1шт.

53

4436535

Sensor

ARM IN PRESSURE

4шт.

4436535

Sensor

BOOM UP PRESSURE

1шт.

4436535

Sensor

PROPEL PRESSURE

1шт.

4436535

Sensor

SWING PRESSURE

1шт.
