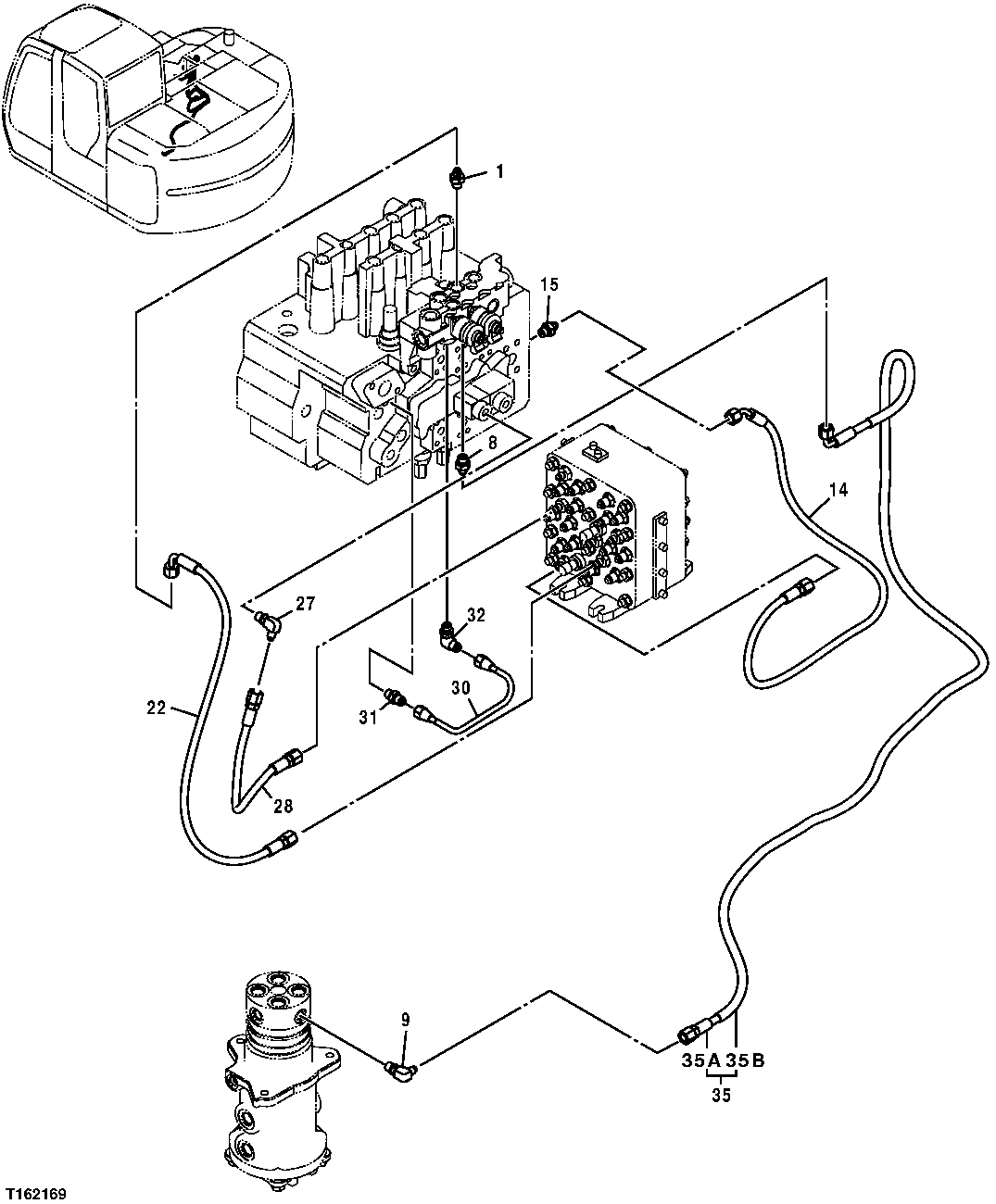

Запчасти John Deere 25CLC RTS 227 - PILOT HYDRAULIC LINES (SEE FOOTNOTE) 3363 LINES, HOSES AND FITTINGS

1

A852122

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

8

A852122

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

9

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

M800650

Packing

SUB FOR 957366

1шт.

14

4436383

Hydraulic Hose

1шт.

15

A852122

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

22

4436299

Hydraulic Hose

1шт.

27

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

M800650

Packing

SUB FOR 957366

1шт.

28

Hydraulic Hose - Fabricate

(IF AVAILABLE ORDER 4451995)

1шт.

30

4452289

Line

1шт.

31

4255304

Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

32

4293950

Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

35

Hydraulic Hose

9201838 NLA

1шт.

35A

4436309

Hydraulic Hose

1шт.

35B

4327315

Hose Guard

4327293 NLA

4шт.
