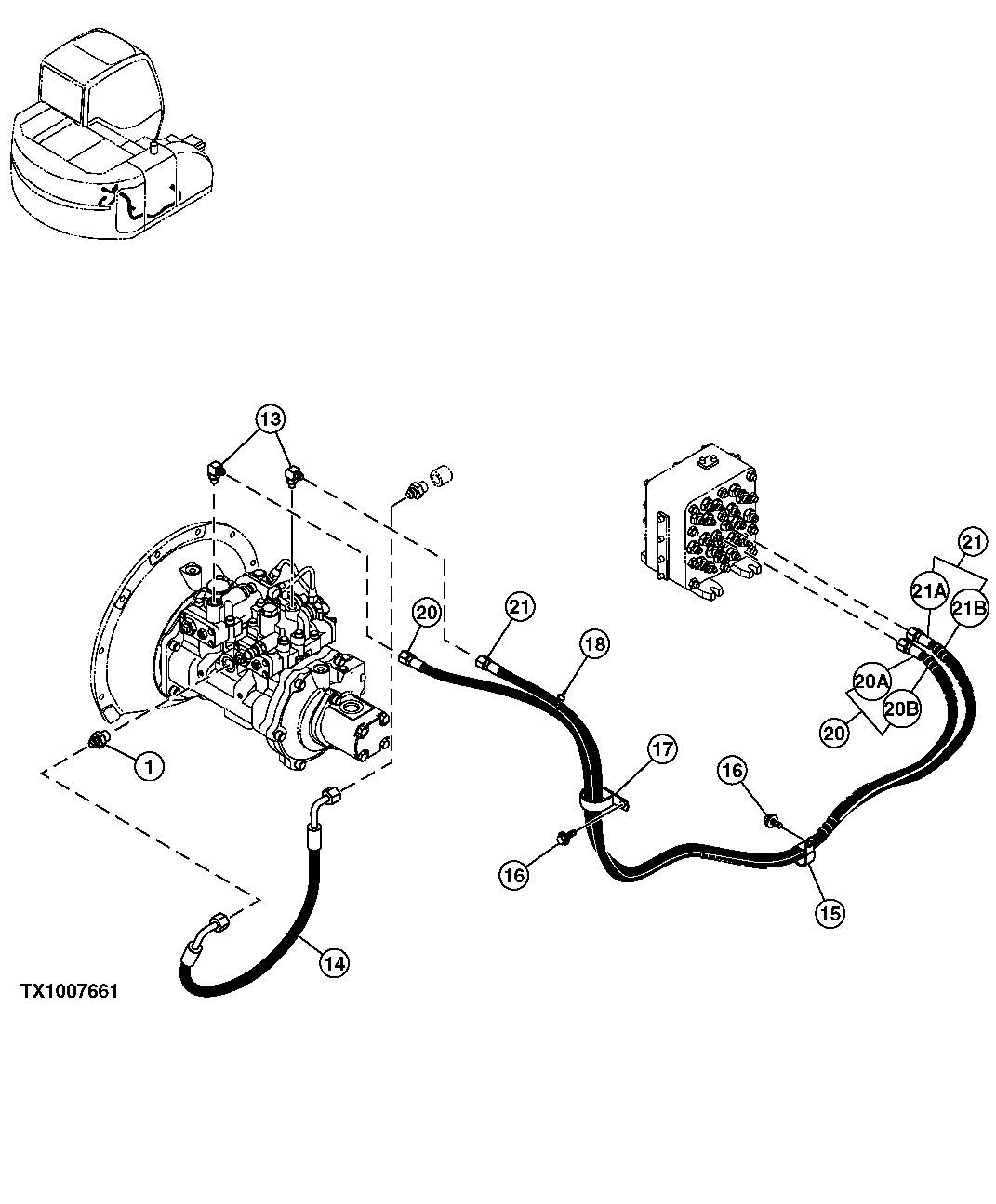

Запчасти John Deere 25CLC RTS 226 - PILOT HYDRAULIC LINES (PUMP TO PILOT SIGNAL MANIFOLD) 3363 LINES, HOSES AND FITTINGS

1

A852144

Adapter Fitting

1шт.

4506418

O-Ring

1шт.

13

A852323

Elbow Fitting

2шт.

M800650

Packing

SUB FOR 957366

1шт.

14

4449354

Hose

ALSO ORDER 4327293, SUB FOR FYA60007374

1шт.

15

XCL-29

Hose Clamp

SUB FOR 4190264 OR 4193848

1шт.

16

19M7938

Cap Screw

M10 X 20

2шт.

17

N198631

Clamp

SUB FOR 4190265

1шт.

18

H77698

Tie Band

SUB FOR 4055311

1шт.

20

Hydraulic Hose

9204019 NLA ORDER INDIVIDUAL COMPONENTS

1шт.

20A

4670804

Hydraulic Hose

SUB FOR 4451217, 4449326 OR 4455020

1шт.

20B

4327315

Hose Guard

4327293 NLA

1шт.

21

Hydraulic Hose

9204019 NLA ORDER INDIVIDUAL COMPONENTS

1шт.

21A

4449326

Hydraulic Hose

SUB FOR 4449328

1шт.

21B

4327315

Hose Guard

4327293 NLA

2шт.
