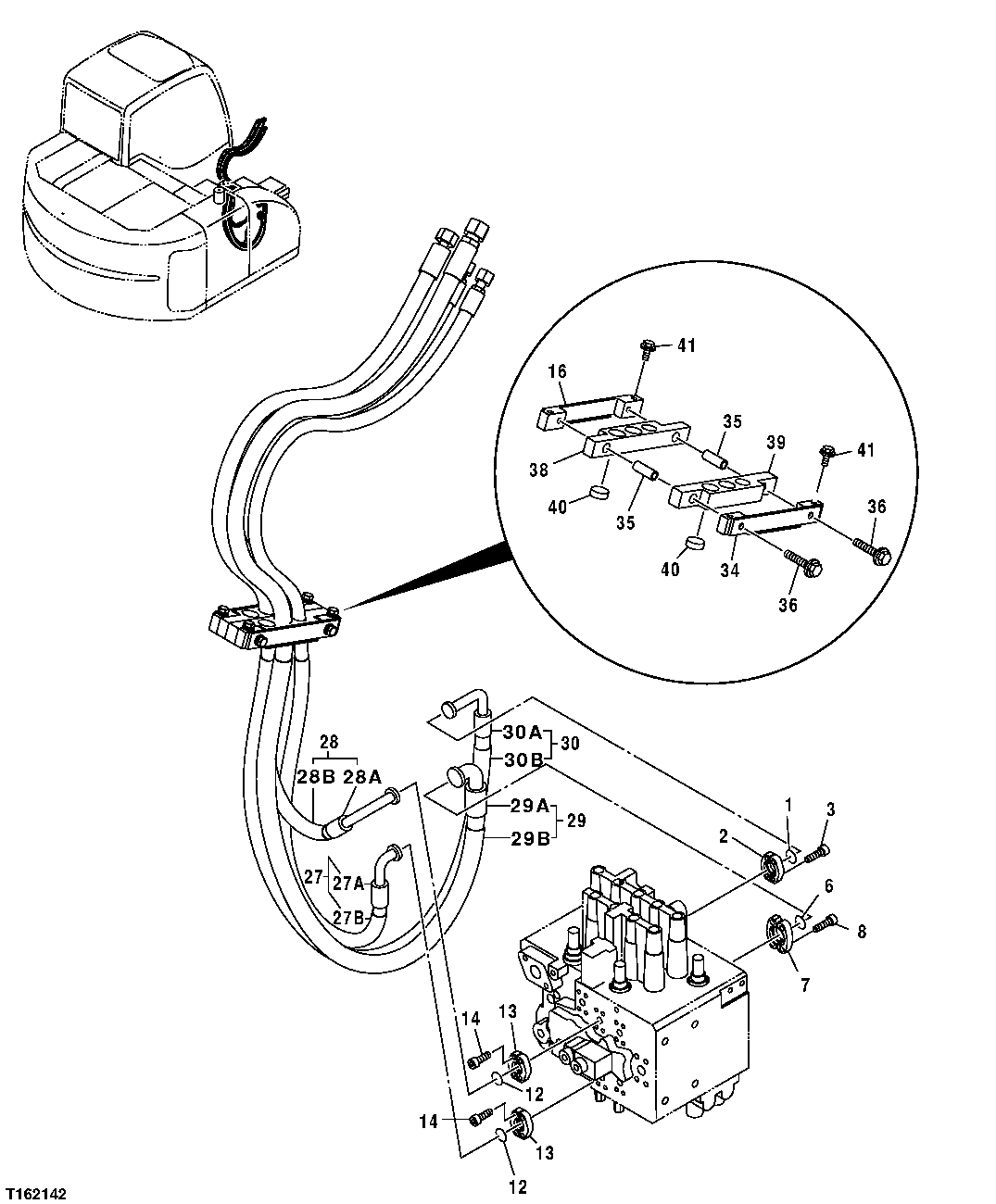

Запчасти John Deere 25CLC RTS 222 - MAIN HYDRAULIC LINES (CONTROL VALVE TO ARM CYLINDER) 3363 LINES, HOSES AND FITTINGS

1

R69667

O-Ring

(SUB FOR 4510167)

1шт.

2

4510173

Fitting

2шт.

3

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

4шт.

6

T59014

O-Ring

(SUB FOR 971489)

1шт.

7

R29424

Flange Fitting

(SUB FOR 986910)

2шт.

8

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

12

R69667

O-Ring

(SUB FOR 4510167)

2шт.

13

4510173

Fitting

4шт.

14

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

8шт.

16

8076645

Bracket

1шт.

27

Hydraulic Hose

( 9201708 NLA ORDER INDIVIDUAL COMPONENTS

1шт.

27A

4437725

Hydraulic Hose

1шт.

27B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

2шт.

28

Hydraulic Hose

( 9201709 NLA) ORDER INDIVIDUAL COMPONENTS

1шт.

28A

4437726

Hydraulic Hose

1шт.

28B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

1шт.

29

Hydraulic Hose

( 9201710 NLA) ORDER INDIVIDUAL COMPONENTS

1шт.

29A

4437747

Hydraulic Hose

1шт.

29B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

3шт.

30

Hydraulic Hose

( 9201711 NLA) ORDER INDIVIDUAL COMPONENTS

1шт.

30A

4437762

Hydraulic Hose

1шт.

30B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

3шт.

34

8078188

Bracket

1шт.

35

4428830

Spacer

2шт.

36

19M8183

Cap Screw

M10 X 90 (SUB FOR J021090)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

38

3092223

Hose Clamp

1шт.

39

3092224

Hose Clamp

1шт.

40

4455225

Plug

2шт.

41

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.
