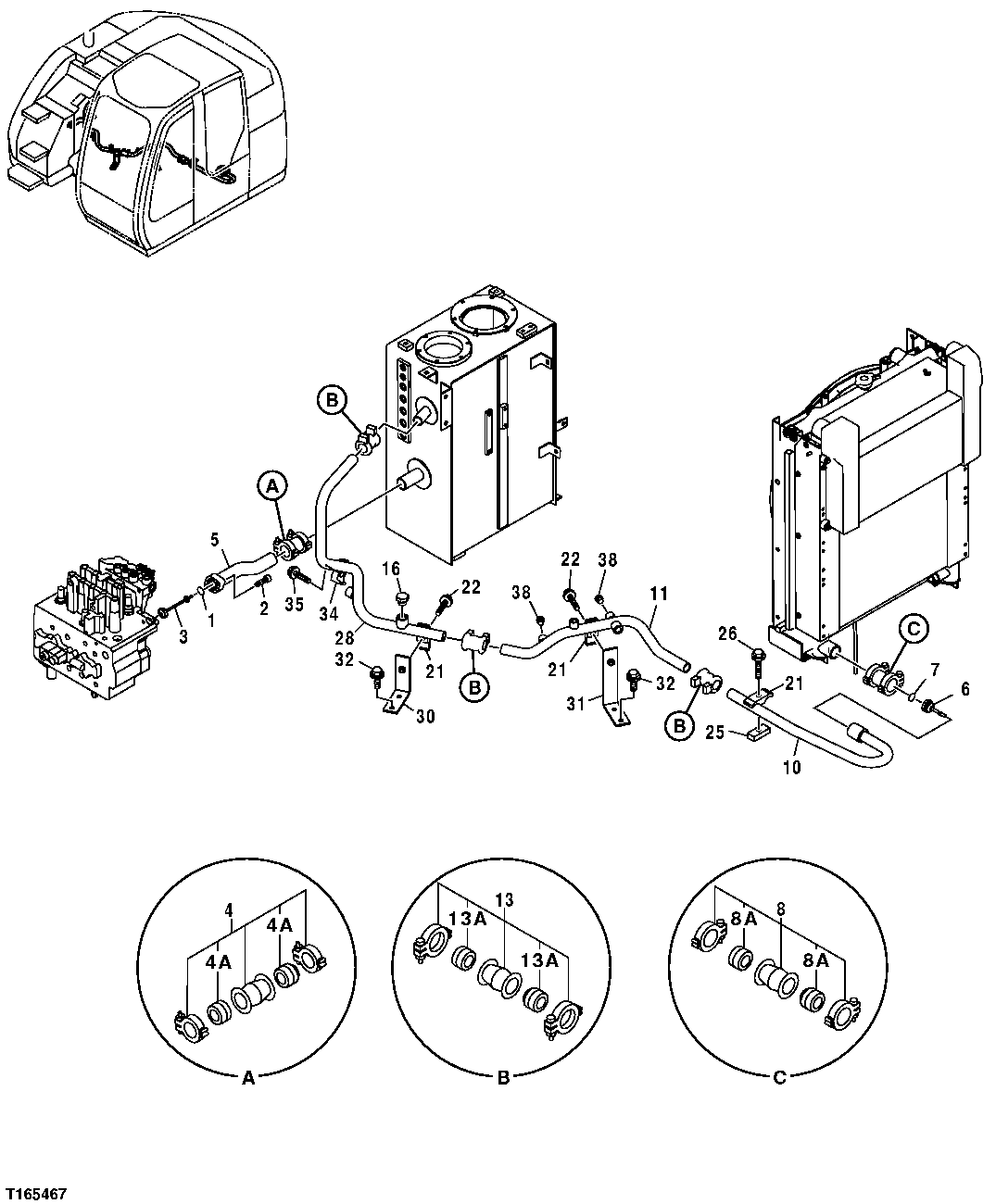

Запчасти John Deere 25CLC RTS 218 - RETURN LINES (HEAT EXCHANGER TO RESERVOIR) 3363 LINES, HOSES AND FITTINGS

1

A811040

O-Ring

1шт.

2

L159272

Screw

SUB FOR J781040

2шт.

3

4266481

Flow Control Hyd. Valve

1шт.

4

4069801

Coupling

SUB FOR 4712341

1шт.

4A

4196259

Seal

2шт.

5

8079979

Oil Line

Oil Cooler Bypass

1шт.

6

4276584

Flow Control Hyd. Valve

1шт.

7

40M1861

Snap Ring

SUB FOR 991718

1шт.

8

4067834

Coupling

1шт.

8A

4196260

Seal

NLA, ORDER 4067834

2шт.

10

7038335

Oil Line

1шт.

11

7038336

Oil Line

1шт.

13

FXV00000005

Coupling

SUB FOR 4071213

3шт.

13A

FXV00000005

Coupling

SUB FOR 4196258

2шт.

16

A885006

Plug

1шт.

AT318035

O-Ring

SUB FOR 4506424

1шт.

21

4189860

Clamp

2шт.

22

19M7753

Cap Screw

M12 X 70 SUB FOR J011270

2шт.

12H301

Lock Washer

1/2"

2шт.

25

T108225

Strap

SUB FOR 4137298

1шт.

26

19M7362

Cap Screw

M12 X 55 SUB FOR J011255

1шт.

12H301

Lock Washer

1/2"

1шт.

28

7039779

Oil Line

1шт.

30

8080202

Bracket

1шт.

31

8082984

Bracket

1шт.

32

19M7872

Cap Screw

M12 X 25

4шт.

34

4190127

Clamp

1шт.

35

19M7363

Cap Screw

M12 X 60 SUB FOR J011260

1шт.

12H301

Lock Washer

1/2"

1шт.

38

A885003

Pipe Plug

2шт.

4674883

O-Ring

SUB FOR 4674883, 4509180

1шт.
