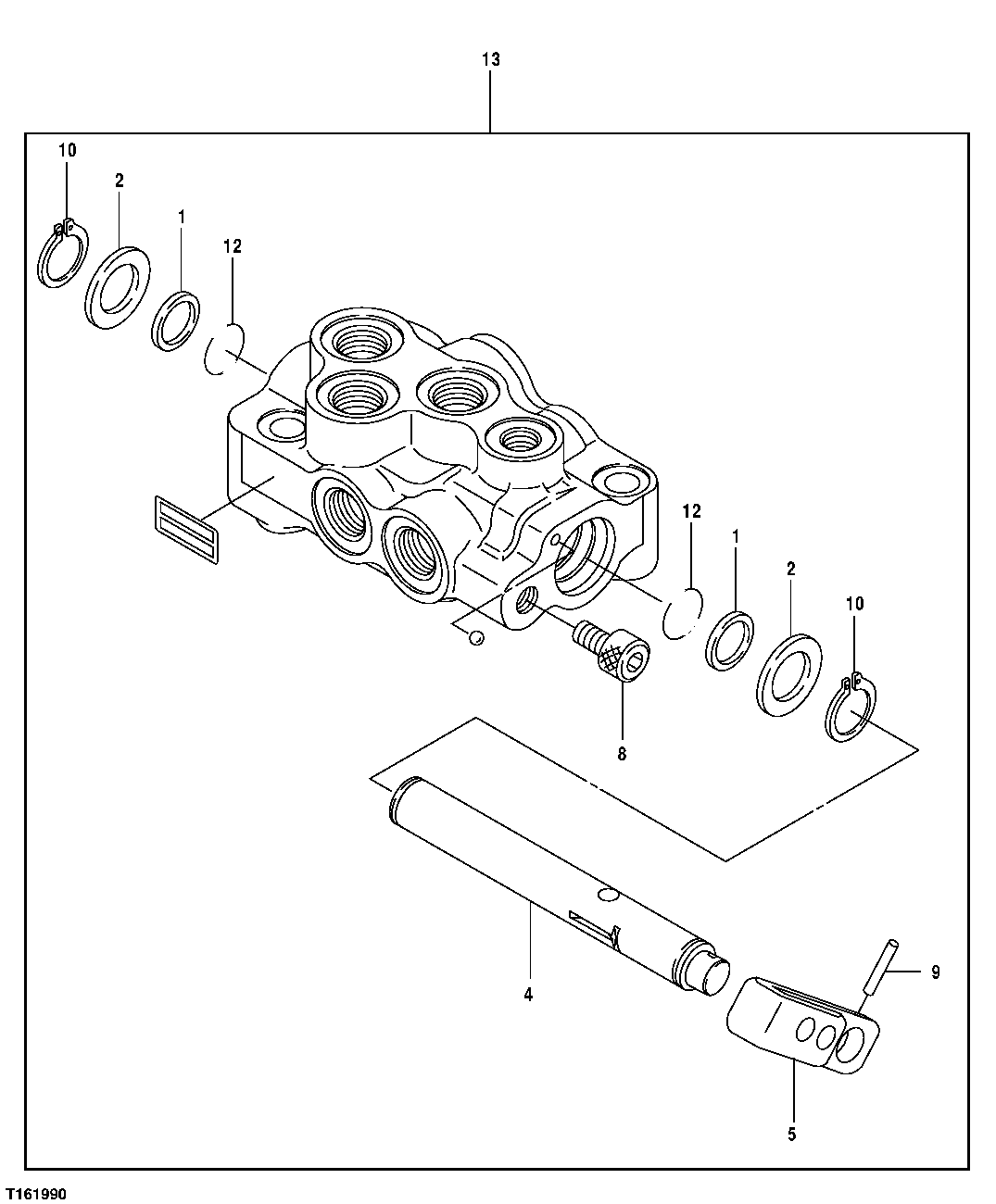

Запчасти John Deere 25CLC RTS 215 - PILOT CONTROL SHUT-OFF VALVE 3362 CONTROL & LOAD HOLDING VALVES

1

0309904

Back-Up Ring

2шт.

2

0396603

Washer

2шт.

4

0668303

Valve Spool

1шт.

5

0804501

Lever

1шт.

8

19M9492

Screw

M8 X 12 (SUB FOR M340813)

1шт.

9

0668304

Spring Pin

1шт.

10

40M1824

Snap Ring

(SUB FOR 0396605)

2шт.

12

CH14634

O-Ring

2шт.

13

4462892

Flow Control Hyd. Valve

(SUB FOR 4451909)

1шт.
