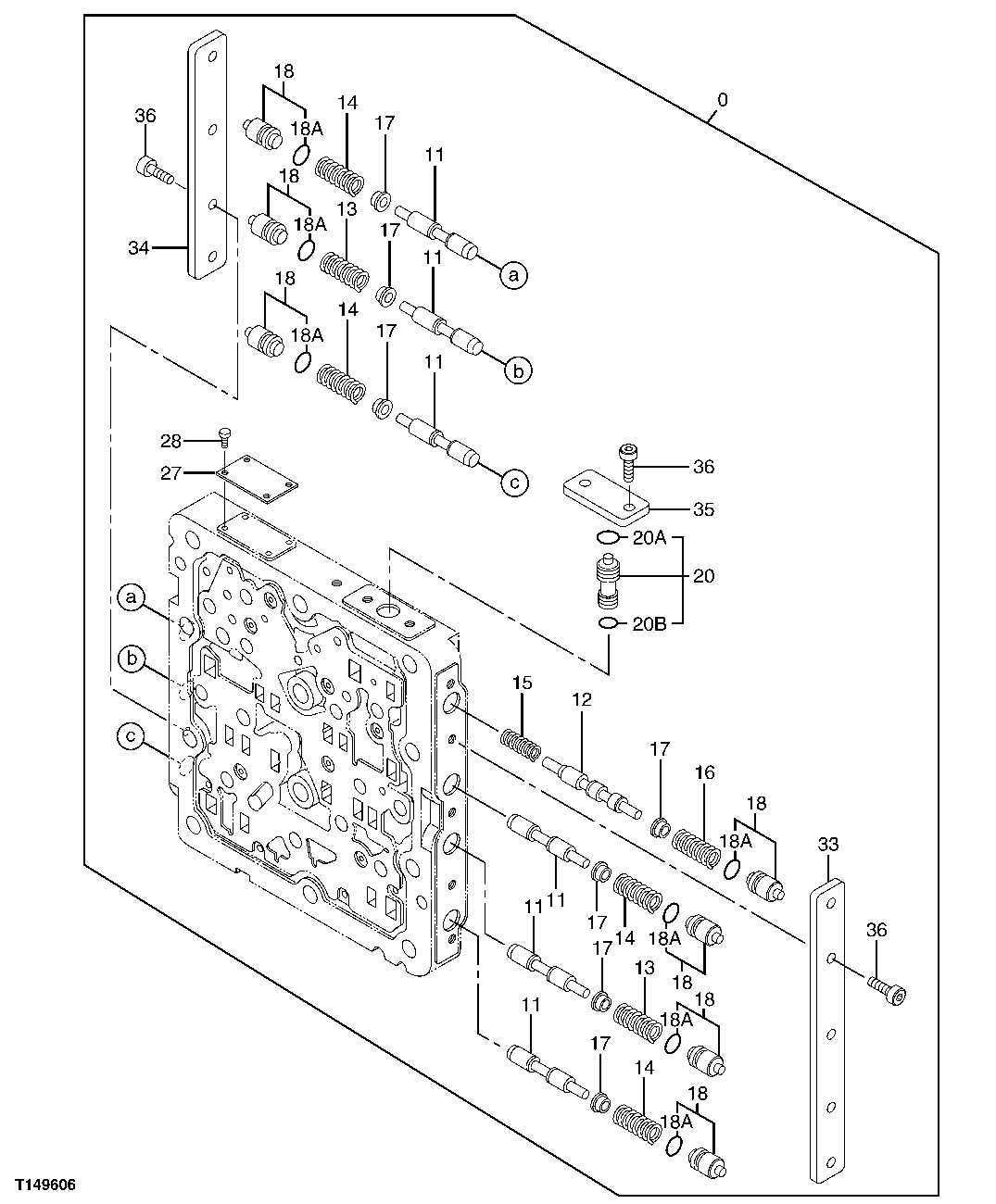

Запчасти John Deere 25CLC RTS 214 - PILOT SIGNAL MANIFOLD VALVES 3362 CONTROL & LOAD HOLDING VALVES

0

4468336

Flow Control Hyd. Valve

(SUB FOR 4452625)(INCLUDES ALL COMPON ENTS ON THIS PAGE AND PREVIOUS PAGES)

1шт.

11

4453819

Spool Valve

6шт.

12

4453820

Spool Valve

1шт.

13

0788703

Spring

2шт.

14

0788704

Spring

4шт.

15

0788705

Spring

1шт.

16

0788706

Spring

1шт.

17

0788707

Valve Seat

7шт.

18

4452647

Pipe Plug

7шт.

18A

939356

O-Ring

7шт.

20

4452649

Flow Control Hyd. Valve

1шт.

20A

939356

O-Ring

1шт.

20B

CH10567

Packing

1шт.

27

Identification Plate

1шт.

28

Screw

4шт.

33

0788710

Plate

1шт.

34

0788711

Plate

1шт.

35

0788712

Plate

1шт.

36

0788713

Bolt

11шт.

37

4467088

Hose

Not Illustrated

1шт.

38

A852123

Adapter Fitting

Not Illustrated

1шт.
