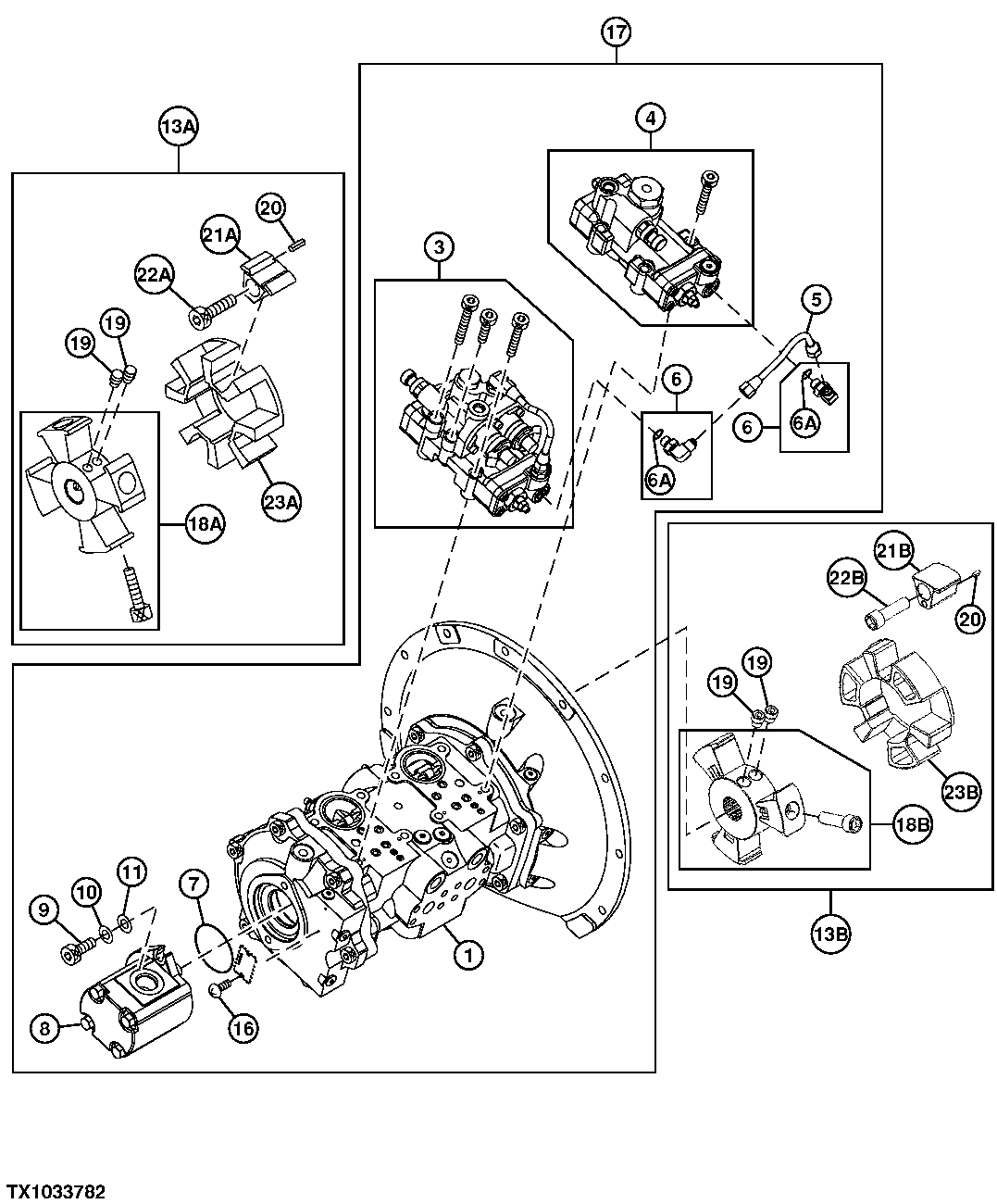

Запчасти John Deere 25CLC RTS 188 - HYDRAULIC PUMP, PILOT PUMP AND REGULATOR ASSEMBLY 3361 HYDRAULIC PUMP

1

Hydraulic Pump

( 9192497 NLA)

1шт.

3

9198153

Regulator

1шт.

4

9198154

Regulator

1шт.

5

4429488

Line

1шт.

6

4293950

Fitting

2шт.

6A

M800650

Packing

1шт.

7

4153543

O-Ring

1шт.

8

9217993

Pump

(SUB FOR 4181700)

1шт.

9

19M8337

Screw

M10 X 30

2шт.

10

12M6791

Lock Washer

10.200 mm

2шт.

11

4114402

Washer

2шт.

13A

4340275

Splined Coupling

1шт.

13B

4464407

Coupling

1шт.

16

37H99

Screw

0.100" X 1/4"

2шт.

17

9197338

Hydraulic Pump

Does Not Include Tandem Pilot Pump

1шт.

9227923

Hydraulic Pump

NLA, (ORDER 9227923EX) Does Not Include Tandem Pilot Pump

1шт.

9227923EX

Hydraulic Pump Reman

(REMAN FOR 9227923) Does No t Include Tandem Pilot Pump

1шт.

18A

4366376

Hub

1шт.

18B

4627119

Hub

1шт.

19

4702173

Set Screw

(SUB FOR 4334899)

2шт.

20

34M7117

Spring Pin

5 X 10 mm (SUB FOR 4101345)

4шт.

21A

4334892

Insert

4шт.

21B

4627120

Insert

4шт.

22A

4334894

Bolt

4шт.

22B

4627121

Bolt

4шт.

23A

4334891

Coupling

1шт.

23B

4627118

Coupling

1шт.
