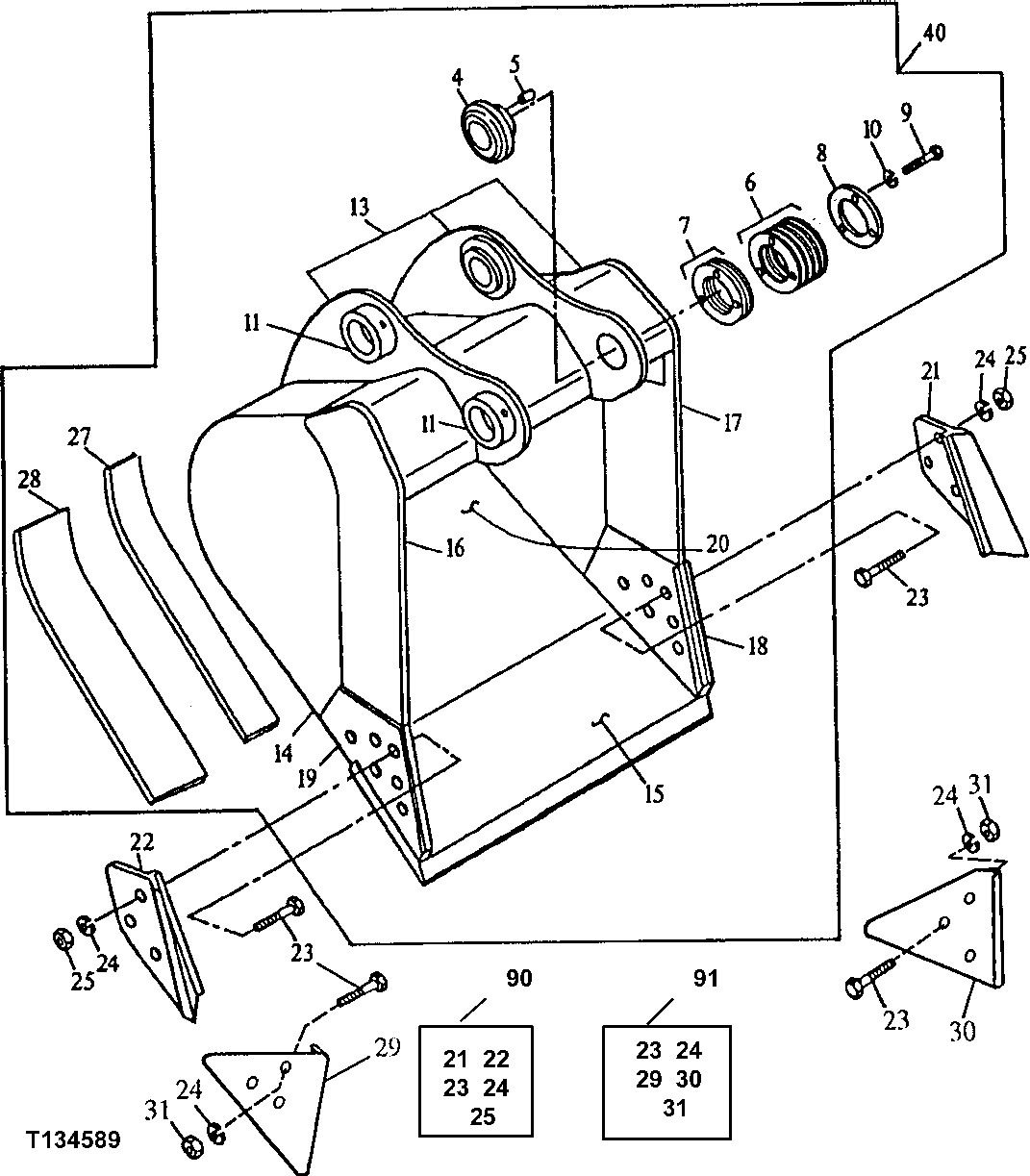

Запчасти John Deere 25CLC RTS 154 - HEAVY DUTY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

TH100346

Bushing

1шт.

5

TH103619

Pin

1шт.

6

4143635

Washer

( TH100348 NLA)

7шт.

7

4143636

Shim

( TH100349 NLA)

3шт.

8

Spacer

( TH100347 NLA)

1шт.

9

19M7404

Cap Screw

M14 X 40

3шт.

10

12H317

Lock Washer

9/16"

3шт.

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

Plate

(A) RH, LH

2шт.

15

AT131081

Dura-Max Cutting Edge

(CUT TO LENGTH)

ARшт.

16

Vertical Cutter

(A) RH Upper

1шт.

17

Vertical Cutter

(A) LH Upper

1шт.

18

304968

Vertical Cutter

(A) LH Insert

1шт.

19

304967

Vertical Cutter

(A) RH Insert

1шт.
