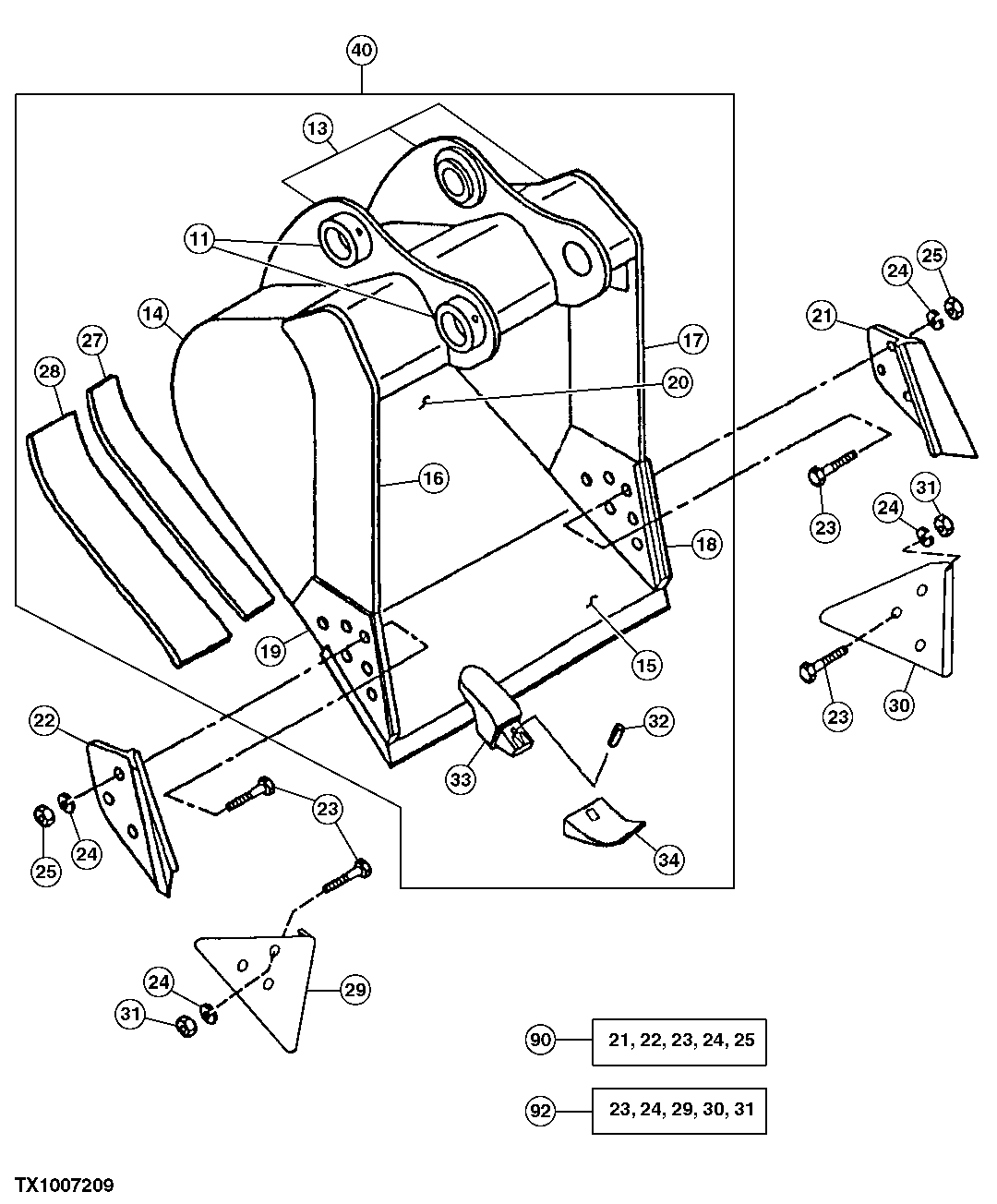

Запчасти John Deere 25CLC RTS 152 - GENERAL PURPOSE BUCKET 3302 BUCKET WITH TEETH

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

Plate

(A) (RH/LH)

2шт.

15

AT131081

Cutting Edge

(CTL)

ARшт.

16

Vertical Cutter

(A) (UPPER) (RH)

1шт.

17

Vertical Cutter

(A) (UPPER) (LH)

1шт.

18

304953

Vertical Cutter

(A) (LH) Insert

1шт.

19

304952

Vertical Cutter

(A) (RH) Insert

1шт.

20

Moldboard

(A) (24 INCH)

1шт.

Moldboard

(A) (30 INCH)

1шт.

Moldboard

(A) (36 INCH)

1шт.

Moldboard

(A) (42 INCH/0.79 CUBIC YARD)

1шт.

Moldboard

(A) (42 INCH/0.92 CUBIC YARD)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

Bar

(A) Inner Wear

1шт.

28

Bar

(A) Outer Wear

2шт.

29

AT167874

Shroud

Wear

1шт.

30

AT167874

Shroud

Wear

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP160L

Spring Pin

ARшт.

33

T109X220

Bucket Tooth Adapter

ARшт.

34

TF220

Tooth

ARшт.

40

Excavator Bucket

( AT332666 NLA) (24 INCH/0.50 CUBIC YA RD) (SUB FOR AT301636 ) (SUB AT339041)

1шт.

Excavator Bucket

( AT332667 NLA) (30 INCH/0.66 CUBIC YA RD) (SUB FOR AT301637 ) ( AT339043 NLA)

1шт.

Excavator Bucket

( AT332668 NLA) (36 INCH/0.82 CUBIC YA RD) (SUB FOR AT301638 ) ( AT339045 NLA)

1шт.

Excavator Bucket

( AT332669 NLA) (42 INCH/0.98 CUBIC YA RD) (SUB FOR AT301639 ) ( AT339047 NLA)

1шт.

90

End Bit

( AT131080 NLA) Side Cutter Kit

1шт.

92

Kit

( AT167874 NLA) Edge Protector

1шт.
