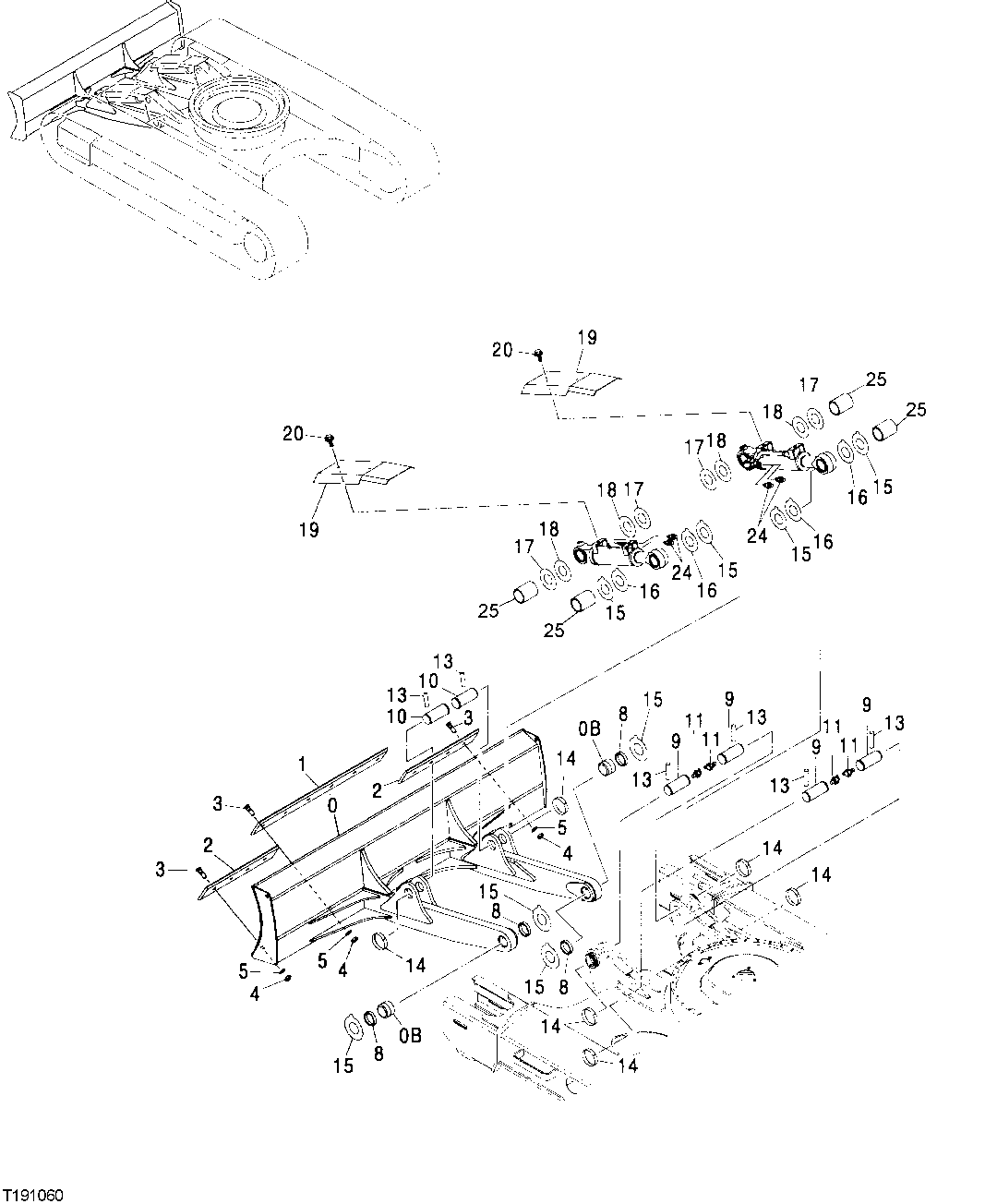

Запчасти John Deere 25CLC RTS 144 - BLADE AND PINS 3301 BLADES & SIDE CUTTERS

0

7037910

Blade

(2490MM WIDE) Use With 500mm Or 600mm Shoes

1шт.

7041539

Blade

(2690MM WIDE) Use With 700 mm Shoes

1шт.

0B

4376210

Bushing

(FOR USE WITH ALL BLADES)

2шт.

1

3091707

Cutting Edge

(FOR USE WITH ALL BLADES)

1шт.

2

3091708

Cutting Edge

(WITH 2490MM BLADE, FOR US E WITH 500 OR 600MM SHOES)

2шт.

3093961

Cutting Edge

(WITH 2690MM BLADE, FO R USE WITH 700MM SHOES)

2шт.

3

4184865

Bolt

14шт.

4

K40016

Lock Nut

14шт.

5

N231749

Washer

14шт.

8

TH104472

Seal

4шт.

9

4348569

Pin Fastener

4шт.

10

4347428

Pin Fastener

2шт.

11

T116334

Lubrication Fitting

4шт.

13

4106307

Pin

6шт.

14

4098716

Ring

6шт.

15

P61821

Plate

8шт.

16

P61822

Plate

4шт.

17

4366692R

Thrust Washer

(SUB FOR 4366692)

4шт.

18

4367410R

Thrust Washer

(SUB FOR 4367410)

4шт.

19

3091704

Cover

2шт.

20

Screw With Washer

( J031230 NLA)

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

12M7067

Lock Washer

12 mm

4шт.

22

9187647

Cylinder

1шт.

23

9187648

Cylinder

1шт.

24

A852133

Adapter Fitting

4шт.

CH11570

O-Ring

4шт.

25

4376210

Bushing

(SUB FOR 4432511 ) (AL SO ORDER (4) TH104472)

4шт.
