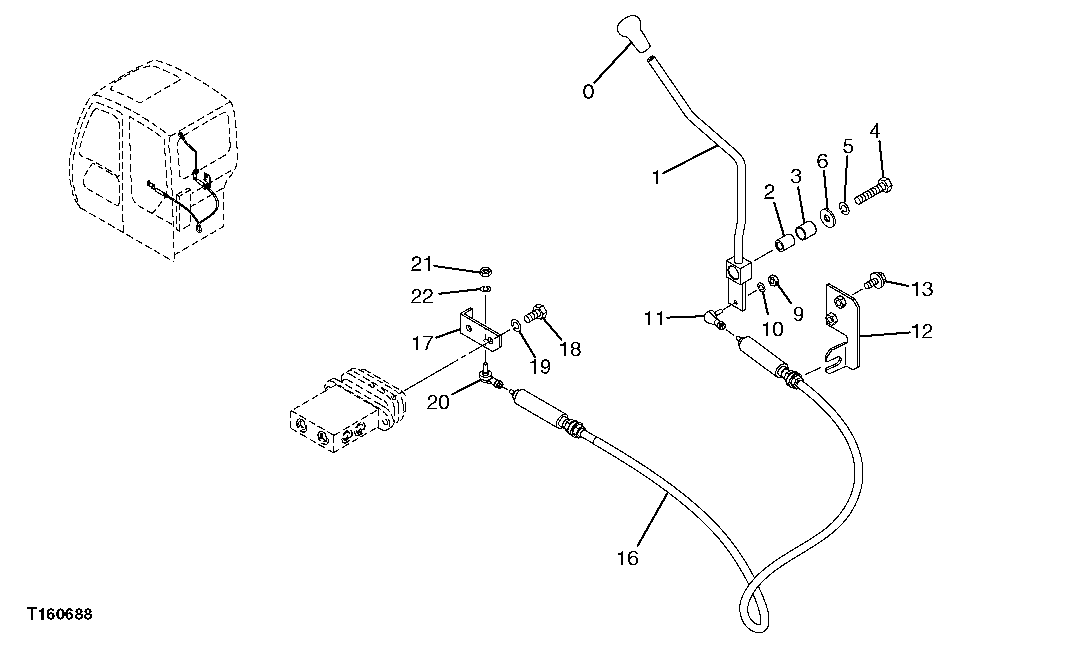

Запчасти John Deere 25CLC RTS 143 - BLADE PILOT CONTROL LEVER 3301 BLADES & SIDE CUTTERS

0

4280117

Grip

USE WITH 8081981

1шт.

4363754

Grip

USE WITH 7045626

1шт.

1

7045626

Lever

SUB FOR 8081981

1шт.

8094751

Bracket

Not Illustrated

1шт.

2

4279507

Bushing

1шт.

3

4396083

Bushing

1шт.

4

19M7362

Cap Screw

M12 X 55

1шт.

5

12H301

Lock Washer

1/2"

1шт.

6

Z449490

Washer

1шт.

9

14M7272

Nut

M6

1шт.

10

12M7006

Lock Washer

6 mm

1шт.

11

4722815

Ball Joint

SUB FOR 4056017

1шт.

12

8080381

Bracket

1шт.

13

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

16

4454725

Push Pull Cable

1шт.

17

9754977

Bracket

1шт.

18

19M7938

Cap Screw

M10 X 20 SUB FOR J901020

2шт.

19

12M7066

Lock Washer

10 mm

2шт.

20

4056017

Ball Joint

1шт.

21

14M7272

Nut

M6

1шт.

22

12M7006

Lock Washer

6 mm

1шт.
