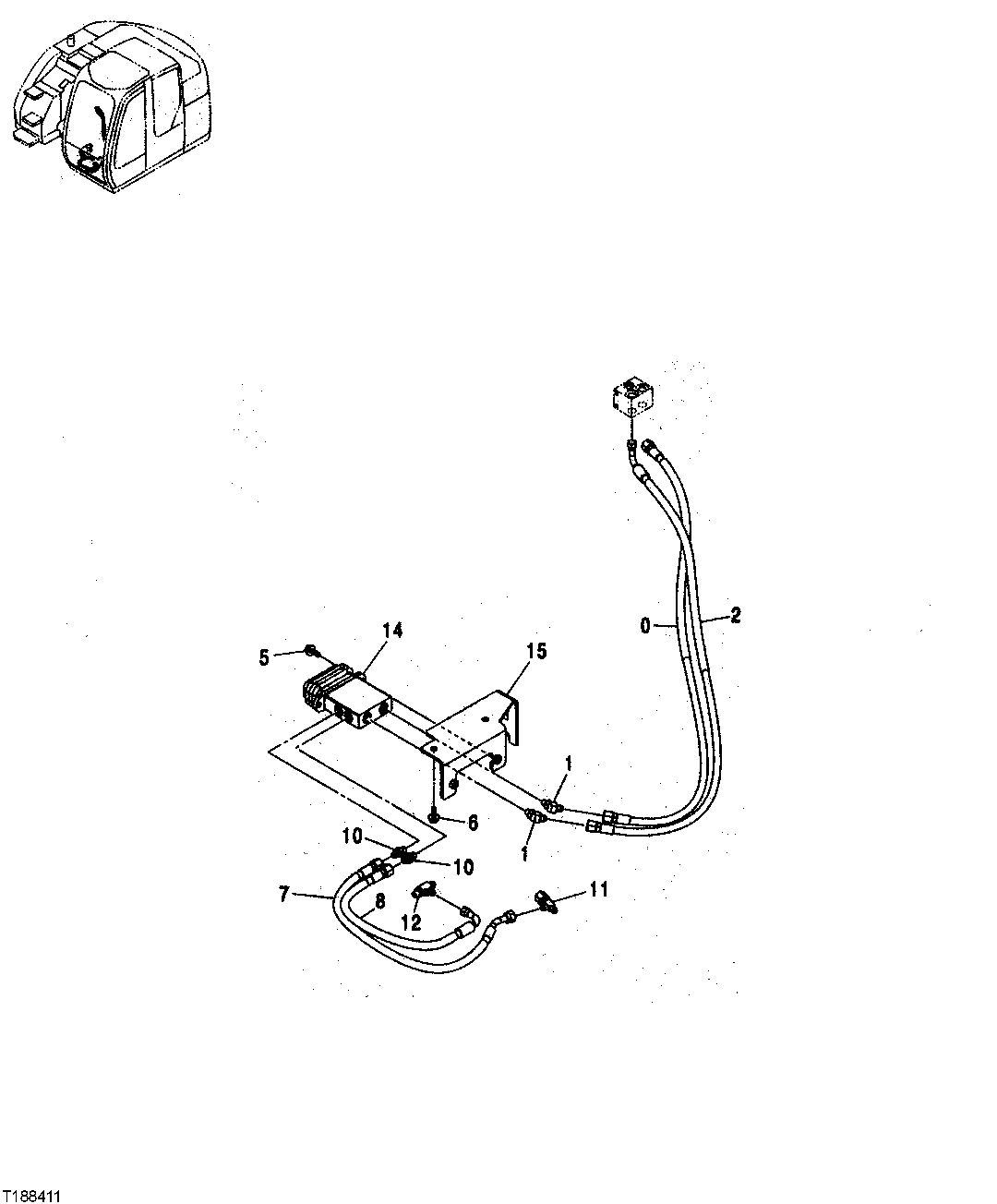

Запчасти John Deere 25CLC RTS 142 - PILOT HOSES (BLADE CONTROL VALVE TO PILOT SHUTOFF VALVE) 3301 BLADES & SIDE CUTTERS

0

9201413

Hydraulic Hose

1шт.

1

A852223

Elbow Fitting

2шт.

M800650

Packing

2шт.

2

9201414

Hydraulic Hose

1шт.

5

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

6

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

7

9201415

Hydraulic Hose

1шт.

8

9203779

Hydraulic Hose

1шт.

10

A852123

Adapter Fitting

2шт.

M800650

Packing

2шт.

11

4246672

Tee Fitting

1шт.

12

A852423

Tee Fitting

1шт.

M800650

Packing

1шт.

14

4357586

Hydr./Pilot Control Valve

1шт.

15

8083349

Bracket

1шт.
