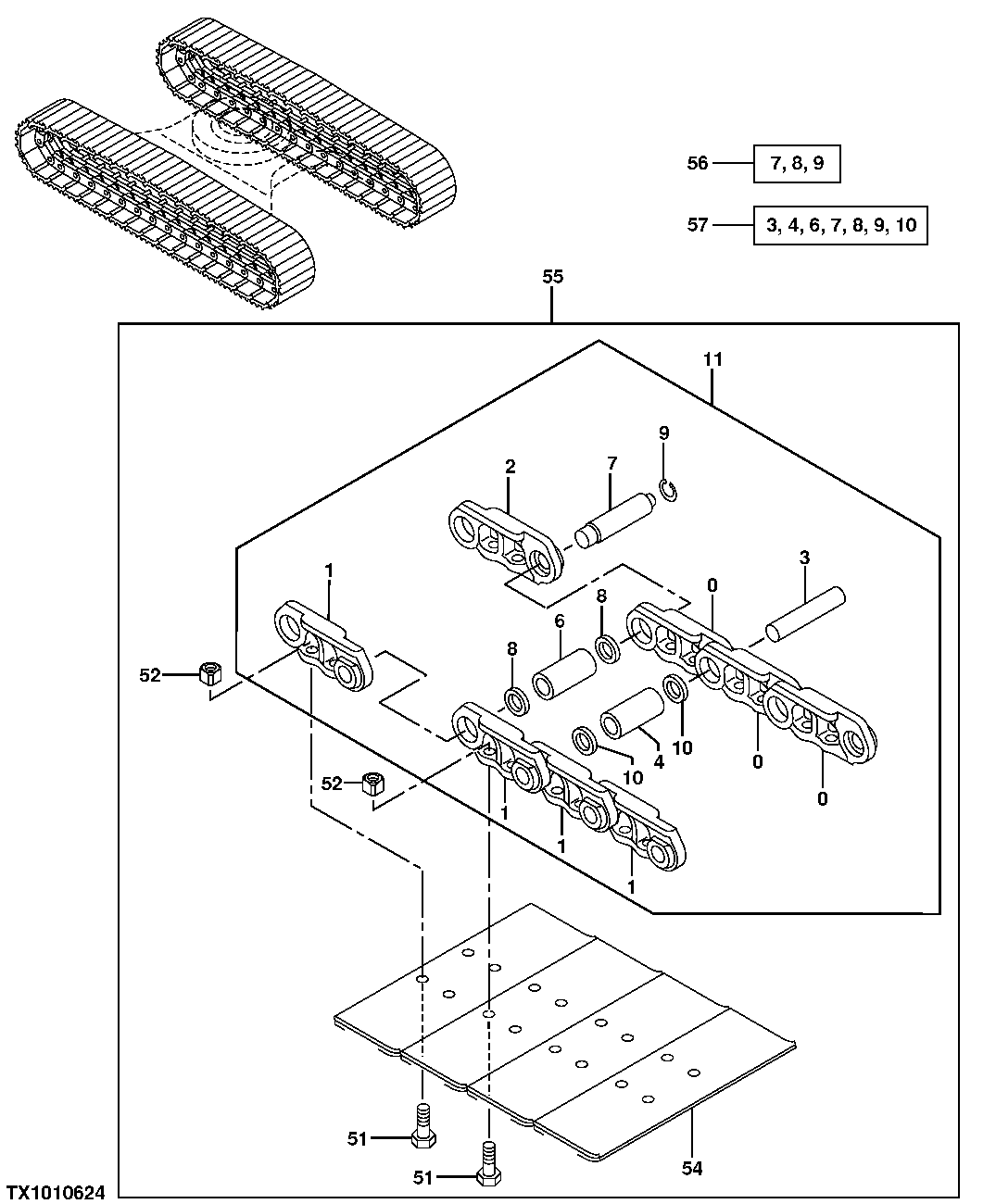

Запчасти John Deere 25CLC RTS 4 - TRACK CHAIN AND SHOES 0132 DRIVE SPROCKETS, CHAINS, & SHOES

0

T212009

Strutted LINK-RH

Right Link (SUB FOR AT185783

43шт.

1

T212015

Track Link

Left Link SUB FOR AT185784

44шт.

2

T212029

Master Track LINK-RH

SUB FOR AT185785

1шт.

3

T212040

Track Pin

SUB FOR AT185786

43шт.

4

T212042

Track Bushing

SUB FOR 4344785 OR AT180441

43шт.

6

T212043

Master Track Bushing

SUB FOR 4345599, T191230 OR AT180442

1шт.

7

T212044

Master Track Pin

SUB FOR AT185788

1шт.

8

T212045

Spacer

SUB FOR AT185789

2шт.

9

T212046

Snap Ring

SUB FOR AT180439 OR TH108899

1шт.

10

T212048

Seal

SUB FOR AT185787

86шт.

11

AT316036

Track Chain W/O Shoes

SUB FOR AT185781

1шт.

51

T212050

Track Bolt

SUB FOR AT180444

176шт.

52

T212051

Nut

SUB FOR AT180443

176шт.

54

T212011

Open Center 3 Bar Shoe

600 MM SUB FOR TH111657

44шт.

2024425

Open Center 3 Bar Shoe

700 MM

44шт.

4405321

Flat Shoe

500 MM Rubber Pads

44шт.

55

Track Assembly With Shoes

AT316037 NLA (600 MM SHOES) (WHOLEGOODS)

1шт.

56

Kit

( AT185795 NLA)

1шт.

57

AT324665

Pin & Bushing Kit

Pin Kit For 41 Link Chain ALSO ORDER ( 3) T212040, (3) T212042 AND (6) T212048

1шт.
