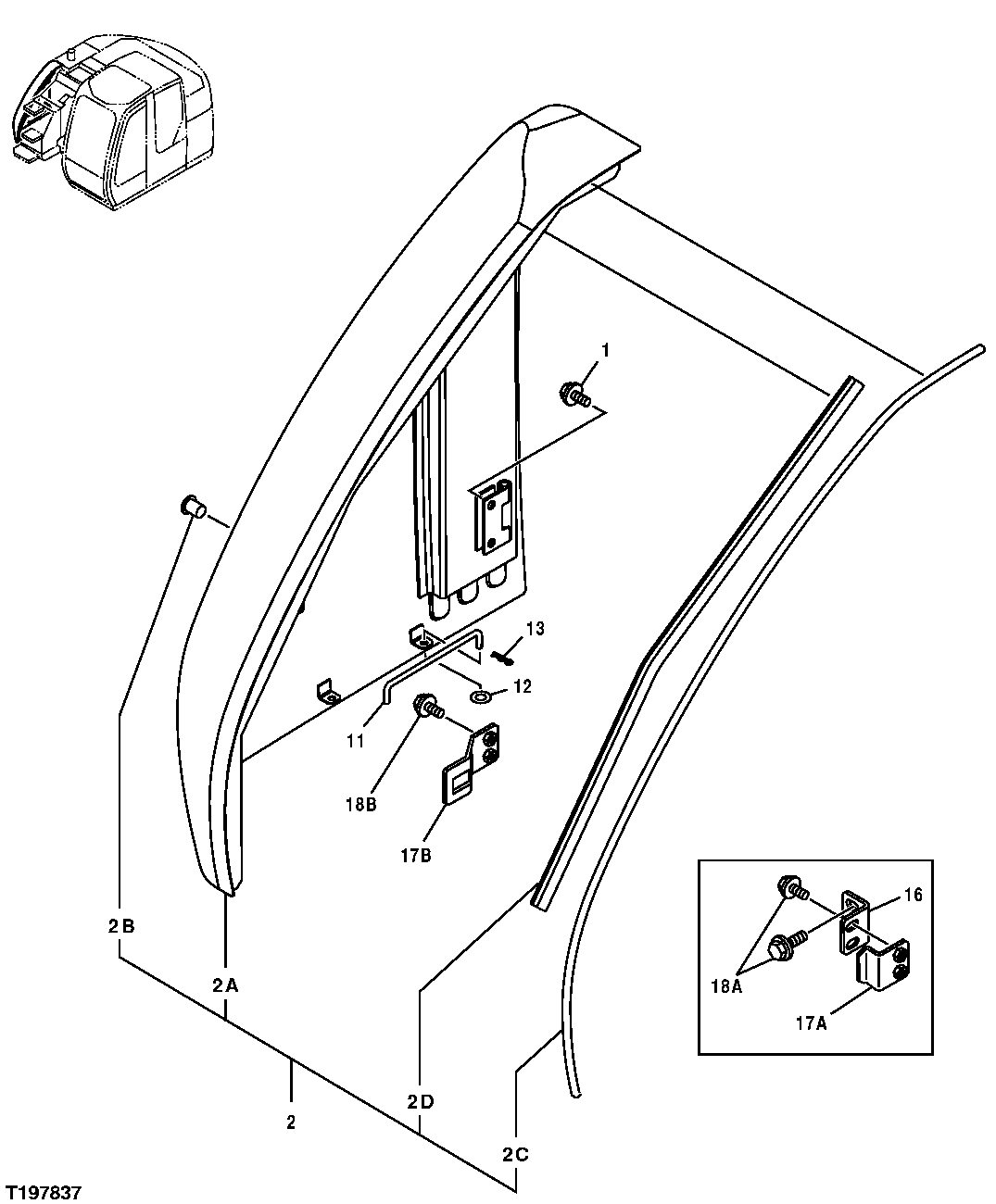

Запчасти John Deere 25CLC RTS 130 - RIGHT FRONT SIDE COVER 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30 (SUB FOR J031030)

4шт.

12M7067

Lock Washer

12 mm

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

2

7039015

Cover

1шт.

7041693

Cover

1шт.

2A

Cover

1шт.

2B

4379989

Cylinder

1шт.

2C

4462581

Sealing Trim

(SUB FOR 4451150)

1шт.

2D

4451151

Isolator

1шт.

11

4341788

Rod

(SUB FOR 4341788J)

1шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

1шт.

13

4603981

Pin

SUB FOR 4022697

1шт.

16

4462398

Bracket

1шт.

17A

9757493

Stop

1шт.

17B

4464840

Stop

1шт.

18A

19M7662

Cap Screw

M10 X 30

4шт.

12M7067

Lock Washer

12 mm

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

18B

19M7662

Cap Screw

M10 X 30

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.
