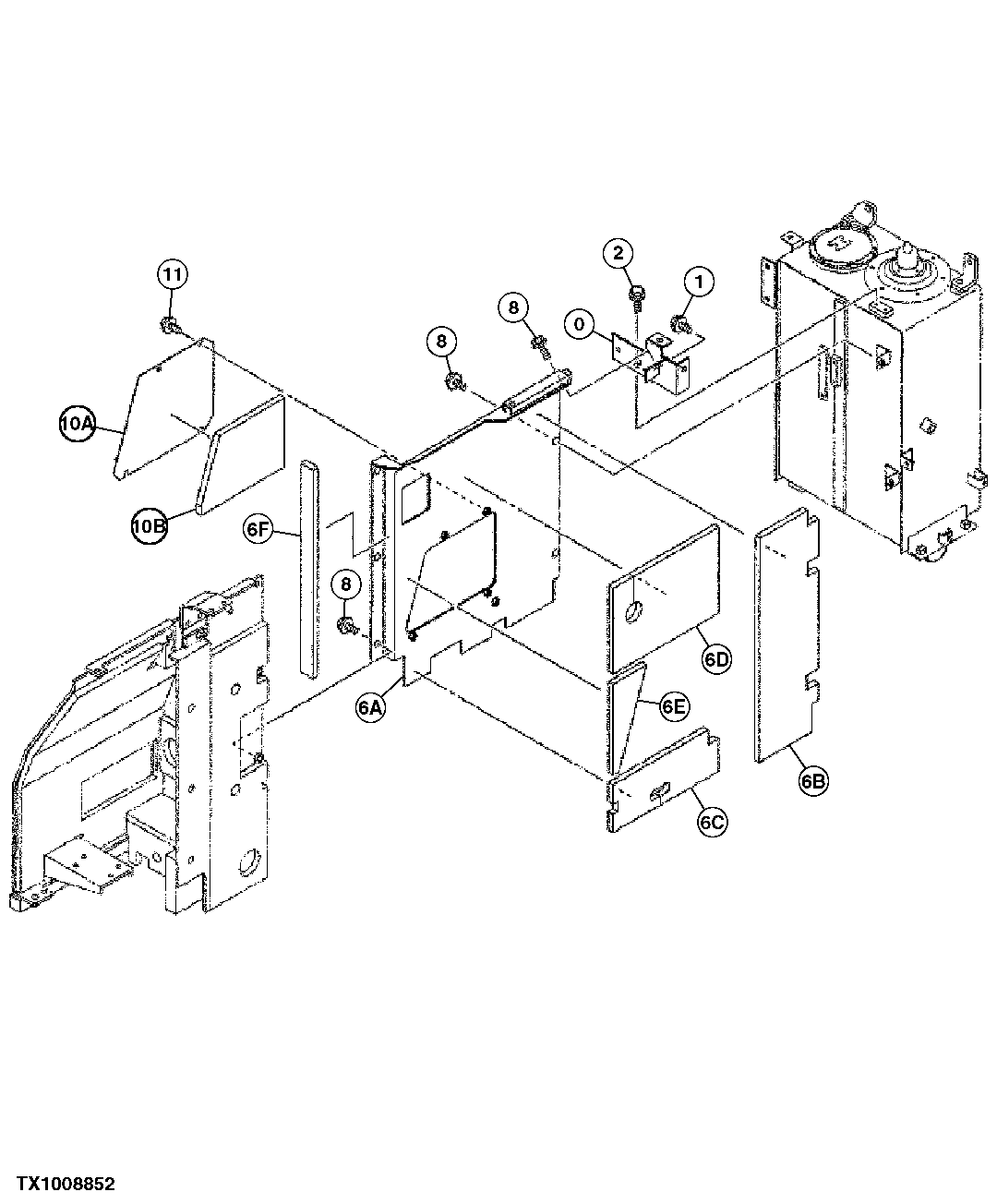

Запчасти John Deere 25CLC RTS 128 - ENGINE COMPARTMENT PANELING (SN 062993- ) 1910 HOOD OR ENGINE ENCLOSURE

0

8086994

Bracket

1шт.

1

19M7402

Cap Screw

M10 X 25 (SUB FOR J021025)

1шт.

2

Screw With Washer

( J271020 NLA)

2шт.

19M7938

Cap Screw

M10 X 20 (SUB FOR J901020)

2шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J222010)

2шт.

6

7043359

Cover

1шт.

6A

7043360

Cover

1шт.

6B

3094392

Isolator

1шт.

6C

3094393

Isolator

1шт.

6D

3094394

Isolator

1шт.

6E

4483178

Isolator

1шт.

6F

4468864

Isolator

1шт.

8

Screw With Washer

6шт.

10

8080266

Cover

1шт.

10A

Cover

1шт.

10B

4437754

Isolator

1шт.

11

19M7402

Cap Screw

M10 X 25 (SUB FOR J031025)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.
