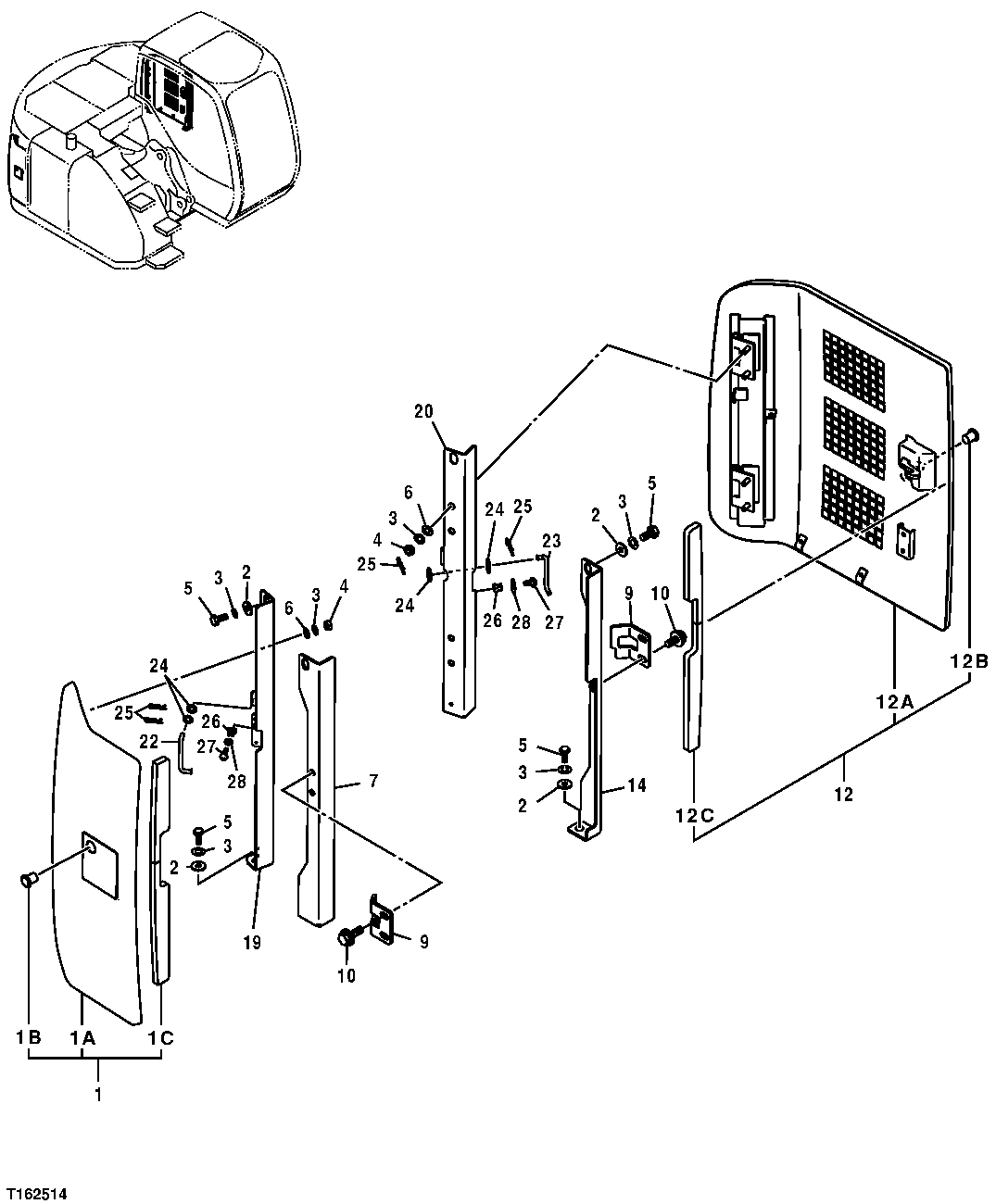

Запчасти John Deere 25CLC RTS 125 - LEFT AND RIGHT SIDE COMPARTMENT DOORS 1910 HOOD OR ENGINE ENCLOSURE

1

7042472

Door

(ASSY) (SUB FOR 7038512)

1шт.

4464839

Isolator

Not Illustrated

1шт.

1A

Door

1шт.

1B

4379989

Cylinder

1шт.

1C

3089314

Isolator

1шт.

2

24M7101

Washer

11 X 34 X 3 mm

8шт.

3

12M7066

Lock Washer

10 mm (SUB FOR A590910)

16шт.

4

14M7274

Nut

M10

8шт.

5

19M7662

Cap Screw

M10 X 30

8шт.

6

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

8шт.

7

8080220

Support

SUB FOR 8705611; ALSO ORDER 4656691

1шт.

9

4437536

Stop

2шт.

10

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

4шт.

12M7067

Lock Washer

12 mm

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12

7042471

Door

(ASSY) (ALSO ORDER 4464 839 ) (SUB FOR 7038523)

1шт.

4464839

Isolator

1шт.

12A

Door

( 6019203 NLA)

1шт.

12B

4379989

Cylinder

1шт.

12C

3089314

Isolator

1шт.

14

8080233

Support

1шт.

19

8081891

Bracket

1шт.

20

8082029

Bracket

1шт.

22

4451169

Latch

1шт.

23

4451170

Latch

1шт.

24

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

4шт.

25

H132922

Cotter Pin

(SUB FOR 4022697)

4шт.

26

4330276

Holder

2шт.

27

21M7396

Screw

M4 X 10

2шт.

28

24M7117

Washer

4.300 X 9 X 0.800 mm (SUB FOR A590104)

2шт.
