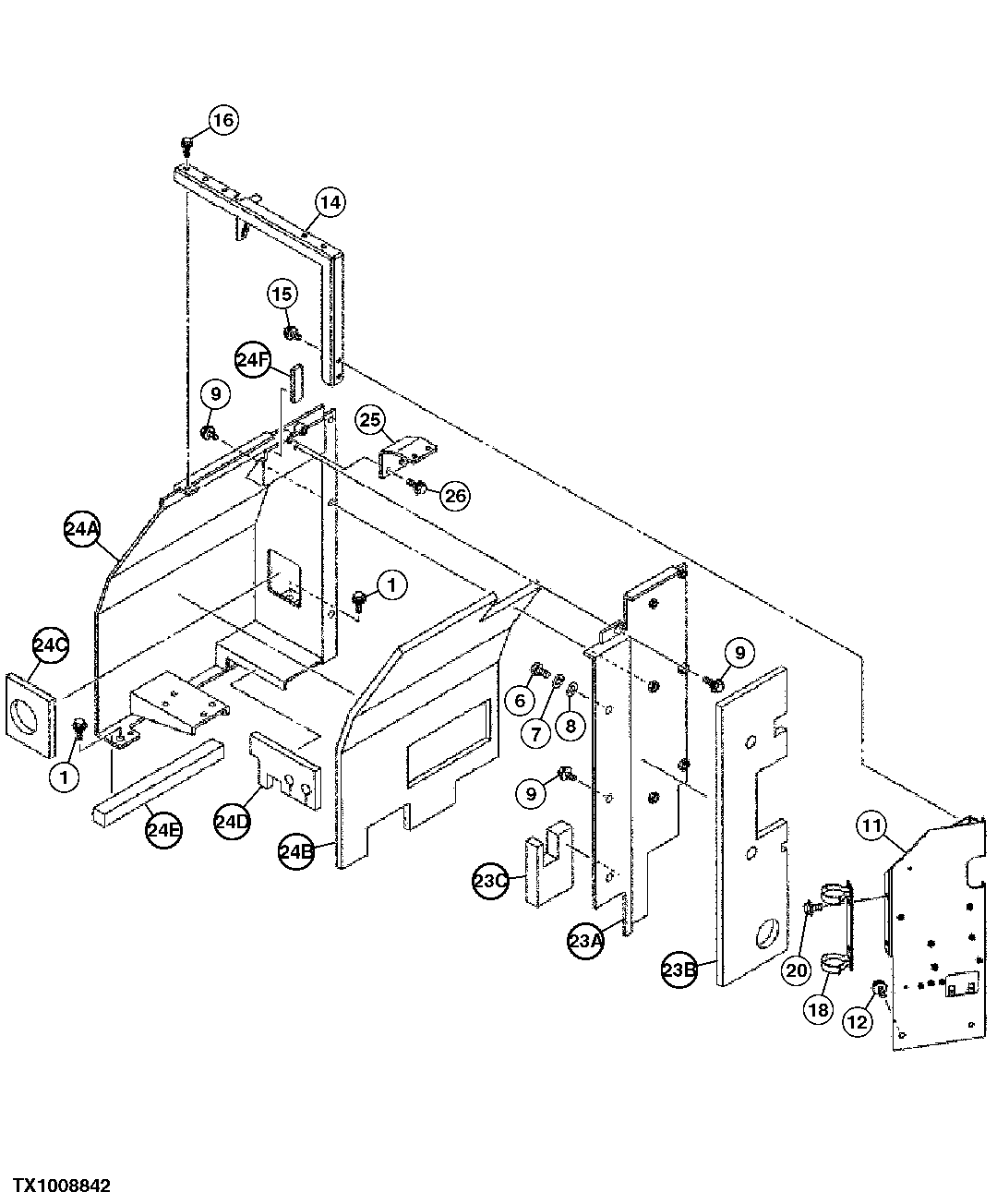

Запчасти John Deere 25CLC RTS 124 - LEFT SIDE COMPARTMENT PANELING (SN 062993- ) 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30 SUB FOR J031030

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

6

19M8035

Cap Screw

M16 X 35

1шт.

7

12H294

Lock Washer

5/8" SUB FOR A590916

1шт.

8

24M7053

Washer

17 X 30 X 3 mm SUB FOR A590116

1шт.

9

Screw With Washer

J281025 NLA

6шт.

19M7402

Cap Screw

M10 X 25 SUB FOR J901025

6шт.

4486055

Washer

6шт.

11

7040026

Support

1шт.

12

19M7662

Cap Screw

M10 X 30 SUB FOR J021025

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

14

7040023

Support

1шт.

15

19M7662

Cap Screw

M10 X 30 SUB FOR J021030

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

16

4678444

Bolt

SUB FOR J021035, ALSO O RDER A590910 AND J222010

1шт.

12M7066

Lock Washer

10 mm SUB FOR A590910

1шт.

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR J222010

1шт.

18

FXV00000110

Holder

SUB FOR 4656678 AND 4375688

1шт.

20

19M7662

Cap Screw

M10 X 30 SUB FOR J021025

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

23

7043374

Cover

1шт.

23A

7043375

Cover

1шт.

23B

3096444

Cover

1шт.

23C

4437752

Isolator

1шт.

24

7043647

Cover

1шт.

24A

5008691

Cover

1шт.

24B

3096232

Isolator

1шт.

24C

4485410

Isolator

1шт.

24D

4485410

Isolator

1шт.

24E

4437750

Isolator

1шт.

24F

4450524

Isolator

1шт.

25

8090611

Bracket

1шт.

26

Screw With Washer

J271030 NLA

2шт.

19M7662

Cap Screw

M10 X 30 SUB FOR J901030

2шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR J222010

2шт.
