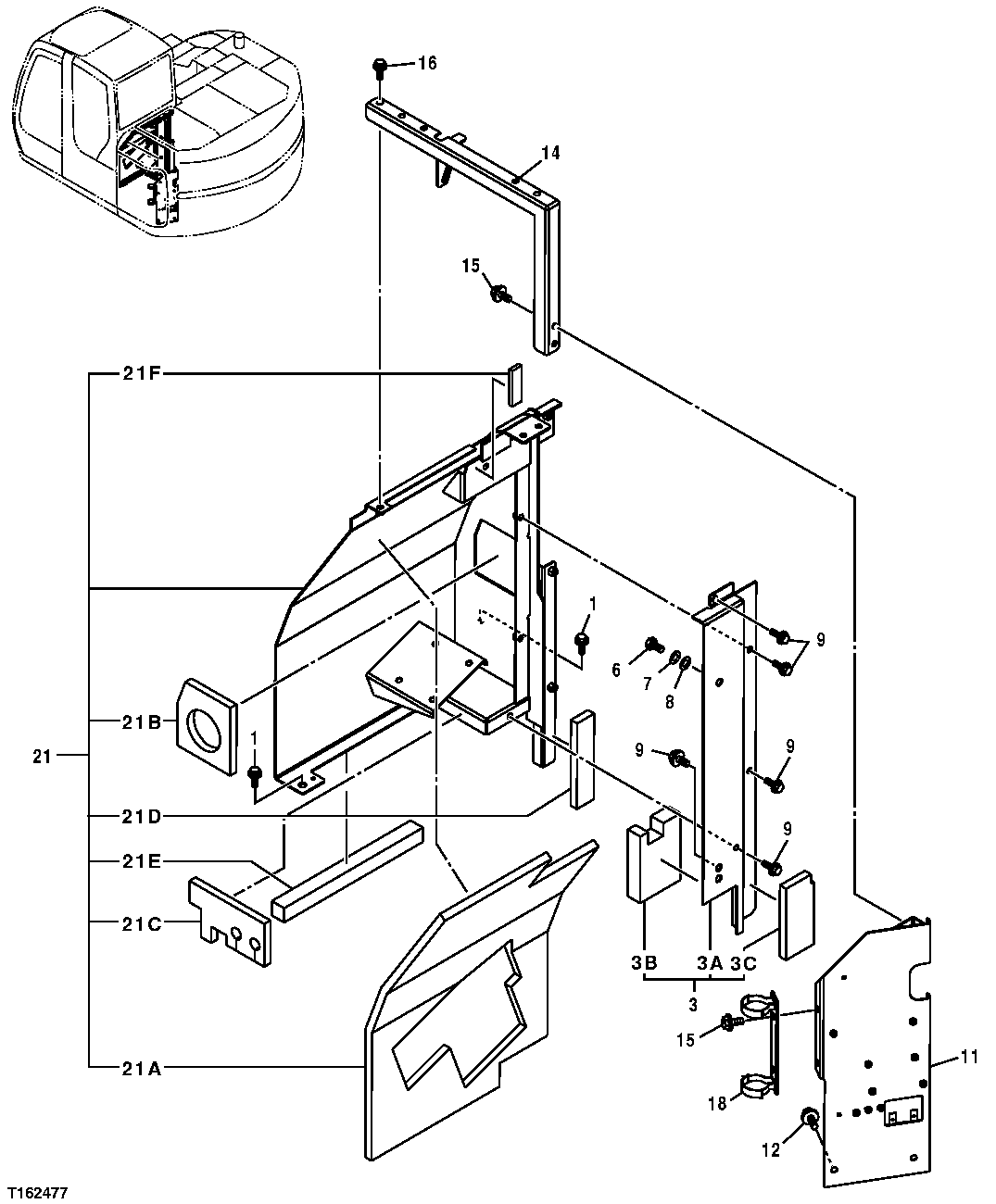

Запчасти John Deere 25CLC RTS 123 - LEFT SIDE COMPARTMENT PANELING (SN -062992) 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30 SUB FOR J031030

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

3

8080263

Cover

1шт.

3A

Cover

1шт.

3B

4437752

Isolator

1шт.

3C

4439703

Isolator

1шт.

6

19M8035

Cap Screw

M16 X 35

1шт.

7

12H294

Lock Washer

5/8" SUB FOR A590916

1шт.

8

24M7053

Washer

17 X 30 X 3 mm SUB FOR A590116

1шт.

9

19M7402

Cap Screw

M10 X 25 SUB FOR J031025

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

5шт.

11

7040026

Support

1шт.

12

19M7662

Cap Screw

M10 X 30 SUB FOR J021025

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

14

7040023

Support

1шт.

15

19M7662

Cap Screw

M10 X 30 SUB FOR J021030

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

16

4678444

Bolt

SUB FOR J021035, ALSO O RDER A590910 AND J222010

1шт.

12M7066

Lock Washer

10 mm SUB FOR A590910

1шт.

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR J222010

1шт.

18

FXV00000110

Holder

SUB FOR 4656678 AND 4375688

1шт.

21

5007137

Cover

1шт.

21A

3089435

Isolator

1шт.

21B

4437749

Isolator

1шт.

21C

4437748

Isolator

1шт.

21D

4438213

Isolator

1шт.

21E

4437750

Isolator

1шт.

21F

4450524

Isolator

1шт.
