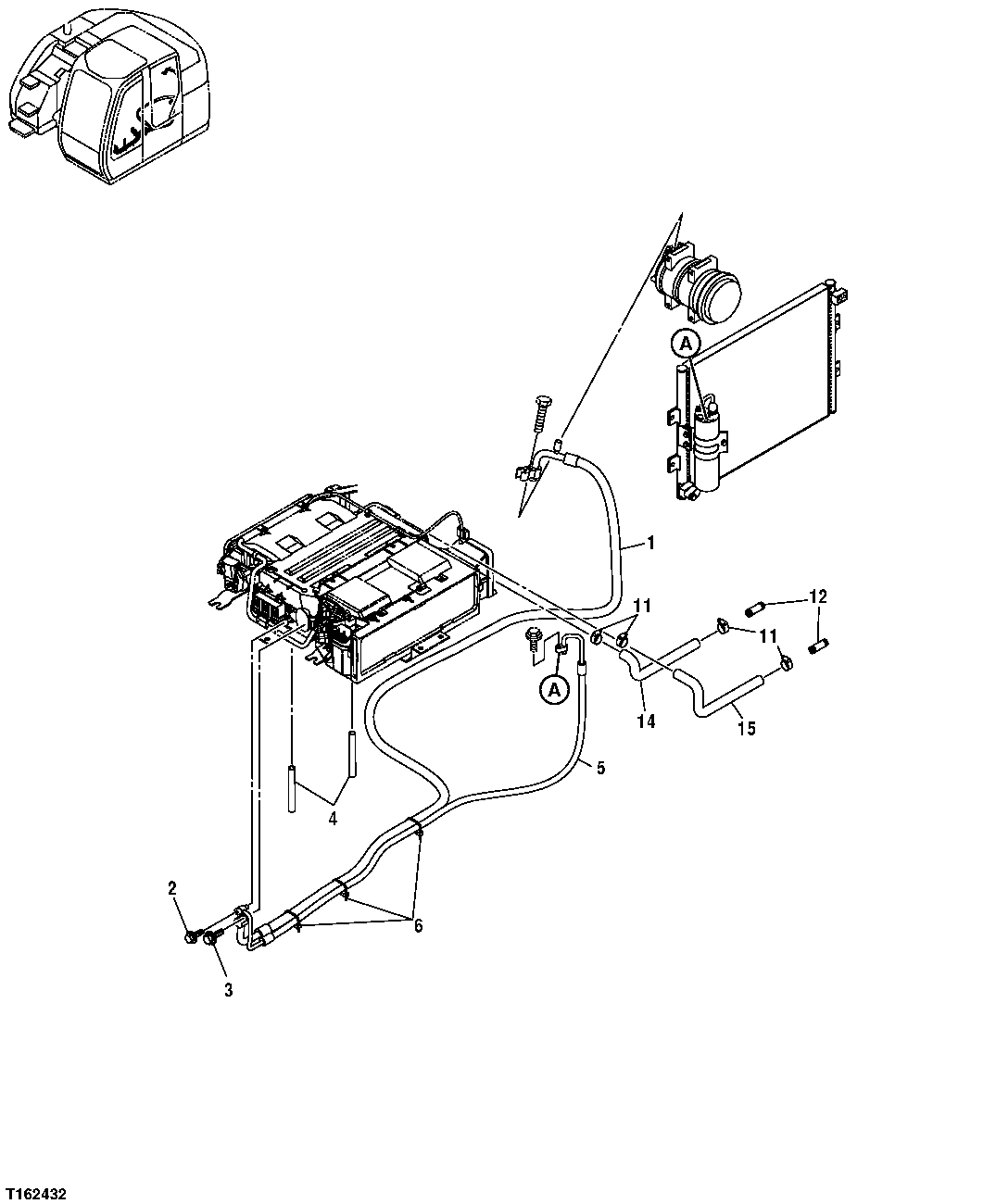

Запчасти John Deere 25CLC RTS 118 - AIR CONDITIONER LINES 1833 CONDENSER, EVAPORATOR & LINES

1

4439709

Refrigerant Hose

1шт.

19M8260

Cap Screw

M10 X 40

1шт.

12M7054

Lock Washer

19 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

4421939

O-Ring

(NOT ILLUSTRATED)

2шт.

2

19M7874

Cap Screw

M6 X 30 SUB FOR J020630

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

12H302

Lock Washer

1/4"

1шт.

3

19M7163

Cap Screw

M8 X 25 SUB FOR J020825

1шт.

Washer

12M7065 NLA

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

4

Hose

(MAKE FROM TY24398)(CTL)

2шт.

5

4439708

Refrigerant Hose

1шт.

4422000

O-Ring

(NOT ILLUSTRATED)

2шт.

6

H77698

Tie Band

3шт.

11

FF500010

Hose Clamp

SUB FOR 4514699

4шт.

12

4347396

Fitting

2шт.

14

4444297

Refrigerant Hose

1шт.

15

4444298

Refrigerant Hose

1шт.
