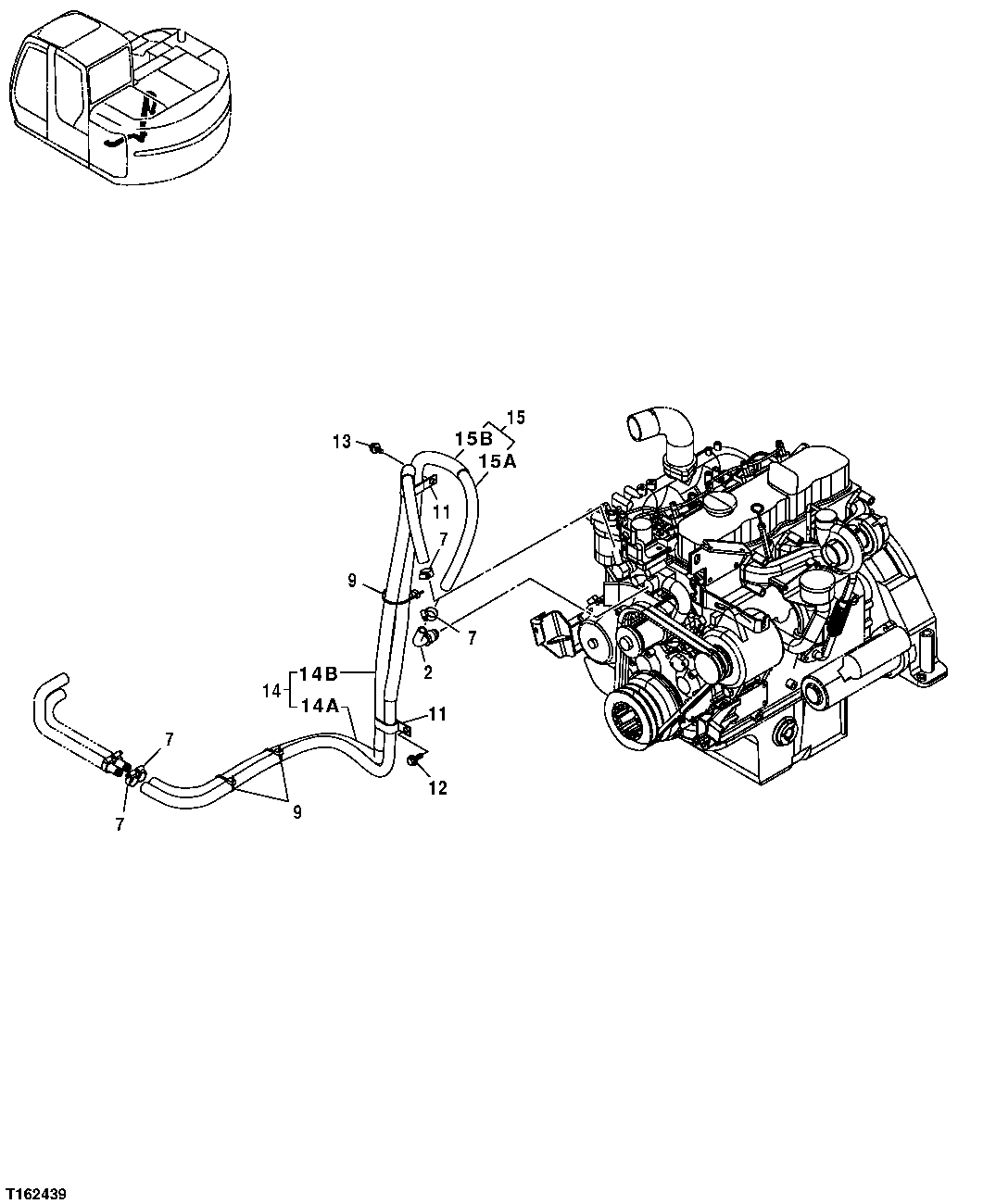

Запчасти John Deere 25CLC RTS 112 - HEATER HOSES 1831 HEATER, HOSES & CONTROLS

2

9745899

Fitting

1шт.

7

FF500010

Hose Clamp

SUB FOR 4514699

4шт.

9

H77698

Tie Band

3шт.

11

R50454

Clamp

SUB FOR 4192034

2шт.

12

19M7402

Cap Screw

M10 X 25 SUB FOR J011025

1шт.

12M7066

Lock Washer

10 mm

1шт.

13

19M7162

Cap Screw

M8 X 16 SUB FOR J020816

2шт.

Washer

12M7065 NLA

2шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

2шт.

14

Hose

( 9199704 NLA) (ORDER INDIVIDUAL COMPONENTS)

1шт.

14A

Hose

4439340 NLA (MAKE FROM TY22328 (CTL))

1шт.

14B

Hose Guard

(SUB FOR 4320661)(MAKE FROM XHG-0 75 , CUT TO LENGTH) ( 4327294 NLA)

2шт.

15

Hose

9199705 NLA (ORDER INDIVIDUAL COMPONENTS)

1шт.

15A

Hose

4439346 NLA (MAKE FROM TY22328 (CTL))

1шт.

15B

Hose Guard

(SUB FOR 4320661)(MAKE FROM XHG-0 75 , CUT TO LENGTH) ( 4327294 NLA)

2шт.
