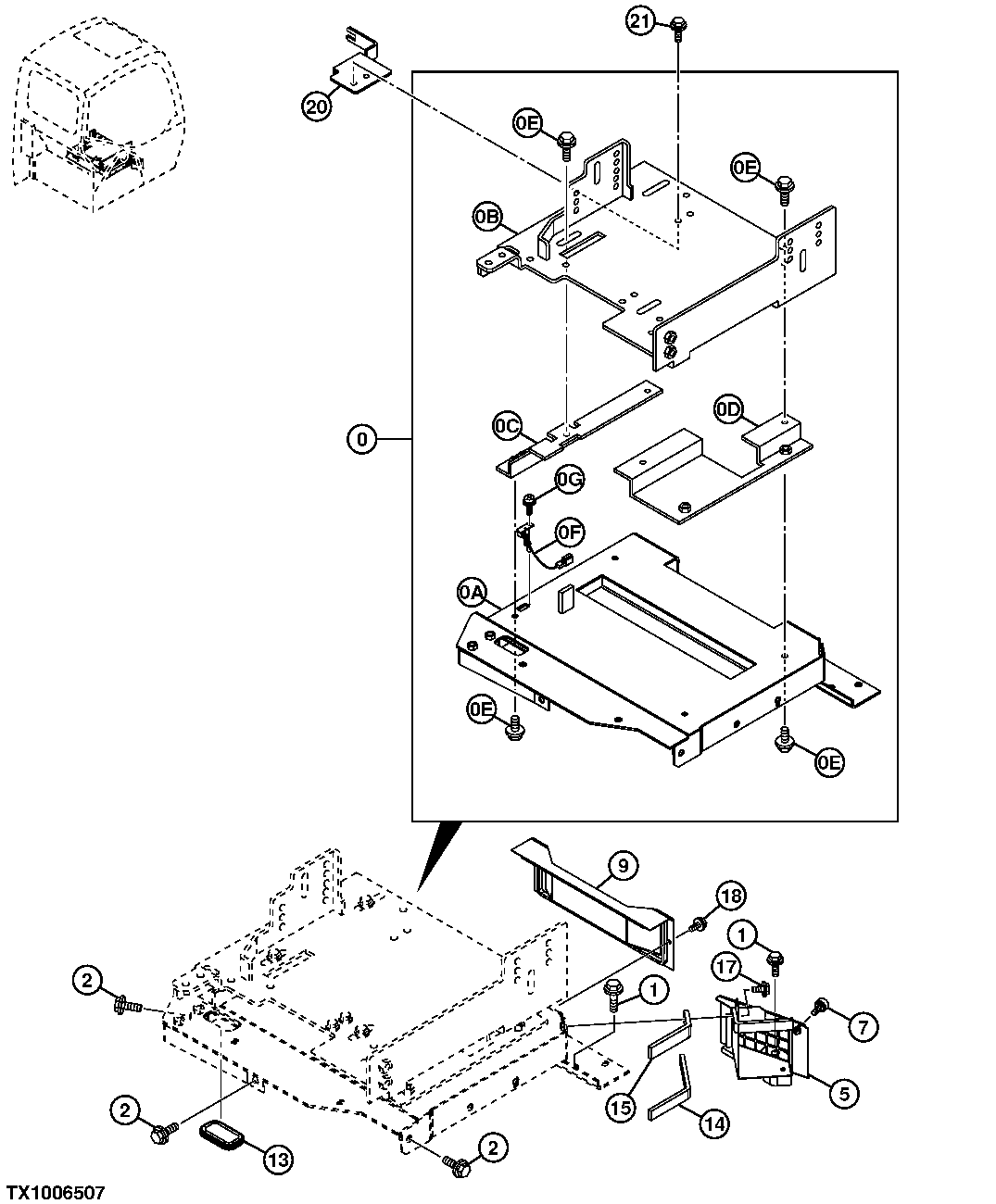

Запчасти John Deere 25CLC RTS 110 - SUSPENSION SEAT BASE 1821 SEAT AND SEAT BELTS

0

Stand

(SUSPENSION SEAT) ( 921064 3 NLA) (FURNISH COMPONENTS)

1шт.

0A

6019448

Stand

1шт.

0B

6020732

Base

1шт.

0C

8086857

Bracket

(LH)

1шт.

0D

8086858

Bracket

(RH)

1шт.

0E

19M7402

Cap Screw

M10 X 25 (SUB FOR J901025)( J271025 NLA)

8шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J222010)

8шт.

0F

4448925

Sensor

1шт.

0G

Screw

( J460310 NLA)

1шт.

21M7394

Screw

M3 X 10

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

1

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)( J271030 NLA)

4шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J222010)

4шт.

2

19M7402

Cap Screw

M10 X 25 (SUB FOR J901025)( J271025 NLA)

3шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J222010)

3шт.

5

7039100

Grille

1шт.

7

4446097

Knob

1шт.

9

8081502

Cover

1шт.

13

4445861

Bushing

1шт.

14

4455711

Isolator

1шт.

15

4455714

Isolator

1шт.

17

19M7077

Cap Screw

M6 X 20 (SUB FOR J900620)( J260620 NLA)

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR A590106)

1шт.

18

19M7077

Cap Screw

M6 X 20 (SUB FOR J900620)( J260620 NLA)

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR A590106)

2шт.

20

8086907

Bracket

1шт.

21

19M7077

Cap Screw

M6 X 20 (SUB FOR J900620)( J260620 NLA)

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR A590106)

2шт.
