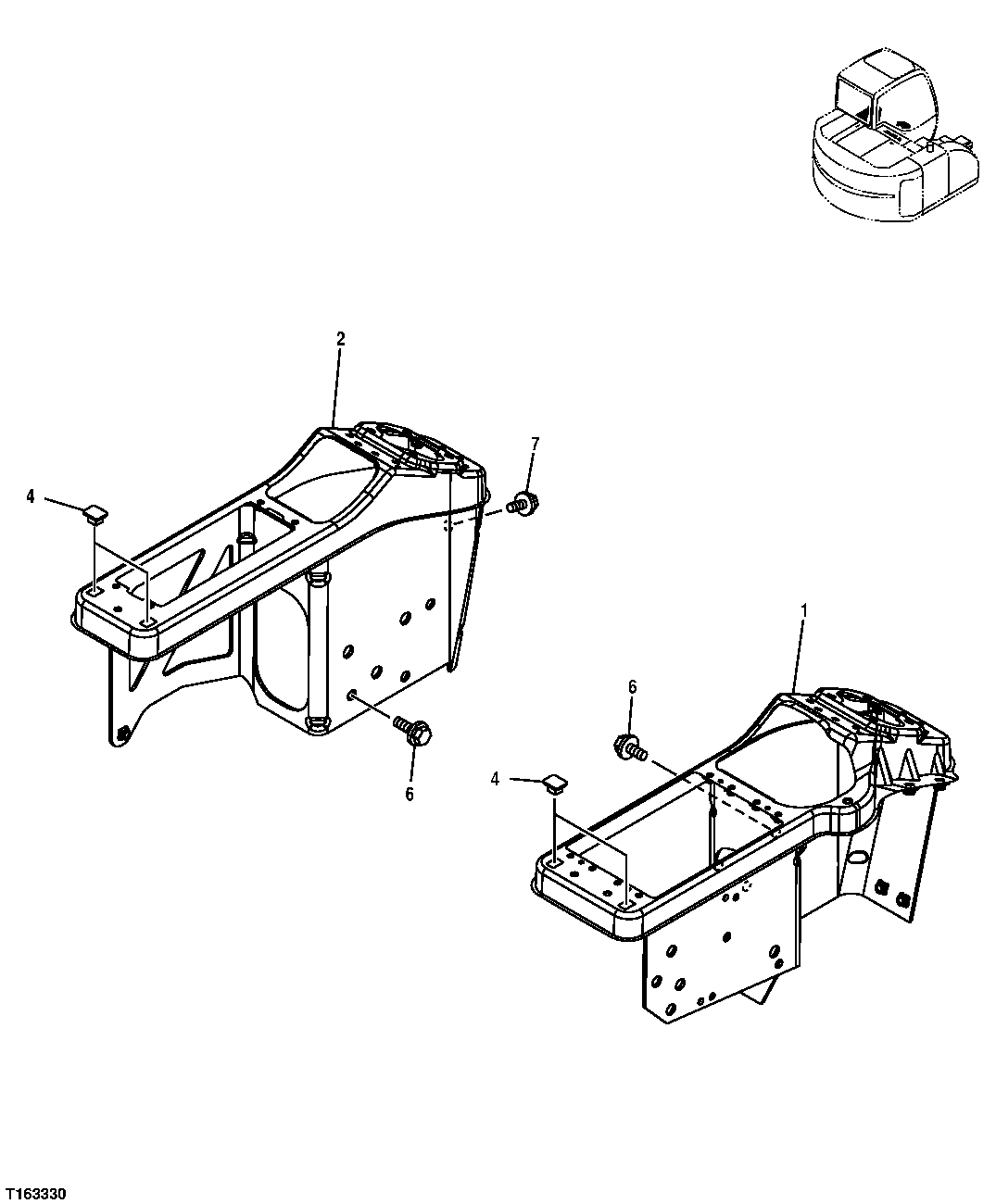

Запчасти John Deere 25CLC RTS 101 - CONSOLE 1816 INSTRUMENT & CONTROL MOUNTING STRUCTURE

1

7039797

Console

1шт.

2

7039796

Console

1шт.

4

4351255

Nut

4шт.

6

19M7402

Cap Screw

M10 X 25 SUB FOR J051025

6шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

6шт.

12M7066

Lock Washer

10 mm

6шт.

7

19M7163

Cap Screw

M8 X 25 SUB FOR J020825

1шт.

Washer

12M7065 NLA

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.
