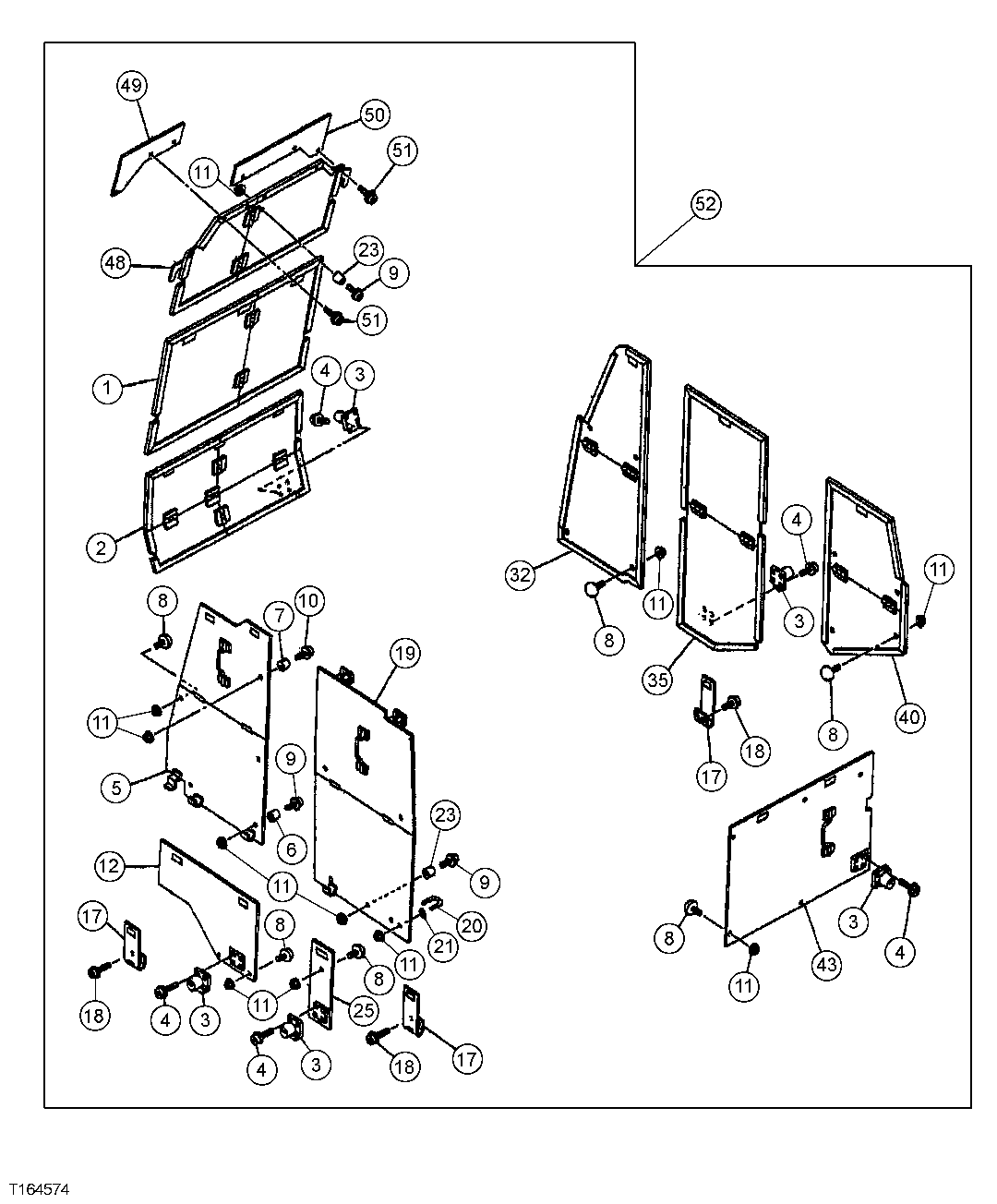

Запчасти John Deere 25CLC RTS 99 - CAB VANDAL PROTECTION KIT 1810 OPERATORS ENCLOSURE

1

4604759

Assembly Line Parts

1шт.

2

4604760

Assembly Line Parts

1шт.

3

4361601

Lock

5шт.

4

21M7022

Screw

M5 X 20

20шт.

12M7064

Lock Washer

5 mm

20шт.

5

4604761

Assembly Line Parts

1шт.

6

4604762

Assembly Line Parts

2шт.

7

4604763

Assembly Line Parts

2шт.

8

9738682

Bumper

18шт.

9

21M7022

Screw

M5 X 20

7шт.

10

21M7251

Screw

M5 X 25

4шт.

11

19M7297

Cap Screw

M8 X 12

29шт.

12

4604764

Assembly Line Parts

1шт.

17

TH108983

Hinge

(SUB FOR 4207538)

3шт.

18

21M7249

Screw

M5 X 10 (SUB FOR AT176636)

4шт.

19

4604765

Assembly Line Parts

1шт.

20

4604766

Assembly Line Parts

1шт.

21

24M7027

Washer

5.300 X 10 X 1 mm

4шт.

23

4604767

Assembly Line Parts

5шт.

25

4604768

Assembly Line Parts

1шт.

32

4604769

Assembly Line Parts

1шт.

35

4604770

Assembly Line Parts

1шт.

40

4604771

Assembly Line Parts

1шт.

43

4604772

Assembly Line Parts

1шт.

48

4608027

Assembly Line Parts

1шт.

49

4608028

Assembly Line Parts

1шт.

50

4608029

Cover

1шт.

51

J680516

Screw

6шт.

52

Field Installation Kit

(WHOLE GOODS) Cab Vandal Pr otection Kit ( 9227382 NLA)

1шт.
