Запчасти John Deere 25CLC RTS 97 - Front Guard (Lower) 1810 OPERATORS ENCLOSURE

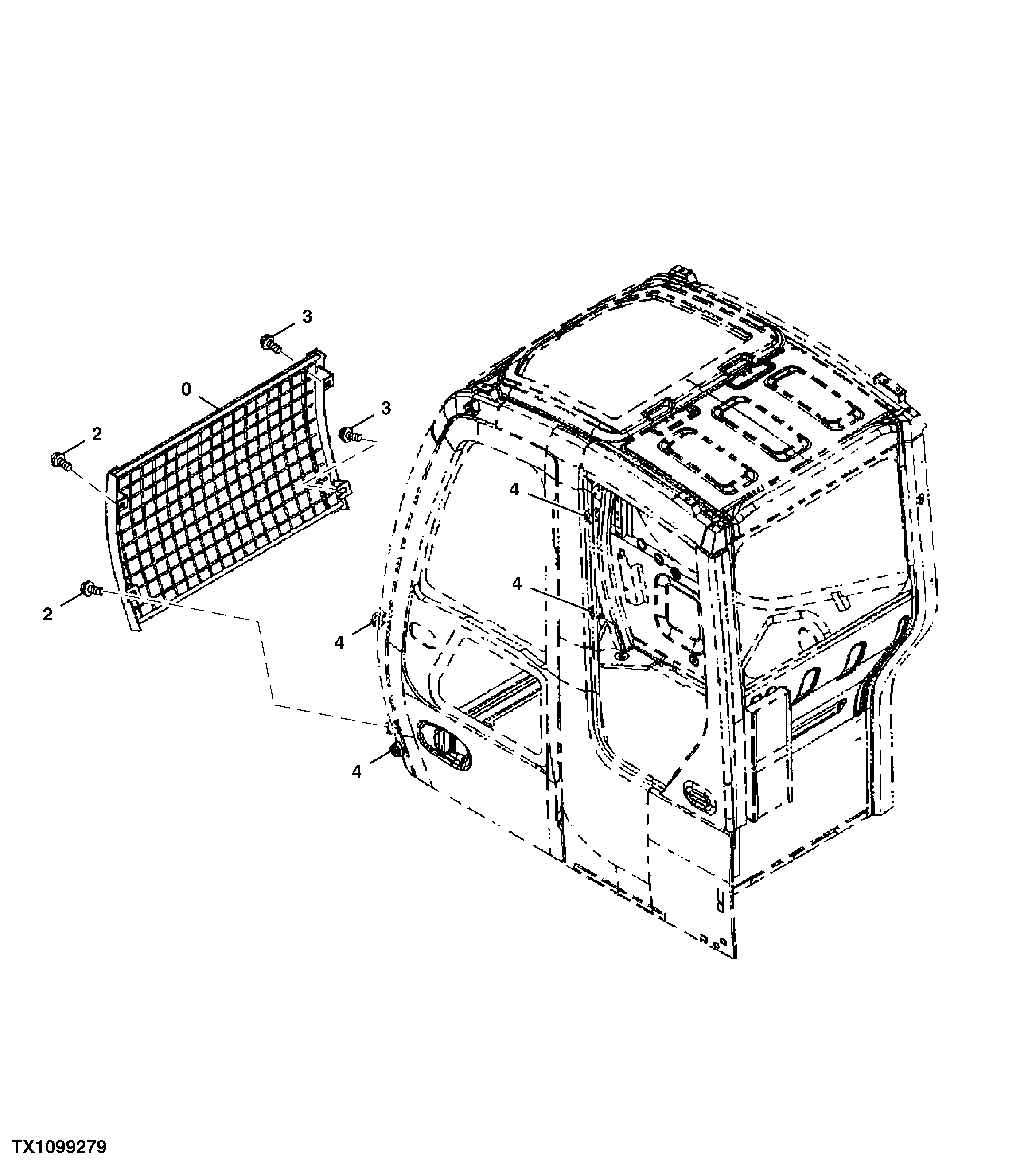

Схема запчастей John Deere 25CLC RTS - 97 - Front Guard (Lower) 1810 OPERATORS ENCLOSURE

Артикул

Название

Примечание

Количество

0

4459618

Guard

1шт.

2

J031025

Bolt

Machines Built Before May 2003

2шт.

19M7402

Cap Screw

M10 X 25 Machines Built Before May 2003

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm Mac hines Built Before May 2003

2шт.

12M7066

Lock Washer

10 mm Machines Built Before May 2003

2шт.

J281025

Bolt

NLA Machines Built May 2003 and After

2шт.

19M7402

Cap Screw

M10 X 25 NLA Machines B uilt May 2003 and After

2шт.

4486055

Washer

NLA Machines Built May 2003 and After

2шт.

3

J021025

Cap Screw

Machines Built Before May 2003

2шт.

19M7402

Cap Screw

M10 X 25 Machines Built Before May 2003

2шт.

J271025

Bolt

NLA Machines Built May 2003 and After

2шт.

19M7402

Cap Screw

M10 X 25 NLA Machines B uilt May 2003 and After

2шт.

24M7346

Washer

11 X 20 X 2 mm NLA Machine s Built May 2003 and After

2шт.

4

4459632

Bracket

4шт.

Выбрано товаров: 14
