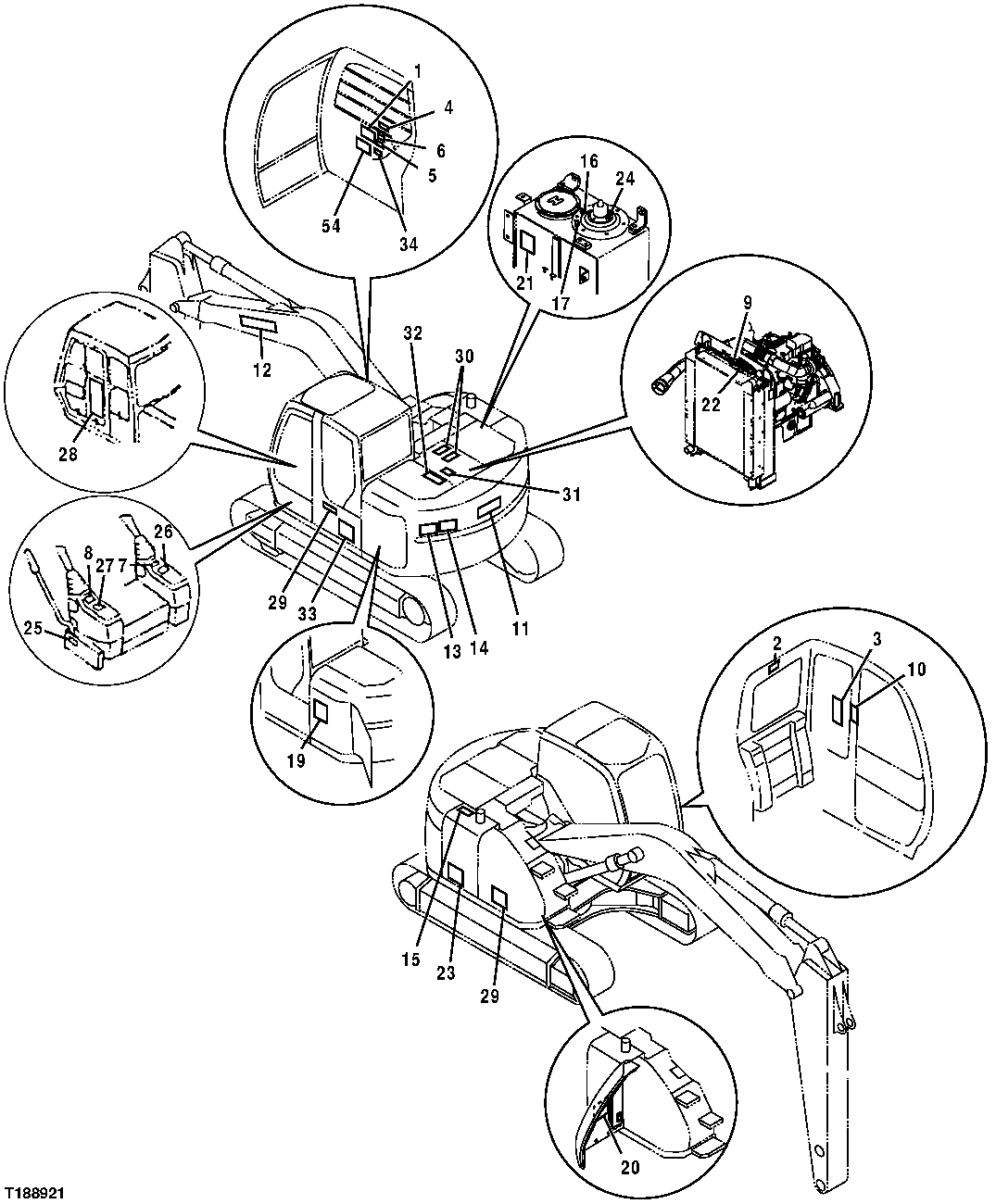

Запчасти John Deere 25CLC RTS 68 - LABELS AND DECALS 1322 DECALS AND TRADEMARKS

1

T200476

Label

ENGINE OPERATION

1шт.

2

T187535

Label

CAUTION (WINDOW LOCK) (FRONT)

1шт.

3

T200313

Label

LIFT CAPACITY

1шт.

4

T146668

Safety Sign

WARNING (CRUSHING ARTICULATION)

1шт.

5

T159887

Safety Sign

CAUTION (READ OPERATOR'S MANUAL)

1шт.

6

T146667

Safety Sign

DANGER (ELECTROCUTION)

1шт.

7

Label

(SUB T201519 ) (SUB FOR T159842, TH IS APPLICATION)OPERATOR PATTERN (RH)

1шт.

8

Label

(SUB T201519 ) (SUB FOR T159841, TH IS APPLICATION)OPERATOR PATTERN (LH)

1шт.

9

T146671

Safety Sign

CAUTION (PRESSURIZED) (RADIATOR CAP)

1шт.

10

T190393

Label

IMPORTANT (BREAK WINDOW FOR SECONDARY EXIT)

1шт.

11

T184020

Label

Deere Counterweight

1шт.

12

T180076

Label

Deere

2шт.

13

T145893

Safety Sign

WARNING (STAY CLEAR)

2шт.

14

JD5909

Reflector

RED

2шт.

15

T79632

Label

DIESEL ONLY

1шт.

16

T101942

Label

HYDRAULIC OIL ONLY

1шт.

17

P63448

Label

PUMP BLEED INFORMATION

1шт.

18

T146103

Safety Sign

DANGER (BYPASS START) (NOT ILLUSTRATED)

1шт.

19

4450833

Label

AIR CLEANER

1шт.

20

T233248

Label

Periodic Maintenance (SU B FOR T200340 OR T208020)

1шт.

21

T149983

Label

IMPORTANT (OIL LEVEL)

1шт.

22

3088018

Label

COOLING SYSTEM

1шт.

23

T200341

Label

MODEL DESIGNATION (RH)

1шт.

24

T187710

Label

CAUTION (HYDRAULIC RESERVOIR OIL CAP)

1шт.

25

4299059

Label

HYDRAULIC LOCKOUT

1шт.

26

4288417

Label

IGNITION SWITCH

1шт.

27

4288971

Label

ETHER AID / MOTION CANCEL

1шт.

28

2050226

Label

VANDAL COVER INSTALLATION INSTRUCTIONS

1шт.

29

JD5765

Label

LEAPING DEERE

2шт.

30

T25838

Mat

ANTI-SKID

2шт.

31

H21259

Mat

(CUT TO 300 X 100 MM)

1шт.

32

H21259

Mat

(CUT TO 120 X 350 MM)

1шт.

33

T200343

Label

MODEL DESIGNATION (LH)

1шт.

34

T163997

Label

BLADE OPERATION

1шт.

54

T201519

Label

Operator Pattern (SUB F OR T159842 AND T159841)

1шт.
