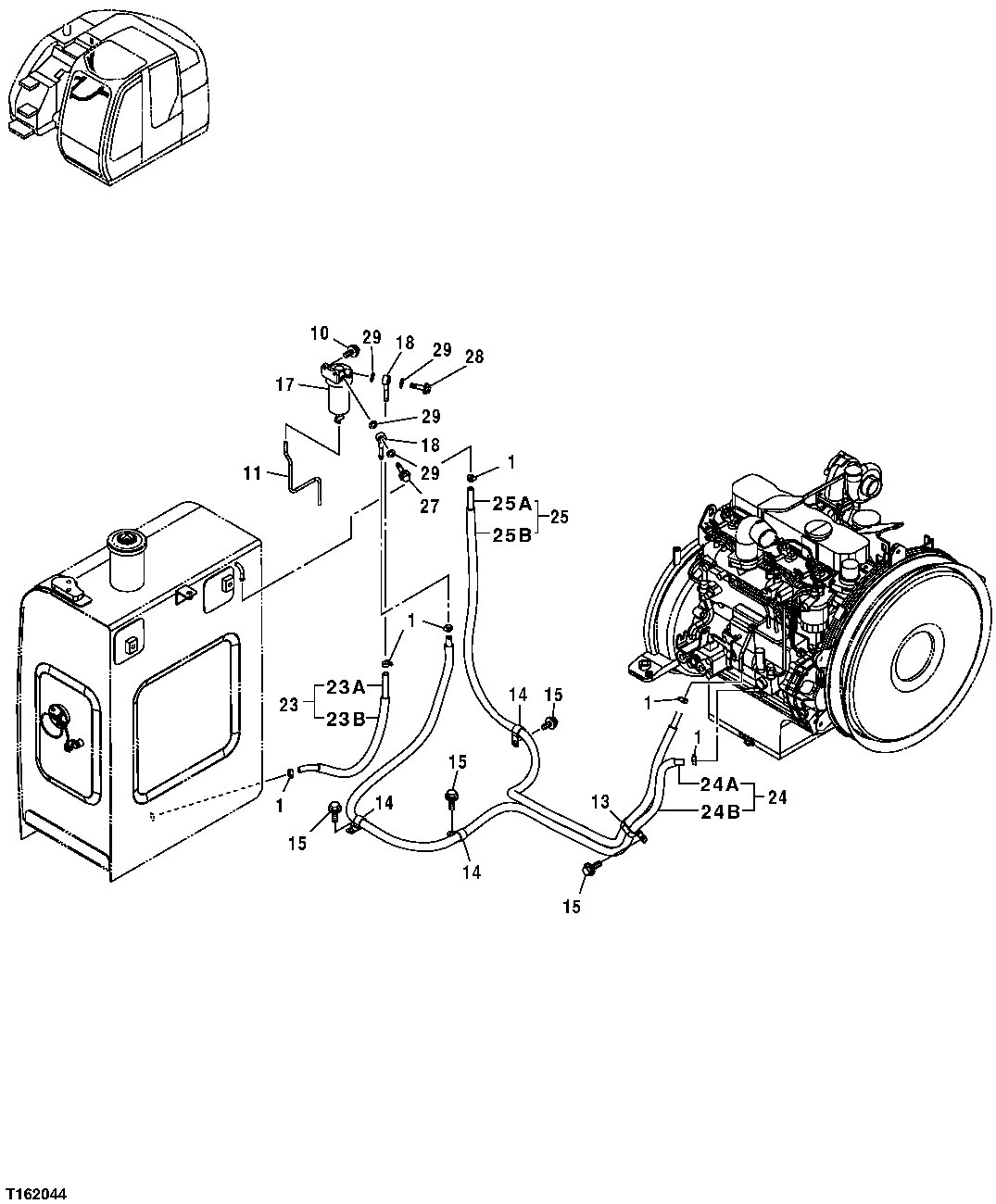

Запчасти John Deere 25CLC RTS 65 - FUEL LINES 0563 FUEL LINES & FITTINGS

1

TY22464

Clamp

SUB FOR AR21836 OR 4514700

6шт.

10

19M7288

Cap Screw

M8 X 30 SUB FOR J010830

2шт.

Washer

12M7065 NLA

2шт.

11

Bulk Hose

4171509 NOT AVAILABLE FURNISH P MK010-0406, CUT TO 600 MM LENGTH

1шт.

13

R50454

Clamp

SUB FOR 4192034

1шт.

14

R72659

Clamp

SUB FOR 4235654

3шт.

15

19M7938

Cap Screw

M10 X 20 SUB FOR J011020

4шт.

17

1132008410

Sediment Bowl

SUB FOR 4452913 AND 4452161

1шт.

18

4452162

Line

2шт.

23

Hose

9193281 NLA, ORDER COMPONENTS

1шт.

23A

Bulk Hose

USE 4441611 IF AVAILABLE

1шт.

23B

4441612

Wire

1шт.

24

Hose

9202059 NLA, ORDER COMPONENTS

1шт.

24A

Hose

MF TY24398, CUT TO LENGTH

1шт.

24B

Hose Guard

SUB FOR 4455515, MF TY26190 CTL 2200MM

1шт.

25

Hose

9202060 NLA, ORDER COMPONENTS

1шт.

25A

Hose

MF TY24398, CUT TO LENGTH

1шт.

25B

Hose Guard

SUB FOR 4455516, MF TY26190 CTL 2200MM

1шт.

27

Bolt

USE 4452163 IF AVAILABLE

1шт.

28

4452164

Bolt

1шт.

29

8982513450

Packing

SUB FOR 4452165

4шт.
