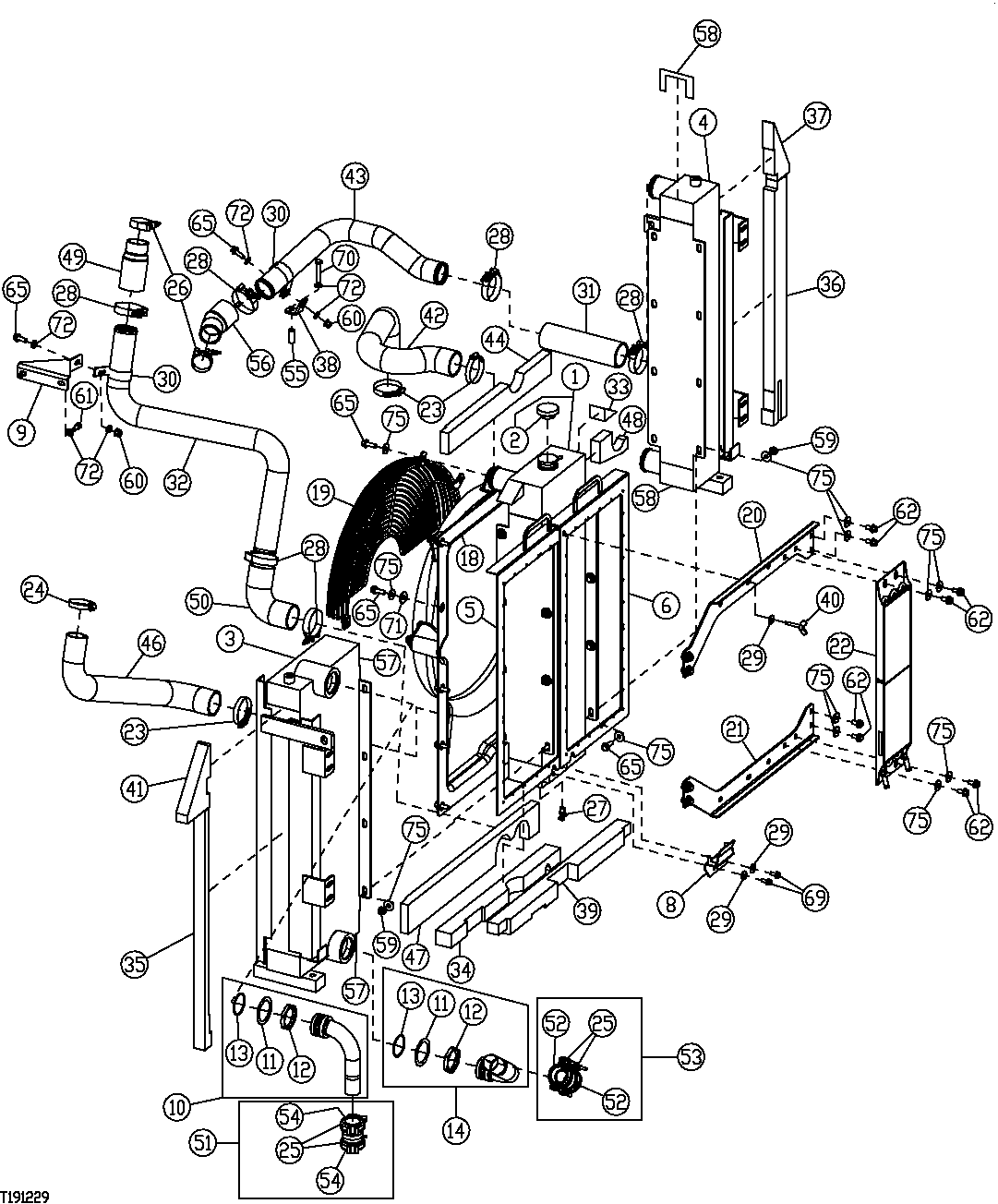

Запчасти John Deere 2054 69 - RADIATOR, OIL COOLER AND CHARGE AIR COOLER 0510 ENGINE COOLING SYSTEMS

1

AT317586

Radiator

SUB FOR AP35298

1шт.

2

AT173610

Filler Cap

1шт.

3

AT317587

Oil Cooler

SUB FOR AP35299

1шт.

4

AT317606

Intercooler

Charge Air Cooler SUB FOR AP35300

1шт.

5

AP35301

Screen

LEFT TRASH SCREEN

1шт.

6

AP35302

Screen

RIGHT TRASH SCREEN

1шт.

8

AP35306

Shroud

1шт.

9

AP35307

Angle

1шт.

10

AP35316

Fitting

1шт.

11

P61266

Washer

2шт.

12

P61267

Lock Nut

2шт.

13

R43750

O-Ring

2шт.

14

AP35317

Fitting

1шт.

18

AP35337

Shroud

FAN SHROUD

1шт.

19

AP35338

Guard

FAN GUARD

1шт.

20

AP35372

Angle

1шт.

21

AP35373

Angle

1шт.

22

AP35374

Heat Sink

FUEL COOLER

1шт.

23

DH400620

Hose Clamp

( AR21999 NOT USED FOR THIS APPLICTION)

3шт.

24

TY22485

Hose Clamp

(SUB FOR 4357297)( AR40418 N OT USED FOR THIS APPLICTION)

1шт.

25

Hose Clamp

(PROVIDED WITH KITS)

4шт.

26

AT105289

Clamp

2шт.

27

AT13740

Drain Valve

1шт.

28

AT198270

Clamp

6шт.

29

24M7298

Washer

8.400 X 25 X 2 mm

3шт.

30

F1451R

Clamp

2шт.

31

TY24409

Bulk Hose

(SUB FOR P61231)(CHARGE AIR COOLER TO INTAKE MANIFOLD)

1шт.

32

P61235

Tube

(TURBO TO CHARGE AIR COOLER)

1шт.

33

P61236

Isolator

(TOP TANK BAFFLE)

2шт.

34

P61237

Pad

1шт.

35

P61238

Pad

1шт.

36

P61239

Pad

1шт.

37

P61249

Pad

1шт.

38

P61265

Angle

1шт.

39

P61273

Pad

1шт.

40

P61323

Wing Screw

1шт.

41

P61332

Pad

1шт.

42

P61333

Radiator Hose

1шт.

43

P61334

Tube

(CHARGE AIR COOLER TUBE)

1шт.

44

P61335

Pad

1шт.

46

P61337

Hose

LOWER RADIATOR HOSE

1шт.

47

P61338

Pad

1шт.

48

P61339

Pad

1шт.

49

P61340

Hose

TURBO TO CHARGE AIR COOLER (HOT SIDE)

1шт.

50

P61341

Radiator Hose

TURBO TO CHARGE AIR COOLER (COLD SIDE)

1шт.

51

4069801

Coupling

SUB FOR 4069801 4196259 AND 4712341

1шт.

52

4196260

Seal

NLA, ORDER 4067834

2шт.

53

4067834

Coupling

1шт.

54

4196259

Seal

NLA, ORDER 4712341, SUB FOR TH106966

2шт.

55

28H1497

Bushing

0.493" X 0.675" X 1-1/2"

1шт.

56

T160123

Hose

CHARGE AIR COOLER TO CYLIN DER HEAD INTAKE (COLD SIDE)

1шт.

57

T63018

Isolator

1шт.

58

DH400609

Isolator

( AT66778 NOT USED FOR THIS APPLICATION)

1шт.

59

14M7296

Flange Nut

M10

11шт.

60

14M7400

Lock Nut

M10

2шт.

61

J781020

Bolt

(SUB FOR J781030, THIS APPLICATION)M10 X 20

2шт.

62

19M7784

Screw

M10 X 20

14шт.

65

19M7786

Screw

M10 X 30

32шт.

69

19M7866

Screw

M8 X 20

2шт.

70

19M8499

Cap Screw

M10 X 60

1шт.

71

24H1330

Washer

15/32" X 1-3/8" X 7/64"

10шт.

72

24M7239

Washer

10.700 X 21 X 2.500 mm

7шт.

75

24M7296

Washer

10.500 X 30 X 2.500 mm

62шт.
