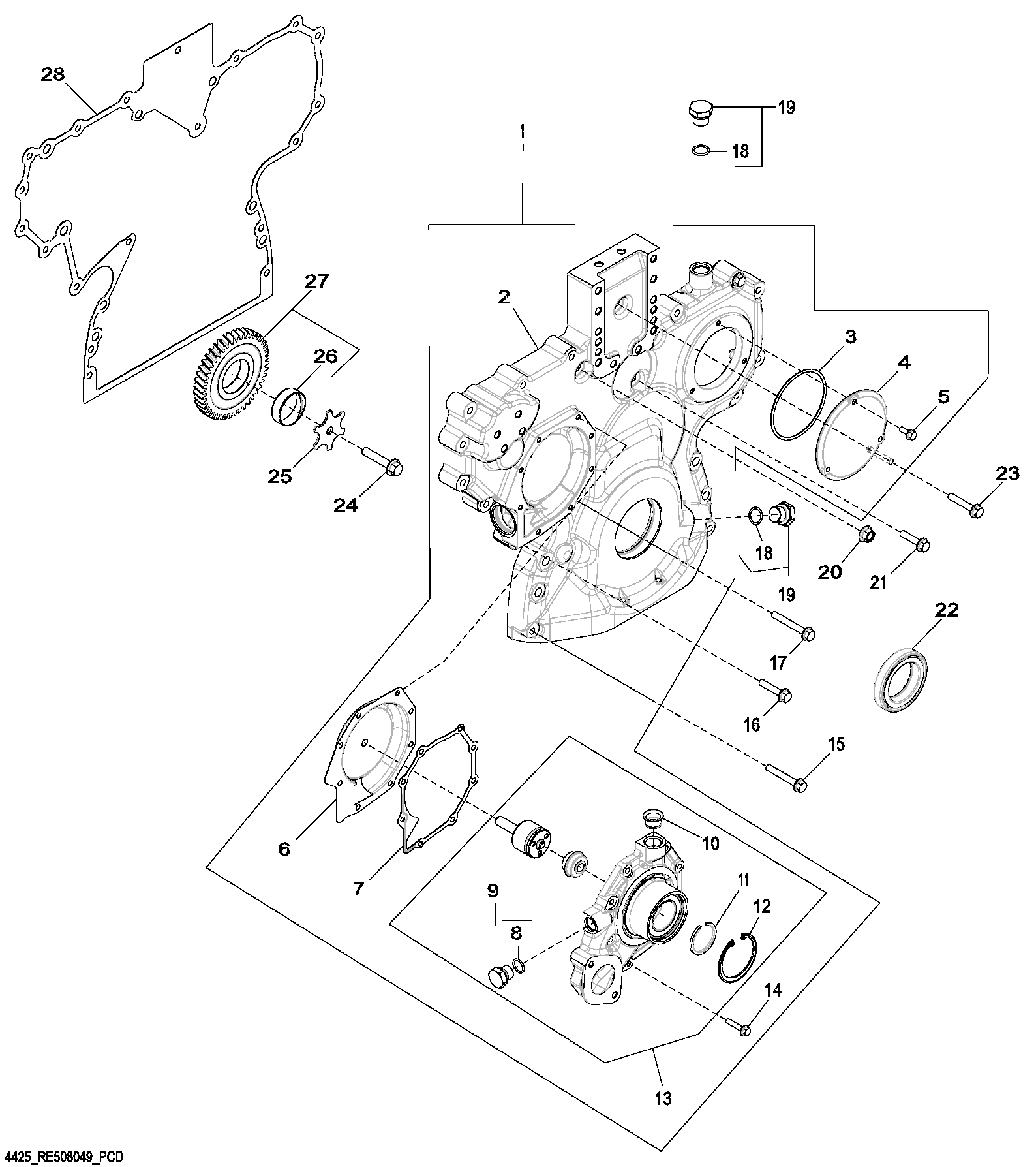

Запчасти John Deere 2054 26 - 4425 Timing Gear Cover 0400 Engine 4045HP051-RE508144 4045HP051

1

RE506382

Cover

USE WITH R523182 AND R 504724; ORDER RE523469

1шт.

RE523469

Cover

USE WITH R520131 AND R 520129; ORDER RE532940

1шт.

RE532940

Cover Kit

USE WITH R520131 AND R5 20129; INCLUDES R504734

1шт.

R504734

O-Ring

Not Illustrated

1шт.

2

R504724

Cover

USE WITH R523182 AND R E506382; ORDER R520129

1шт.

R520129

Cover

USE WITH R520131 AND RE52346 9 OR RE532940; MARKED R520129

1шт.

3

R121424

O-Ring

1шт.

4

R121411

Cover

3шт.

5

19M7775

Screw

M6 X 16

1шт.

6

RE508566

Insert

1шт.

7

R123417

Gasket

1шт.

8

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

9

RE46685

Fitting Plug

1шт.

10

R123226

Seal

1шт.

11

A364R

Snap Ring

1шт.

12

R71228

Ring

8шт.

13

RE505980

Water Pump

ORDER RE546906; MARKED R532562

1шт.

RE546906

Water Pump

1шт.

SE501609

Water Pump Reman

REMAN FOR RE546906

1шт.

14

19M7796

Screw

M6 X 30

10шт.

15

19M7979

Screw

M8 X 55

1шт.

16

19M8317

Screw

M8 X 40

1шт.

17

19M7801

Screw

M8 X 60

2шт.

18

51M7044

O-Ring

17.300 X 2.200 mm

6шт.

19

RE517370

Fitting

1шт.

20

14M7296

Flange Nut

M10

1шт.

21

19M8291

Screw

M8 X 35

1шт.

22

RE538097

Seal

SUB FOR RE516340 OR RE505515

1шт.

23

RE67239

Screw

1шт.

24

19M8966

Screw

M10 X 50

1шт.

25

R131283

Thrust Washer

1шт.

26

R114193

Bushing

1шт.

27

RE56369

Gear

1шт.

28

R545880

Gasket

SUB FOR R520131; USE WITH R520129

1шт.

R523182

Gasket

USE WITH R504724

1шт.
