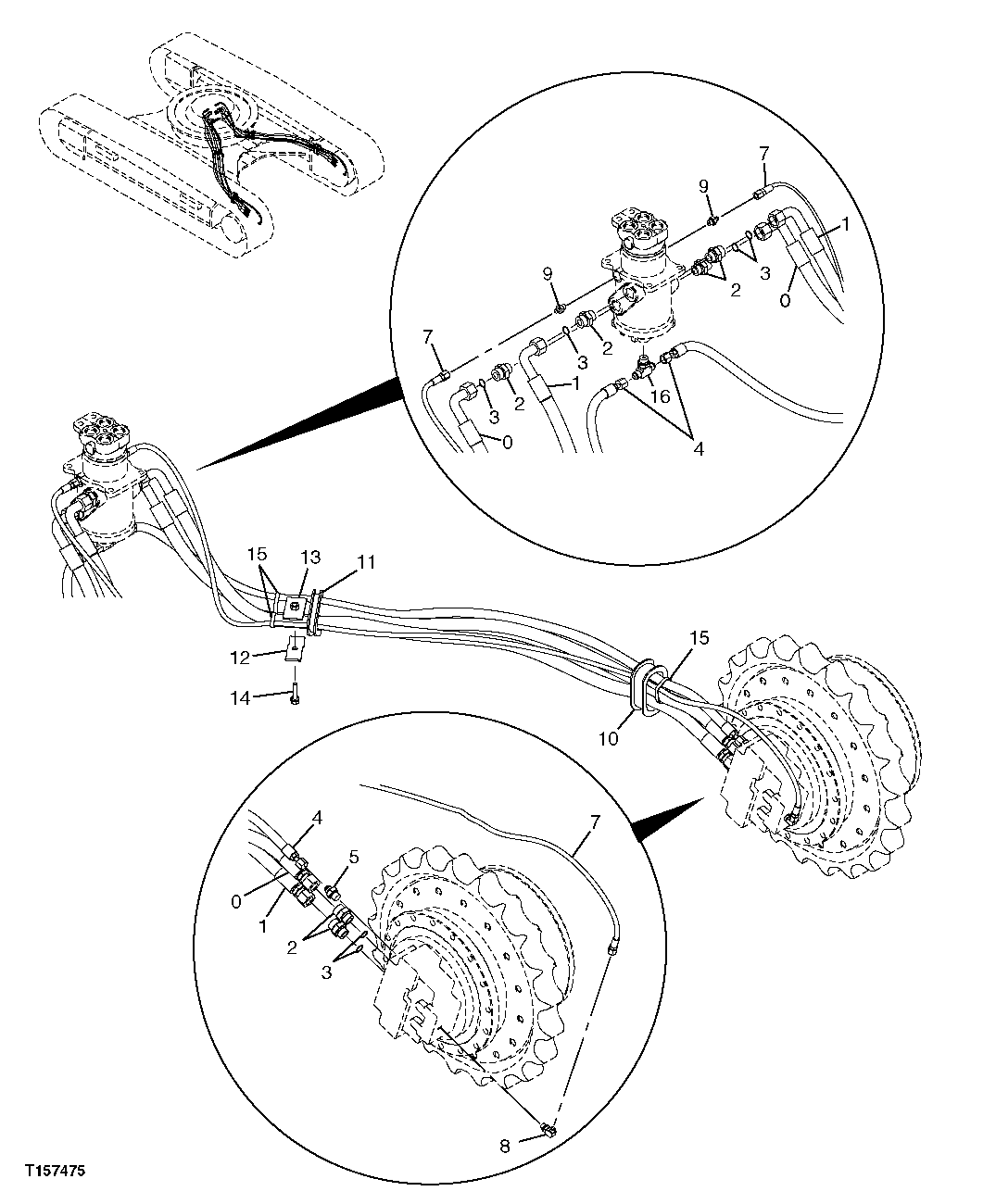

Запчасти John Deere 2054 19 - ROTARY MANIFOLD TO PROPEL MOTOR HOSES 0263 LINES, HOSES & FITTINGS

0

4294429

Hydraulic Hose

(SUB FOR AP34735)

2шт.

1

4294429

Hydraulic Hose

(SUB FOR AP34735)

2шт.

2

A853166

Adapter Fitting

8шт.

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

3

T77858

O-Ring

8шт.

4

4259489

Hydraulic Hose

(SUB FOR AP38204)

1шт.

5

A852144

Adapter Fitting

2шт.

4506418

O-Ring

2шт.

7

4458065

Hydraulic Hose

(SUB FOR AP38205)

1шт.

8

4154670

Elbow Fitting

(SUB FOR A852322, P67984 OR THA852322)

2шт.

M800650

Packing

(SUB FOR 957366)

2шт.

9

A852122

Adapter Fitting

2шт.

M800650

Packing

(SUB FOR 957366)

2шт.

10

4440382

Bushing

2шт.

11

4445210

Bushing

1шт.

12

4202103

Clamp

1шт.

13

9727822

Clamp

1шт.

14

19M7361

Cap Screw

M12 X 50

1шт.

12H301

Lock Washer

1/2"

1шт.

15

R76477

Tie Band

3шт.

16

A852544

Tee Fitting

1шт.

4506418

O-Ring

1шт.
