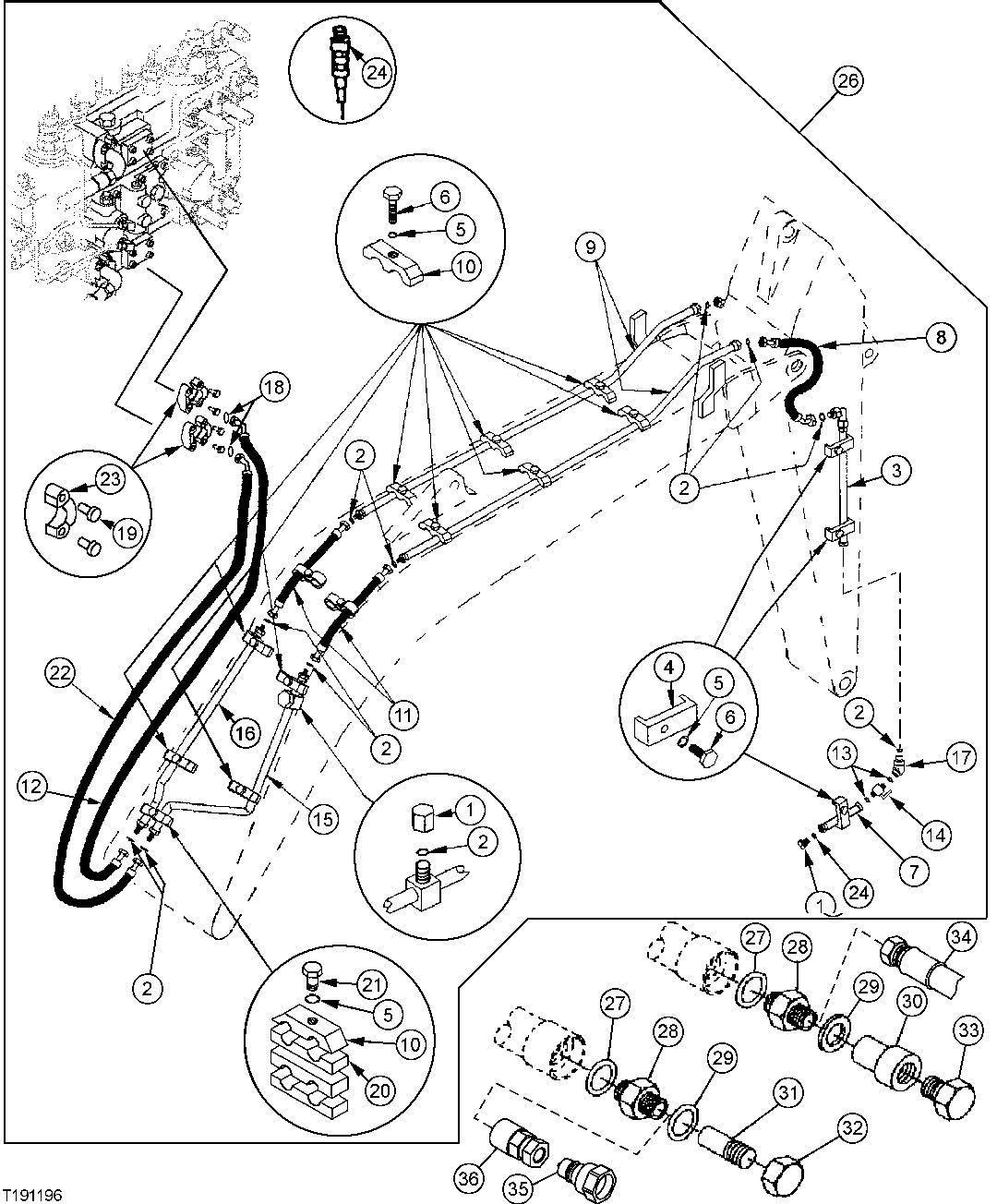

Запчасти John Deere 2054 251 - AUXILIARY HYDRAULIC HOSES AND LINES KIT (BOOM AND ARM)(FIELD) 3363 LINES, HOSES & FITTINGS

1

38H1418

Fitting

2шт.

2

T77858

O-Ring

13шт.

3

AT160177

Oil Tube

2шт.

4

4190126

Clamp

4шт.

5

12H301

Lock Washer

1/2"

17шт.

6

19M7363

Cap Screw

M12 X 60

14шт.

7

38H1215

Adapter Fitting

2шт.

8

AP35235

Hydraulic Hose

(WITH 3.1M LONG ARM)

2шт.

AT160176

Hydraulic Hose

(WITH 2.6M SHORT ARM) Not Included With Kit

2шт.

9

AT160159

Oil Tube

2шт.

10

Clamp

4285723 NLA, ORDER 4189859 Rubber

11шт.

4189859

Clamp

Steel

11шт.

11

AT160161

Hydraulic Hose

2шт.

12

AP35233

Hose

1шт.

13

U12547

O-Ring

4шт.

14

AT197375

Ball Cock Valve

2шт.

15

AP35231

Pipe

1шт.

16

AP35230

Pipe

1шт.

17

38H1431

Elbow Fitting

2шт.

18

T59014

O-Ring

2шт.

19

19M8337

Screw

M10 X 30

8шт.

20

AT318021

Clamp

SUB FOR 4285722

1шт.

21

19M7943

Cap Screw

M12 X 90

1шт.

22

AP35234

Hydraulic Hose

1шт.

23

R29424

Flange Fitting

4шт.

24

9200504

Pressure Relief Valve

2шт.

26

Field Installation Kit

AT19739 NLA, ALSO ORDER AT160 176 Whole Goods Auxiliary Hydra ulic Hoses and Lines 2.6 M Arm

1шт.

27

U12547

O-Ring

2шт.

28

38H1179

Adapter Fitting

ALSO ORDER T76938 1" ORFS

2шт.

38H1215

Adapter Fitting

ALSO ORDER T77858 3/4" ORFS

2шт.

AT83306

Adapter Fitting

1" SAE, MALE

2шт.

R27267

Fitting

3/4" 37 DEGREE

2шт.

T34433

Adapter Fitting

1" 37 DEGREE

2шт.

29

R29936

O-Ring

2шт.

30

AT186111

Quick Coupler

1" FEMALE, SCREW TOGETHER COUPLER

1шт.

Kit

AT189410 NLA

1шт.

31

AT186112

Quick Coupler

1" MALE, SCREW TOGETHER COUPLER

1шт.

Kit

AT189409 NLA

1шт.

32

AT186113

Cap

1шт.

33

AT186114

Plug

1шт.

34

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

35

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

36

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.
