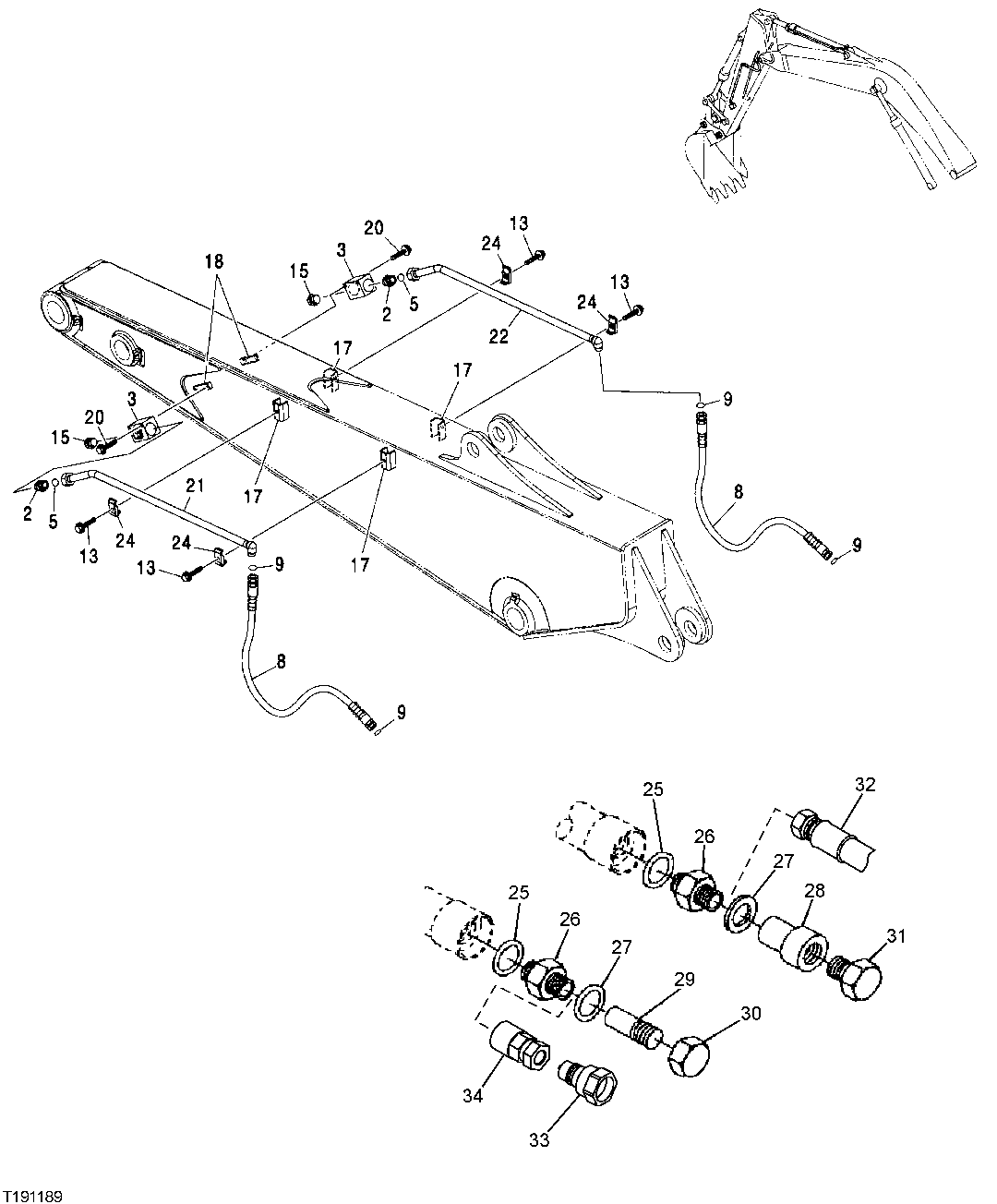

Запчасти John Deere 2054 250 - Arm Hoses And Lines, Factory Auxiliary Plumbing 3363 LINES, HOSES & FITTINGS

2

A853188

Adapter Fitting

2шт.

TH101926

O-Ring

2шт.

3

4447675

Flow Control Hyd. Valve

SUB FOR 4600164

2шт.

5

T76938

O-Ring

2шт.

8

AT215504

Hydraulic Hose

FOR USE WITH 2.60M ARM

2шт.

AT155744

Hydraulic Hose

FOR USE WITH 3.10M ARM

2шт.

9

T77858

O-Ring

4шт.

13

19M8348

Cap Screw

M12 X 65

4шт.

15

A885008

Pipe Plug

SUB FOR 4113926

2шт.

TH101926

O-Ring

2шт.

17

9753840

Bracket

4шт.

18

4434246

Bracket

2шт.

20

19M8081

Cap Screw

M10 X 80

4шт.

21

8084592

Line

1шт.

22

8085737

Line

1шт.

24

4190126

Clamp

4шт.

25

TH101926

O-Ring

2шт.

26

4189535

Adapter Fitting

1" ORFS

2шт.

AT318016

Adapter Fitting

SUB FOR 4189537, 3/4" ORFS

2шт.

AT301151

Fitting

1" SAE, MALE

2шт.

X1216F4OMXS

Adapter Fitting

3/4" 37 DEGREE

2шт.

X16F4OMXS

Adapter Fitting

1" 37 DEGREE

2шт.

AT305641

Fitting

3/4" SAE, MALE

2шт.

27

R29936

O-Ring

2шт.

28

AT186111

Quick Coupler

1" FEMALE, SCREW TOGETHER COUPLER

1шт.

Kit

AT189410 NLA

1шт.

29

AT186112

Quick Coupler

1" MALE, SCREW TOGETHER COUPLER

1шт.

Kit

AT189409 NLA

1шт.

30

AT186113

Cap

1шт.

31

AT186114

Plug

1шт.

32

X1JS782016

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J9782016

Hose Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

33

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

34

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.
