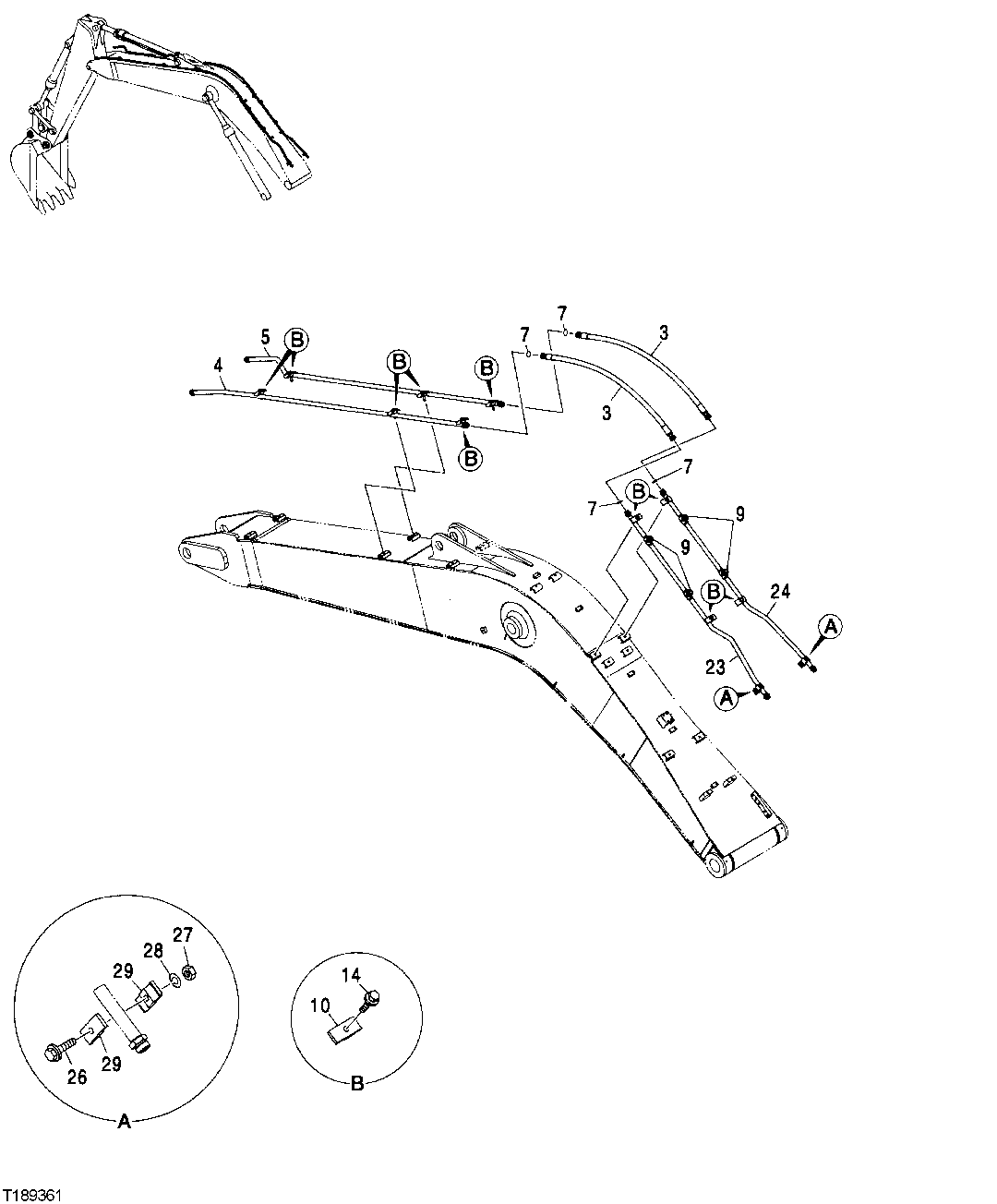

Запчасти John Deere 2054 249 - BOOM HOSES AND LINES (FACTORY INSTALLED AUXILIARY PLUMBING) 3363 LINES, HOSES & FITTINGS

3

AT131293

Hydraulic Hose

2шт.

4

DH800103

Line

SUB FOR 8085735, THIS APPLICATION

1шт.

5

DH800104

Line

SUB FOR 8085736, THIS APPLICATION

1шт.

7

T77858

O-Ring

4шт.

9

4174542

Drain Plug

4шт.

AT318035

O-Ring

SUB FOR 4506424

4шт.

10

Clamp

4285723 NLA; ORDER 4189859 Rubber

10шт.

4189859

Clamp

Steel

10шт.

14

19M7363

Cap Screw

M12 X 60

10шт.

23

9749068

Line

1шт.

24

9749069

Line

1шт.

26

19M8348

Cap Screw

M12 X 65

2шт.

27

14M7275

Nut

M12

2шт.

28

12H301

Lock Washer

1/2"

2шт.

29

Clamp

4285723 NLA; ORDER 4189859 Rubber

4шт.

4189859

Clamp

Steel

4шт.
