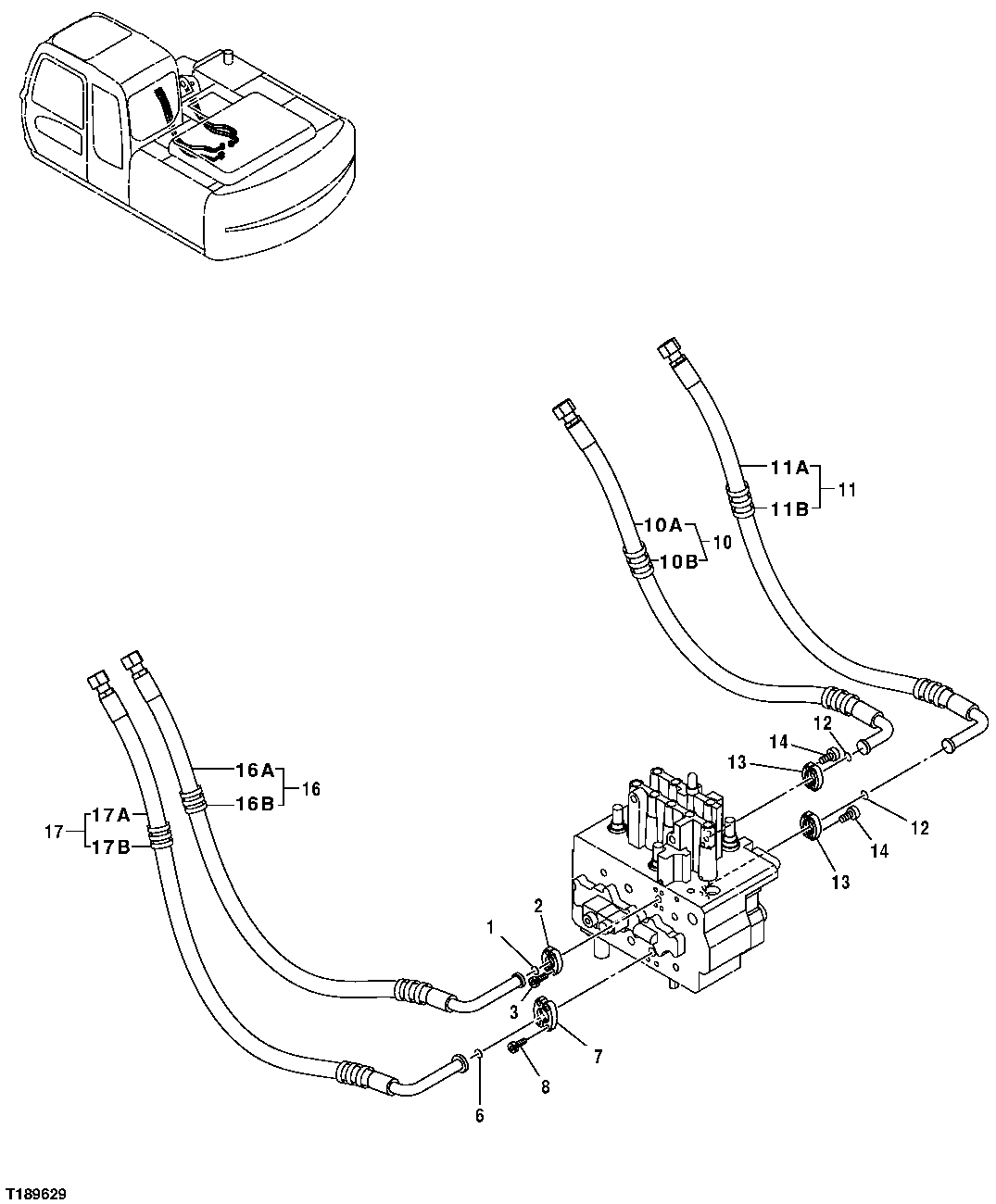

Запчасти John Deere 2054 246 - CONTROL VALVE TO BOOM LINE HOSES (FOR ARM AND BUCKET CYLINDERS) 3363 LINES, HOSES & FITTINGS

1

R69667

O-Ring

1шт.

2

4510173

Fitting

2шт.

3

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

4шт.

6

T59014

O-Ring

1шт.

7

R29424

Flange Fitting

2шт.

8

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

10

Hydraulic Hose

( AP38246 OR 9197392 NLA)

1шт.

10A

4448755

Hydraulic Hose

1шт.

10B

Hose Guard

(MAKE FROM XHG-075, CUT T O LENGTH) ( 4327294 NLA)

ARшт.

11

Hydraulic Hose

( AP38247 OR 9197391 NLA)

1шт.

11A

4448753

Hydraulic Hose

1шт.

11B

Hose Guard

(MAKE FROM XHG-075, CUT T O LENGTH) ( 4327294 NLA)

ARшт.

12

R69667

O-Ring

2шт.

13

4510173

Fitting

4шт.

14

19M7657

Screw

M8 X 25 (SUB FOR J780825)

1шт.

16

Hydraulic Hose

( 9204553 NLA)

1шт.

16A

4452987

Hydraulic Hose

1шт.

16B

Hose Guard

(MAKE FROM XHG-075, CUT T O LENGTH) ( 4327294 NLA)

ARшт.

17

Hydraulic Hose

( 9204554 NLA)

1шт.

17A

4331596

Hydraulic Hose

1шт.

17B

Hose Guard

(MAKE FROM XHG-075, CUT T O LENGTH) ( 4327294 NLA)

ARшт.
