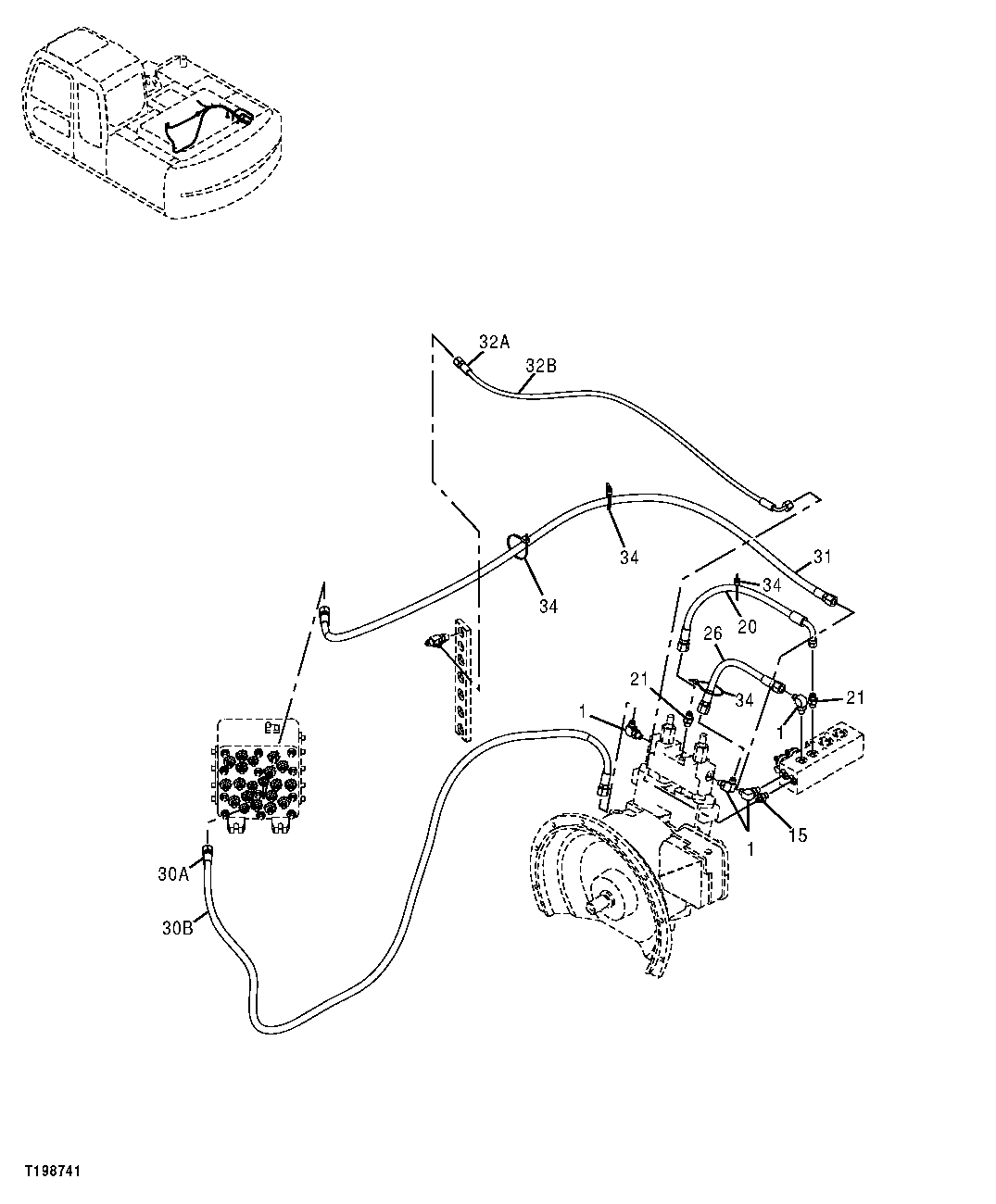

Запчасти John Deere 2054 232 - PILOT HOSES (PUMP REGULATOR TO SOLENOID VALVE, SIGNAL MANIFOLD) 3363 LINES, HOSES & FITTINGS

1

A852323

Elbow Fitting

4шт.

M800650

Packing

SUB FOR 957366

1шт.

15

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

M800650

Packing

SUB FOR 957366

1шт.

20

DH400578

Hydraulic Hose

SUB FOR AP38222

1шт.

21

A852123

Adapter Fitting

2шт.

M800650

Packing

SUB FOR 957366

1шт.

26

DH400580

Hydraulic Hose

SUB FOR AP38223

1шт.

30A

4449272

Hydraulic Hose

SUB FOR AP38224 OR 9204536

1шт.

30B

4327315

Hose Guard

4327293 NLA

3шт.

31

DH900409

Hydraulic Hose

SUB FOR AP38225

1шт.

32A

4437943

Hydraulic Hose

(SUB FOR DH900429, AP38226 OR 9204538 )( 4449273 NOT USED THIS APPLICATION)

1шт.

32B

4327315

Hose Guard

4327293 NLA

1шт.

34

H77698

Tie Band

SUB FOR 4055312

4шт.
