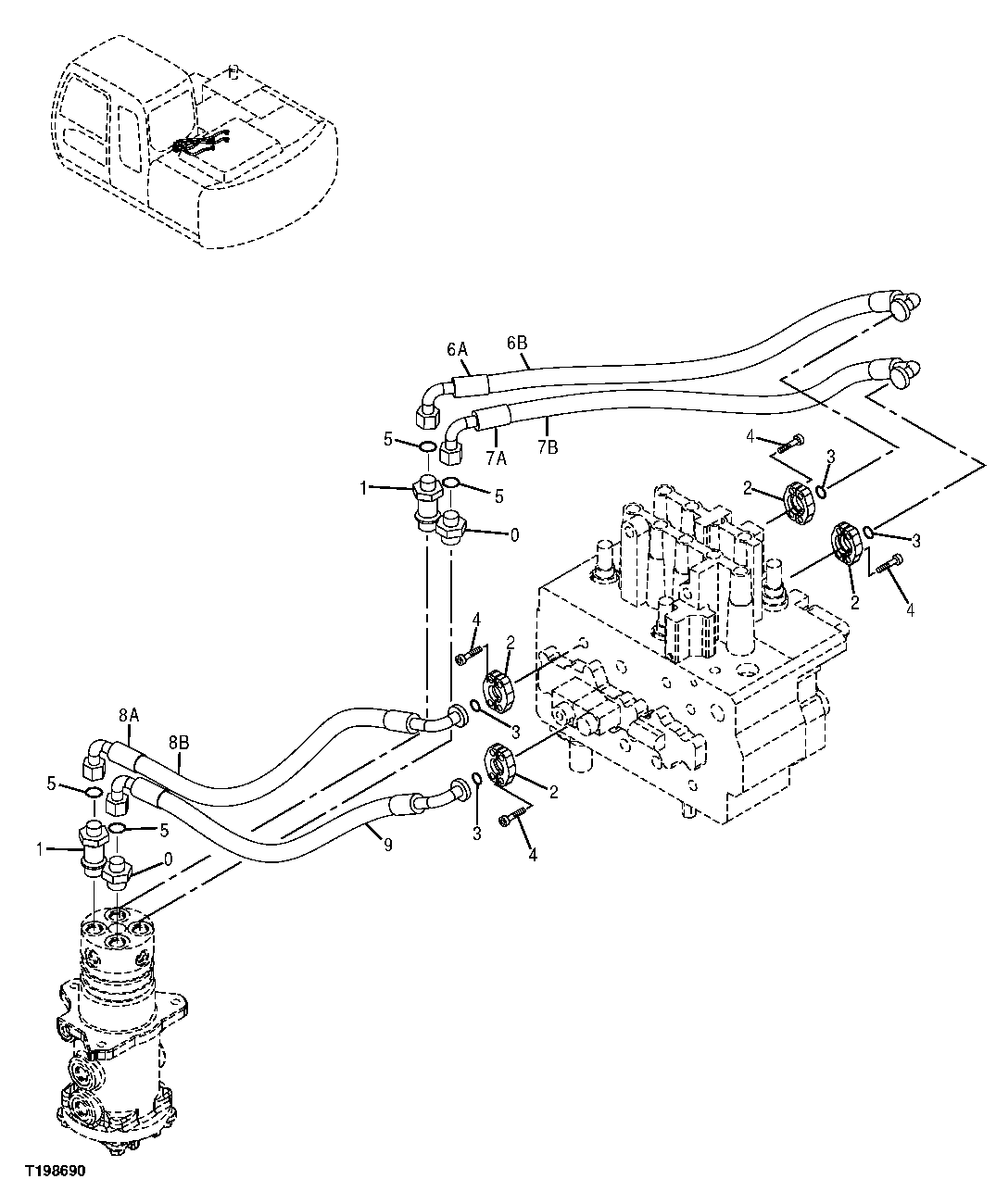

Запчасти John Deere 2054 230 - CONTROL VALVE TO ROTARY MANIFOLD HOSES 3363 LINES, HOSES & FITTINGS

0

A853166

Adapter Fitting

(SUB FOR 4506424)

2шт.

AT318035

O-Ring

1шт.

1

4189539

Adapter Fitting

(SUB FOR AT107393)

2шт.

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

2

TH108341

Flange Fitting

8шт.

3

R69667

O-Ring

4шт.

4

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

16шт.

5

T77858

O-Ring

4шт.

6A

4448251

Hydraulic Hose

(SUB FOR (1) AP38251 OR (1 ) 9196926) (MF XHG-075 CTL)

1шт.

6B

Hose Guard

( 4327294 NLA ) (MF XHG-075 CTL)

1шт.

7A

4448250

Hydraulic Hose

(SUB FOR (1) AP38252 OR (1 ) 9196927) (MF XHG-075 CTL)

1шт.

7B

Hose Guard

( 4327294 NLA) (MF XHG-075 CTL)

1шт.

8A

4458774

Hydraulic Hose

(SUB FOR (1) AP38253 OR (1) 9204656) (MF (2) XHG-075 CTL)

1шт.

8B

Hose Guard

( 4327294 NLA) (MF XHG-075 CTL)

2шт.

9A

4448252

Hydraulic Hose

(SUB FOR (1) AP38254 OR (1) 9196928) (MF XHG-075 CTL)

1шт.

9B

Hose Guard

( 4327294 NLA) (MF XHG-075 CTL)

1шт.
