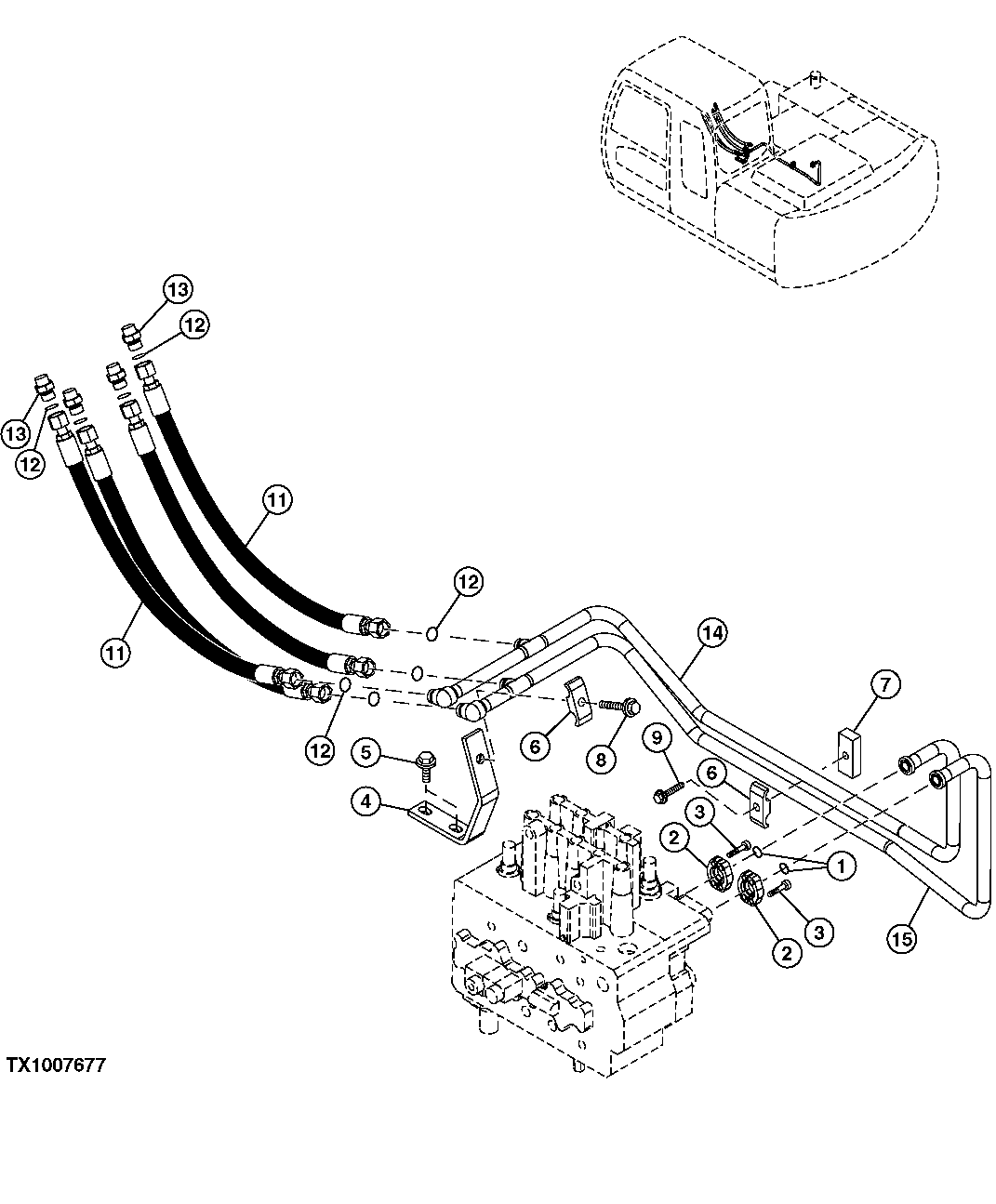

Запчасти John Deere 2054 228 - CONTROL VALVE TO BOOM CYLINDER HOSES AND LINES 3363 LINES, HOSES & FITTINGS

1

R69667

O-Ring

2шт.

2

TH108341

Flange Fitting

4шт.

3

19M7657

Screw

M8 X 25 SUB FOR P61954 OR J780825

8шт.

4

AP38544

Bracket

1шт.

5

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

6

Clamp

4285723 NLA; ORDER 4189859 Rubber

2шт.

4189859

Clamp

Steel

2шт.

7

4369262

Manifold

1шт.

8

19M7363

Cap Screw

M12 X 60

1шт.

12H301

Lock Washer

1/2"

1шт.

9

19M7363

Cap Screw

M12 X 60

1шт.

12H301

Lock Washer

1/2"

1шт.

11

4463611

Hydraulic Hose

SUB FOR AP38245

4шт.

12

T77858

O-Ring

8шт.

13

A853166

Adapter Fitting

4шт.

AT318035

O-Ring

SUB FOR 4506424

1шт.

14

8082645

Line

1шт.

15

8082650

Line

SUB FOR AP38244

1шт.
