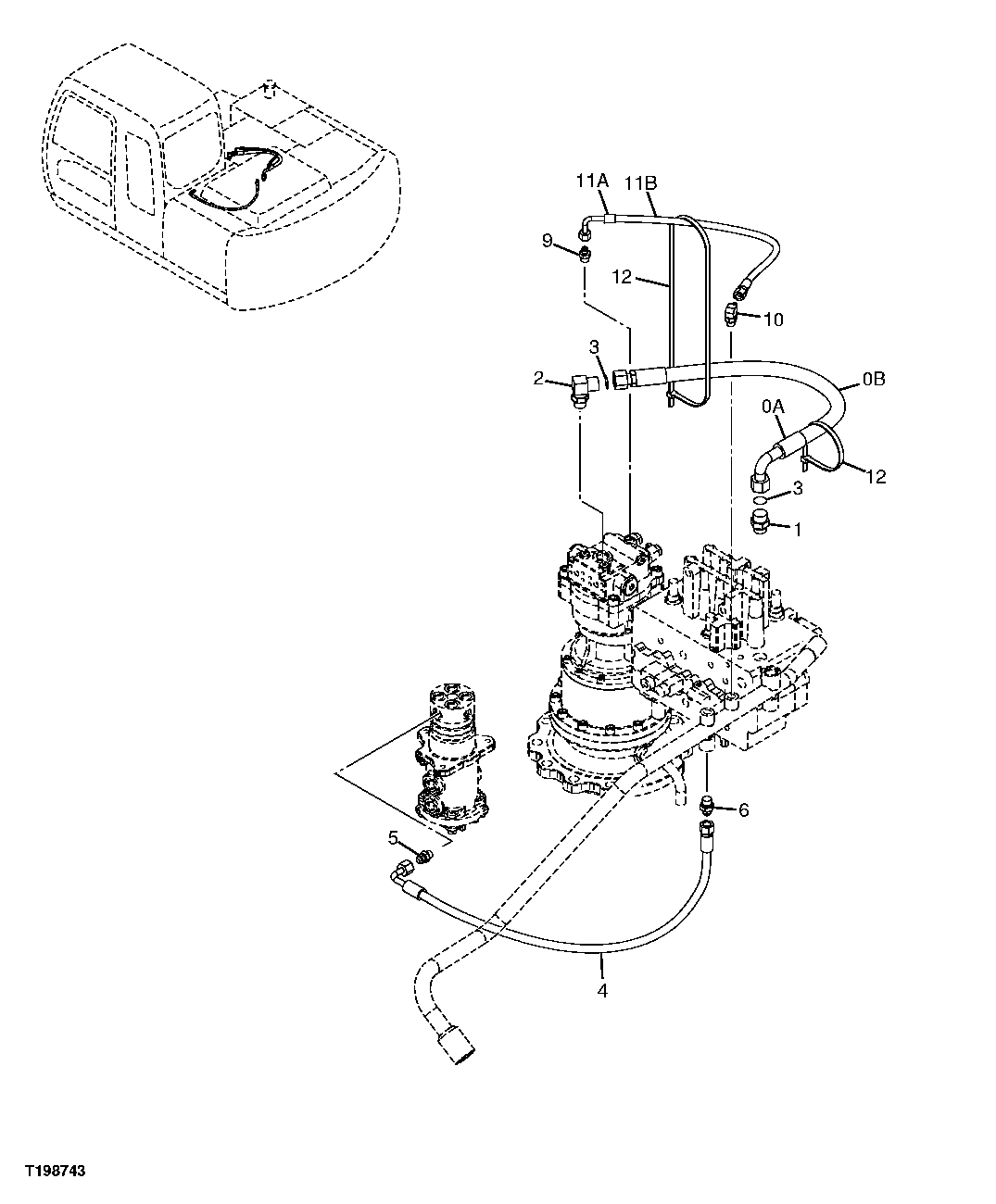

Запчасти John Deere 2054 227 - DRAIN HOSES (SWING MOTOR TO CONTROL VALVE, RETURN LINE) 3363 LINES, HOSES & FITTINGS

0A

4448240

Hydraulic Hose

SUB FOR AP38241 OR 9204551, MAKE FROM XHG-075, BULK MATERIAL, CTL

1шт.

0B

Hose Guard

MAKE FROM XHG-075, BULK MATERI AL, CUT TO LENGTH 4327294 NLA

1шт.

1

A853166

Adapter Fitting

1шт.

AT318035

O-Ring

SUB FOR 4506424

1шт.

2

A853366

Elbow Fitting

1шт.

AT318035

O-Ring

SUB FOR 4506424

1шт.

3

T77858

O-Ring

2шт.

4

4454381

Hydraulic Hose

SUB FOR AP38243

1шт.

5

A852134

Adapter Fitting

1шт.

CH11570

O-Ring

SUB FOR 4509180

1шт.

6

A852144

Adapter Fitting

1шт.

4506418

O-Ring

1шт.

9

A852133

Adapter Fitting

1шт.

CH11570

O-Ring

SUB FOR 4509180

1шт.

10

A852333

Elbow Fitting

1шт.

CH11570

O-Ring

SUB FOR 4509180

1шт.

11A

4437738

Hydraulic Hose

SUB FOR AP38242 OR 9204552

1шт.

11B

4327315

Hose Guard

4327293 NLA

1шт.

12

R76477

Tie Band

2шт.
