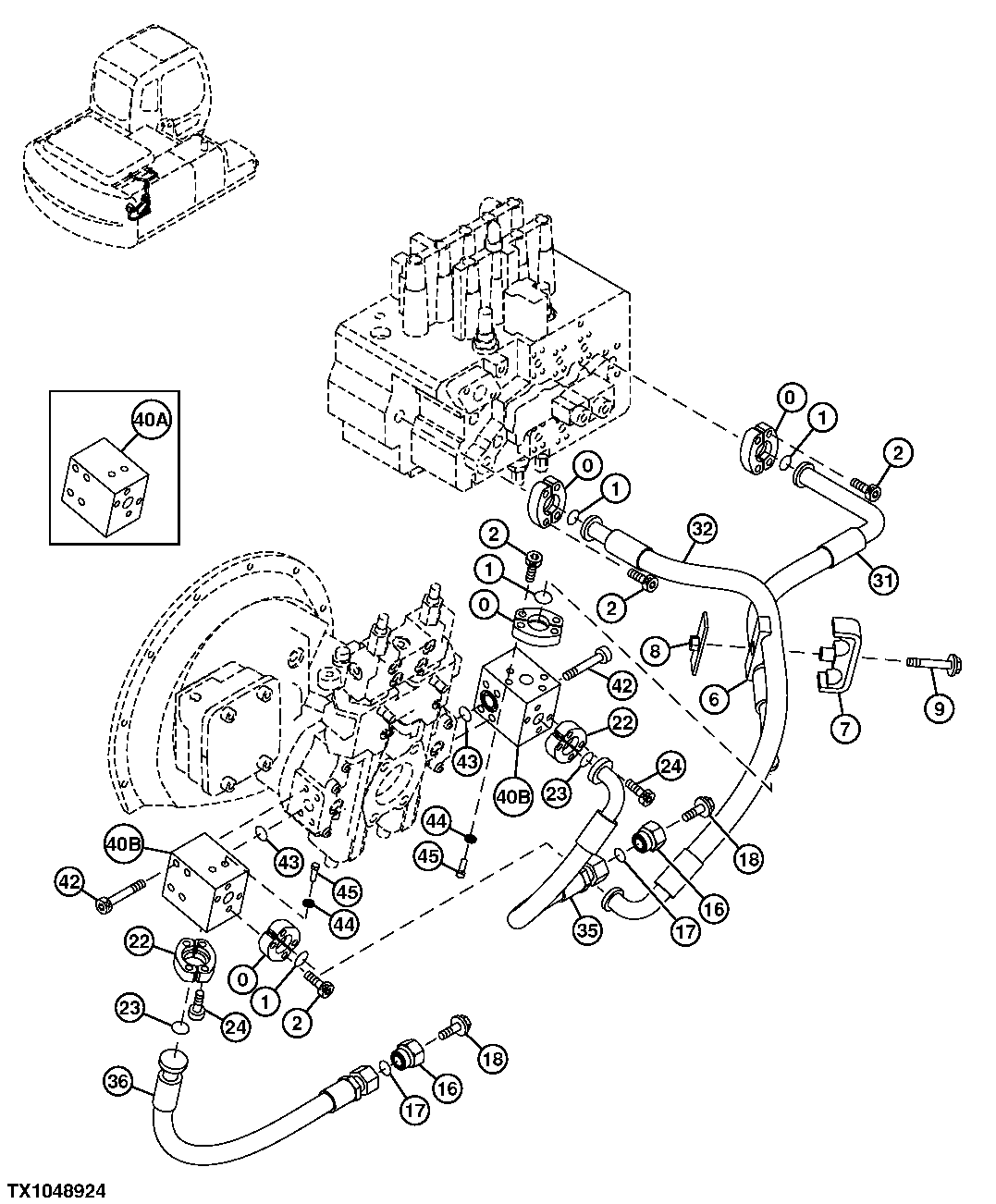

Запчасти John Deere 2054 224 - HYDRAULIC PUMP TO CONTROL VALVE HIGH PRESSURE HOSES 3363 LINES, HOSES & FITTINGS

0

T107446

Flange Fitting

8шт.

1

T59014

O-Ring

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

6

3072291

Isolator

1шт.

7

8061722

Clamp

1шт.

8

9738975

Clamp

1шт.

9

19M8088

Cap Screw

M12 X 75

1шт.

12H301

Lock Washer

1/2"

1шт.

16

4204882

Fitting Plug

2шт.

17

T77858

O-Ring

2шт.

18

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

22

T107446

Flange Fitting

4шт.

23

T59014

O-Ring

2шт.

24

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

31

DH400572

Hydraulic Hose

(SUB FOR AP38256)

1шт.

32

DH400573

Hydraulic Hose

(SUB FOR AP38257)

1шт.

35

4463608

Hydraulic Hose

(SUB FOR AP38258)

1шт.

36

4463609

Hydraulic Hose

(SUB FOR AP38259)

1шт.

40A

Check Valve

( 9218493 NLA)

2шт.

40B

3106731

Adapter

(ALSO ORDER (2) 19M8231 AND (2) 24M7345)

2шт.

42

P68427

Bolt

8шт.

43

TH101300

O-Ring

(SUB FOR J222012)

2шт.

44

24M7345

Washer

13.500 X 24 X 2.500 mm (SUB FOR J901216)

4шт.

45

19M8231

Cap Screw

M12 X 16

4шт.
